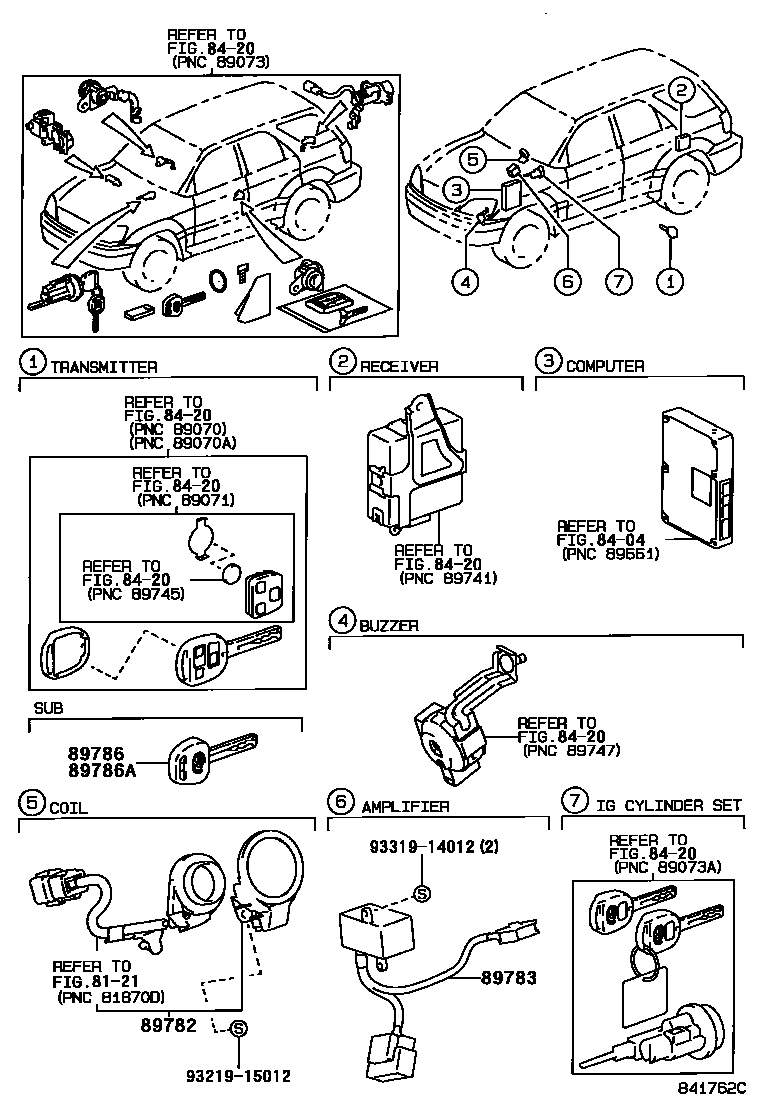

ANTI-THEFT DEVICE

0001 1IMMOBILIZER 0002 1IMMOBILIZER 0003 1THEFT WARNING SYSTEM

8121INTERIOR LAMP

→ Go to FIG 81-21

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89782COIL, TRANSPONDER KEY

main89790-48010iMCU1#199801

89783AMPLIFIER, TRANSPONDER KEY

main89783-48010iMCU1#199801

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-50030iMCU1#199801

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50040iMCU1#199801

9321915012

main93219-15012

9331914012

main93319-14012

9 parts on this diagram · 3 diagrams in section
