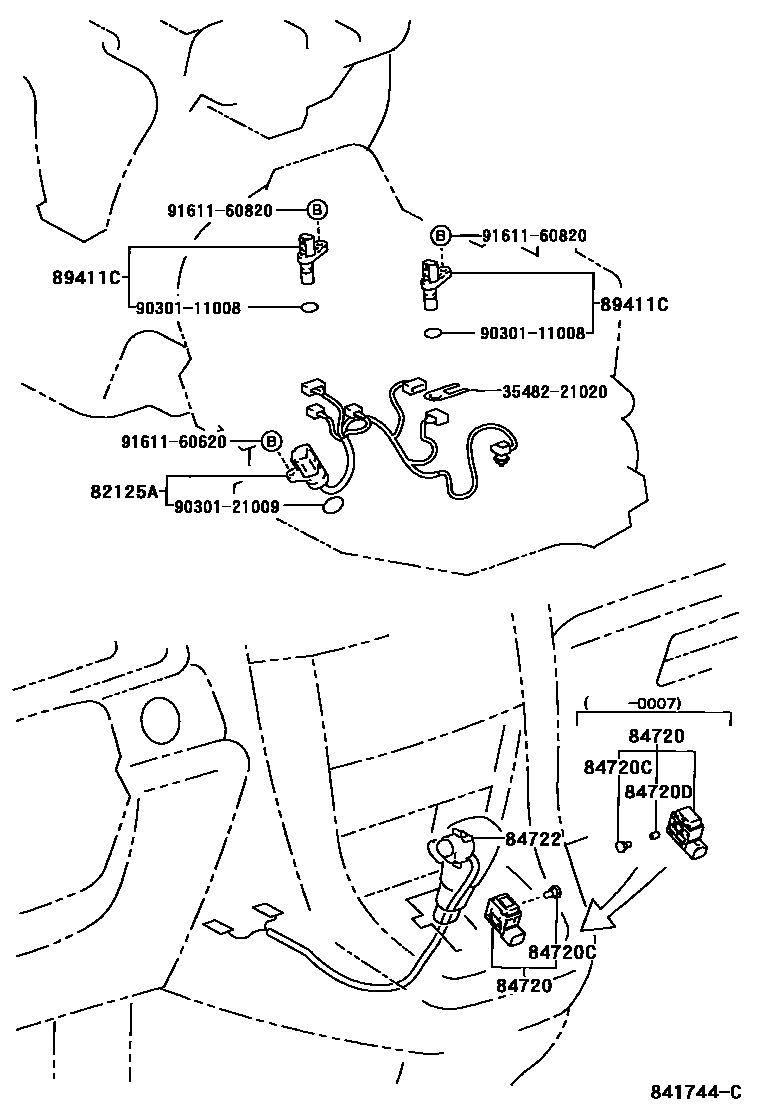

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-21030iMCU1#199801-200111

main82125-28180iMCU1#200111

84720SWITCH ASSY, PATTERN SELECT

main84720-48010iMCU1#200007

main84720-50050iMCU1#199801-200007

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10820iMCU1#199801-200007

14V 0.7W

main90010-01039iMCU1#200007

14V0.91W,W(GREEN CAP

84720DCAP, PATTERN SELECT SWITCH

main84998-10670iMCU1#199801-200007

84722SWITCH, TRANSMISSION CONTROL

main84722-48020-B0iMCU1#199801-199908

SHADOW GRAY,TRIM1#

main84722-48020-E0iMCU1#199801-199908

SANDAL WOOD,TRIM0#

main84722-48030-B0iMCU1#199908-200007

SHADOW GRAY,TRIM1#

main84722-48030-C0iMCU1#200007

BLACK,TRIM2#

main84722-48030-E0iMCU1#199908

SANDAL WOOD,TRIM0#

89411CSENSOR, SPEED

main89411-33010×2iMCU1#199801

TOYOTA

main89413-24010×2iMCU1#199801

AISIN SEIKI

3548221020VALVE, GOVERNOR

main35482-21020

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

9161160820

main91611-60820

11 parts on this diagram · 1 diagram in section
