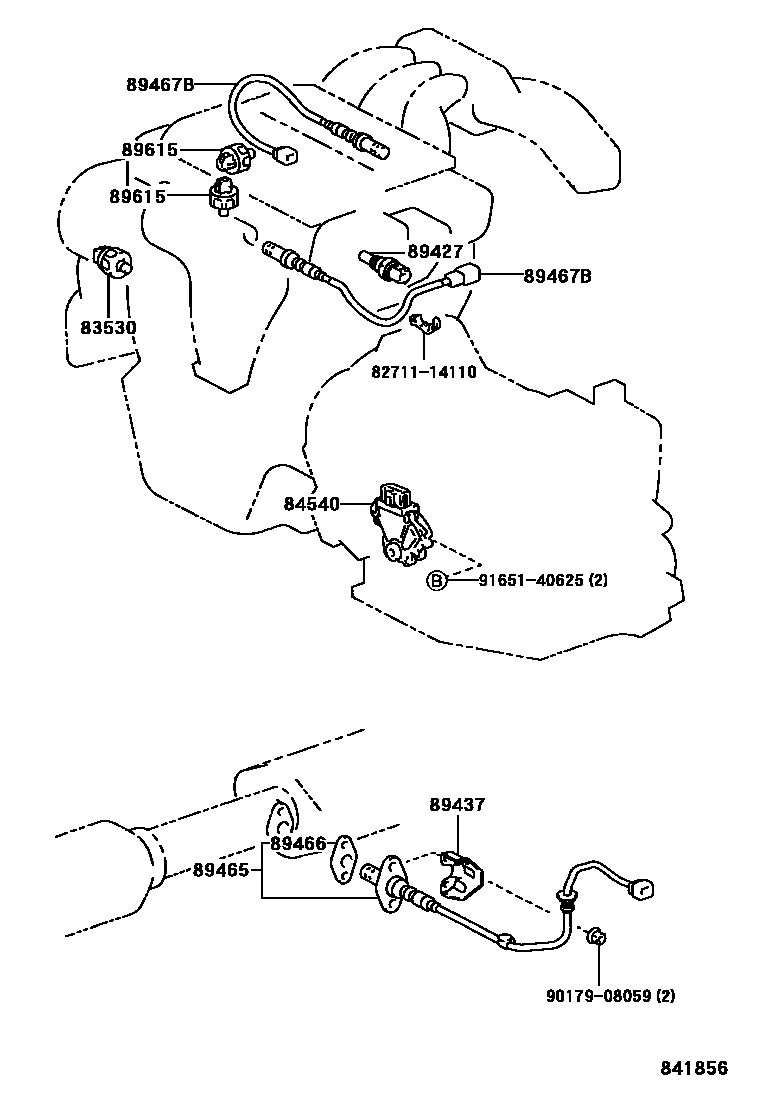

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1IGNITION & COMBINATION SWITCH0006 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iMCU1#200205

(L)

main83530-28020iMCU1#199802

(J),DENSO

main83530-30090iMCU1#199801-199802

sub83530-60020

main83530-60020iMCU1#199802

(J),YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-12200iMCU1#199801-200007

TOKAIRIKA

main84540-12210iMCU1#199801-200007

MATSUSHITA

main84540-32110iMCU1#200007

89427SWITCH, TEMPERATURE DETECT

main89428-41010iMCU1#199801

89437COVER, SENSOR

main89437-48010iMCU1#199801

89465SENSOR, OXYGEN

main89465-49075iMCU1#199801

89466GASKET, OXYGEN SENSOR

main89466-20020iMCU1#199801

89467BSENSOR, AIR FUEL RATIO

main89467-48010iMCU1#199801-199905

sub89467-48011

main89467-48011iMCU1#199905

89615SENSOR, KNOCK CONTROL

main89615-12040iMCU1#199801-199908

main89615-12090iMCU1#199908

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9017908059

main90179-08059

9165140625

main91651-40625

11 parts on this diagram · 6 diagrams in section
