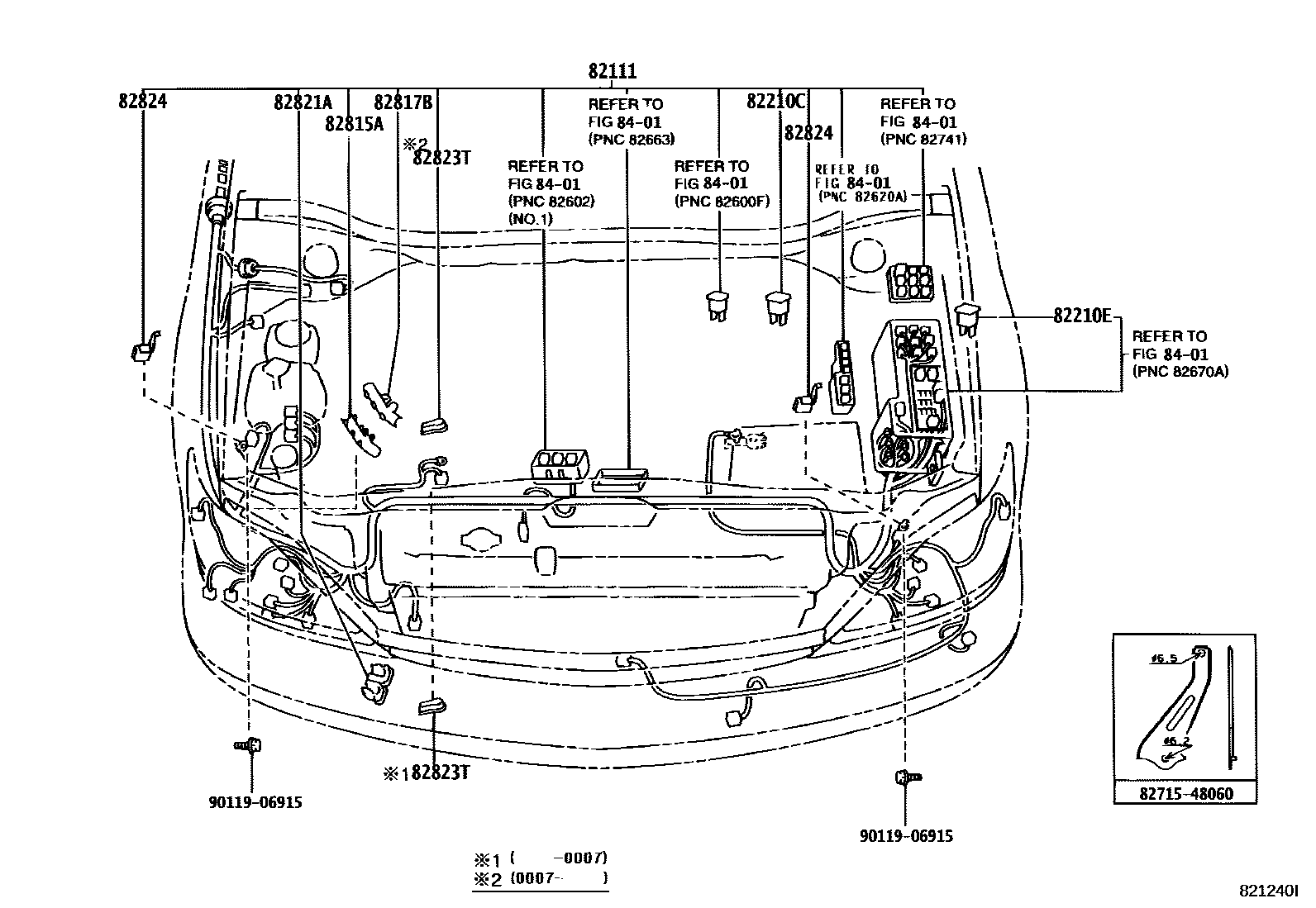

82111WIRE, ENGINE ROOM MAIN

main82111-48060iMCU1#199801-200007

main82111-48070iMCU10199801-200007

W(TRACTION CONTROL)

main82111-48071iMCU1#200007-200208

main82111-48072iMCU1#200208

main82111-48170iMCU1#200007-200208

W(DISCHARGE HEADLAMP)

main82111-48171iMCU1#200208

W(DISCHARGE HEADLAMP)

main82111-48430iMCU15200108-200208

TAIWAN SPEC

main82111-48431iMCU15200208

TAIWAN SPEC

main82111-48440iMCU15200108-200208

TAIWAN SPEC & W(DISCHARGE HEADLAMP)

main82111-48441iMCU15200208

TAIWAN SPEC & W(DISCHARGE HEADLAMP)

82210CFUSIBLE LINK

main90982-08202iMCU1#199801

60A,TERM.:MALE,YEL

main90982-08283iMCU1#199801

30A,TERM.:FEMALE,PNK

main90982-08284iMCU1#199801

40A,TERM.:FEMALE,GRN

main90982-08285iMCU1#199801

50A,FEMALE,RED,32VDC

main90982-08286iMCU1#199801

140A,TERM.:MALE,RBR

82210EFUSIBLE LINK

main90982-08285iMCU1#199801

50A,FEMALE,RED,32VDC

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-48010iMCU1#199801

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2A450iMCU1#199801

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-48010iMCU1#199801

82821ACOVER, CONNECTOR

main82821-33150iMCU1#200001-200007

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iMCU1#199801-200007

main82823-22080iMCU1#200007

82824CONNECTOR, WIRING HARNESS

main82824-48020×2iMCU1#199801

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271548060BRACKET,WIRING HARNESS CLAMP

main82715-48060

9011906915

main90119-06915

12 parts on this diagram · 9 diagrams in section
