INTERIOR LAMP

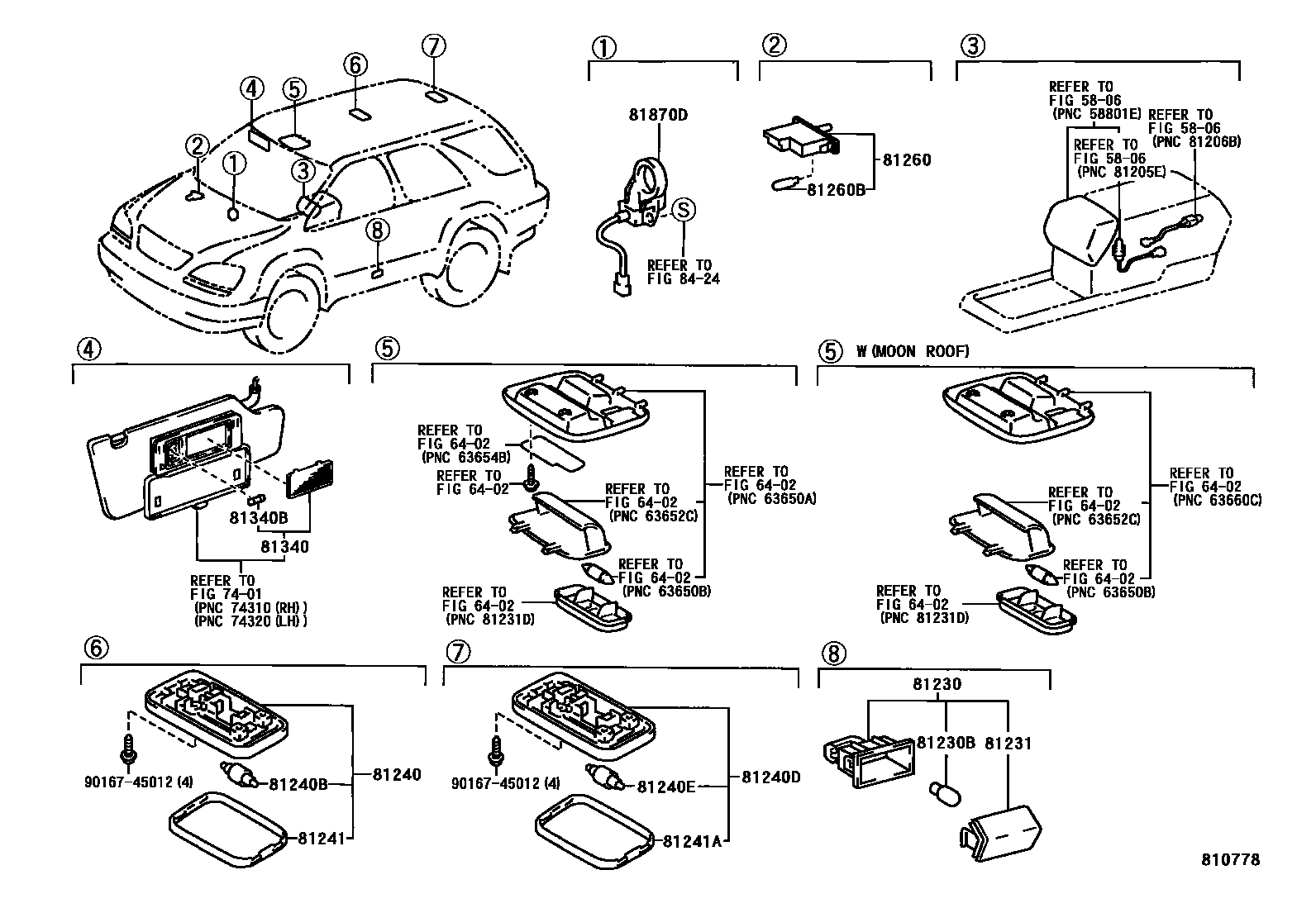

Parts diagram
5806CONSOLE BOX & BRACKET
→ Go to FIG 58-06
6402ROOF HEADLINING & SILENCER PAD
→ Go to FIG 64-02
7401ARMREST & VISOR
→ Go to FIG 74-01
81230LAMP ASSY, COURTESY
main81230-48010×2i199801
81230BBULB(FOR COURTESY LAMP)
main90981-12010×2i199801
12V 5W
81231LENS, COURTESY LAMP
main81231-50050×2i199801
81240LAMP ASSY, ROOM, NO.1
main81240-22120-A1i199801
IVORY,TRIM0#
main81240-22120-B0i199801-199901
MD.GRAY,TRIM1#
main81240-22120-B1i199901-200007
BLUE GRAY,TRIM1#
main81240-22120-B2i200007
LT.GRAY,TRIM2#
81240BBULB, ROOM LAMP, NO.1
main90981-14004i199801
12V 8W
81240DLAMP ASSY, ROOM, NO.2
main81240-22120-A1i199801
IVORY,TRIM0#
main81240-22120-B0i199801-199901
MD.GRAY,TRIM1#
main81240-22120-B1i199901-200007
BLUE GRAY,TRIM1#
main81240-22120-C0i200007
BLACK,TRIM2#
81240EBULB, ROOM LAMP, NO.2
main90981-14004i199801
12V 8W
81241LENS, ROOM LAMP, NO.1
main81241-32031i199801
81241ALENS, ROOM LAMP, NO.2
main81241-32031i199801
81260LAMP ASSY, GLOVE BOX
main81260-22160i199801-200208
main81260-33030i200208
81260BBULB(FOR GLOVE BOX)
main90981-11018i199801
12V 1.2W W/O SOCKET
81340LAMP ASSY, VANITY
main81340-33090-A1i199801-199908
IVORY,TRIM0#,RH
main81340-33090-B1i199901-199908
BLUE GRAY,TRIM1#,RH
main81340-33090-B4i199801-199901
MD.GRAY,TRIM1#,RH
main81340-33130-A1i199908
IVORY,TRIM0#,RH
main81340-33130-B1i199908-200007
BLUE GRAY,TRIM1#,RH
main81340-33130-B4i200007
LT.GRAY,TRIM2#,RH
main81350-33040-A1i199801-199908
IVORY,TRIM0#,LH
main81350-33040-B1i199901-199908
BLUE GRAY,TRIM1#,LH
main81350-33040-B4i199801-199901
MD.GRAY,TRIM1#,LH
main81350-33050-A1i199908
IVORY,TRIM0#,LH
main81350-33050-B1i199908-200007
BLUE GRAY,TRIM1#,LH
main81350-33050-B4i200007
LT.GRAY,TRIM2#,LH
81340BBULB (FOR VANITY LAMP)
main90981-14003×2i199801
12V 1.5W
81870DLAMP ASSY, KEY CYLINDER
main81870-48010i199801
8424ANTI-THEFT DEVICE
→ Go to FIG 84-24
9016745012
main90167-45012

19 parts on this diagram · 1 diagram in section
