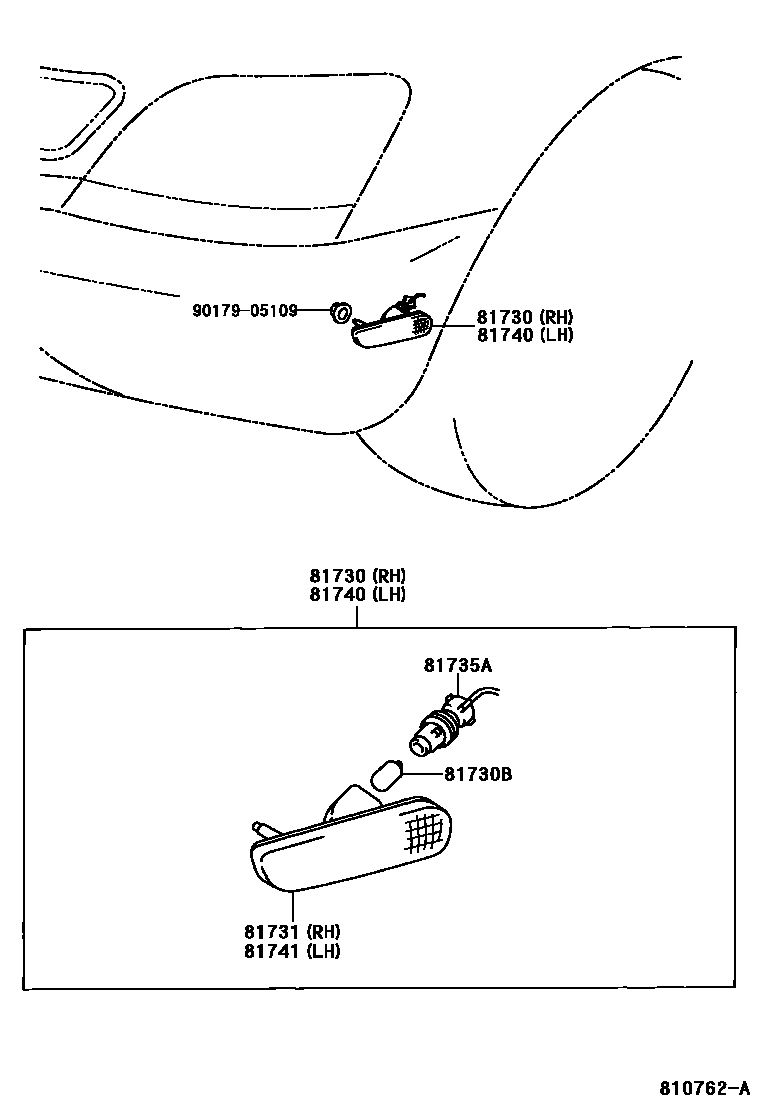

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-48010iMCU1#199801

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-11020×2iMCU1#200007

12V 3.8W

main99132-12050×2iMCU1#199801-200007

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-48010iMCU1#199801

81735ASOCKET & WIRE, SIDE TURN SIGNAL LAMP

main90075-60001×2iMCU1#199801

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-48010iMCU1#199801

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-48010iMCU1#199801

9017905109

main90179-05109

7 parts on this diagram · 1 diagram in section
