HEADLAMP

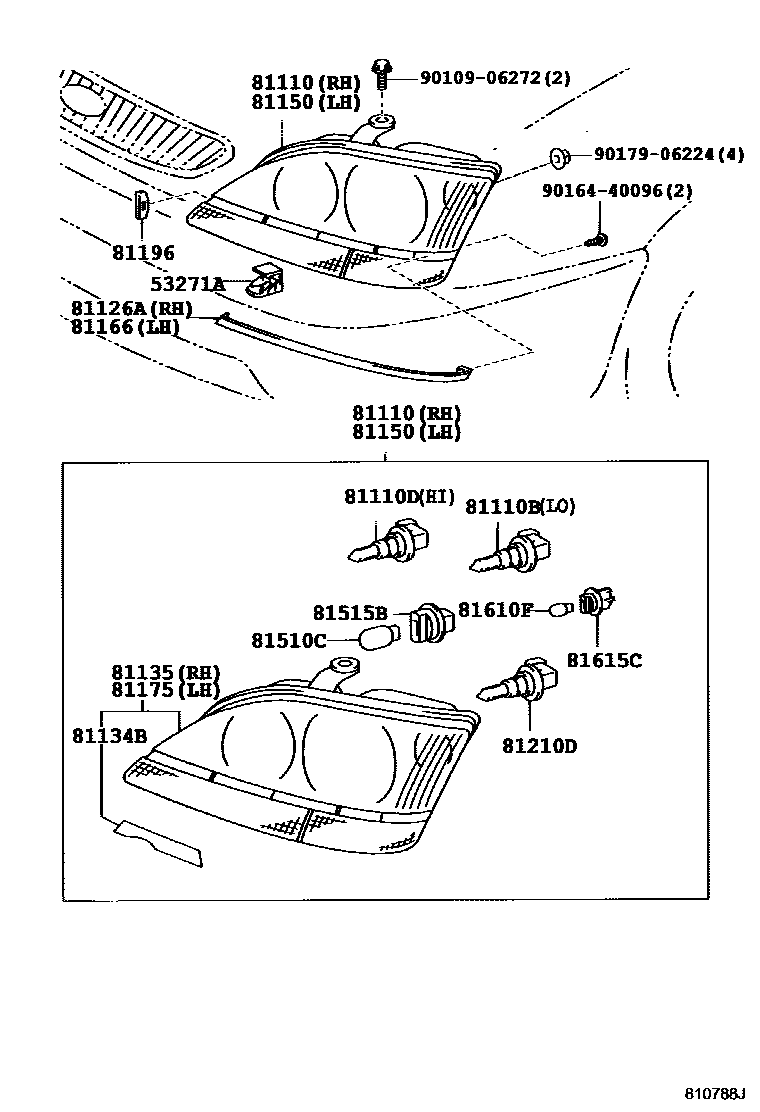

Parts diagram

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2i199801

81110HEADLAMP ASSY, RH

main81110-48030i199801-199805

main81110-48031i199805-200007

main81110-48050i199908-200007

TAIWAN SPEC

main81110-48080i200007

main81110-48110i200007

TAIWAN SPEC

main81110-48130i200007

W(DISCHARGE HEADLAMP)

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2i199801

12V 51W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2i200007

12V 51W,W(DISCHARGE HEADLAMP)

main90080-81041×2i199801

12V 65W

81126APLATE, HEADLAMP, RH

main81126-48010i199801-199805

main81126-48011i199805

81134BTAPE, HEADLAMP PLATE

main81134-48010×2i199801

81135UNIT ASSY, HEADLAMP, RH

main81130-48030i199801-199805

main81130-48031i199805-200007

main81130-48050i199908-200007

TAIWAN SPEC

main81130-48080i200007

main81130-48110i200007

TAIWAN SPEC

main81130-48130i200007

W(DISCHARGE HEADLAMP)

81150HEADLAMP ASSY, LH

main81150-48030i199801-199805

main81150-48031i199805-200007

main81150-48050i199908-200007

TAIWAN SPEC

main81150-48080i200007

main81150-48110i200007

TAIWAN SPEC

main81150-48130i200007

W(DISCHARGE HEADLAMP)

81166PLATE, HEADLAMP, LH

main81166-48010i199801-199805

main81166-48011i199805

81175UNIT ASSY, HEADLAMP, LH

main81170-48030i199801-199805

main81170-48031i199805-200007

main81170-48050i199908-200007

TAIWAN SPEC

main81170-48080i200007

main81170-48110i200007

TAIWAN SPEC

main81170-48130i200007

W(DISCHARGE HEADLAMP)

81196RETAINER, HEADLAMP

main81196-48010×2i199805

81210DBULB, FOG LAMP

main90080-81040×2i199801

12V 51W

main90080-81041×2i200007

12V 65W,W(DISCHARGE HEADLAMP)

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2i199801

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99128×2i199801

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i199801

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60016×2i199908

TAIWAN SPEC

main99159-10228×2i199801-200007

9010906272

main90109-06272

9016440096

main90164-40096

9017906224

main90179-06224

19 parts on this diagram · 3 diagrams in section
