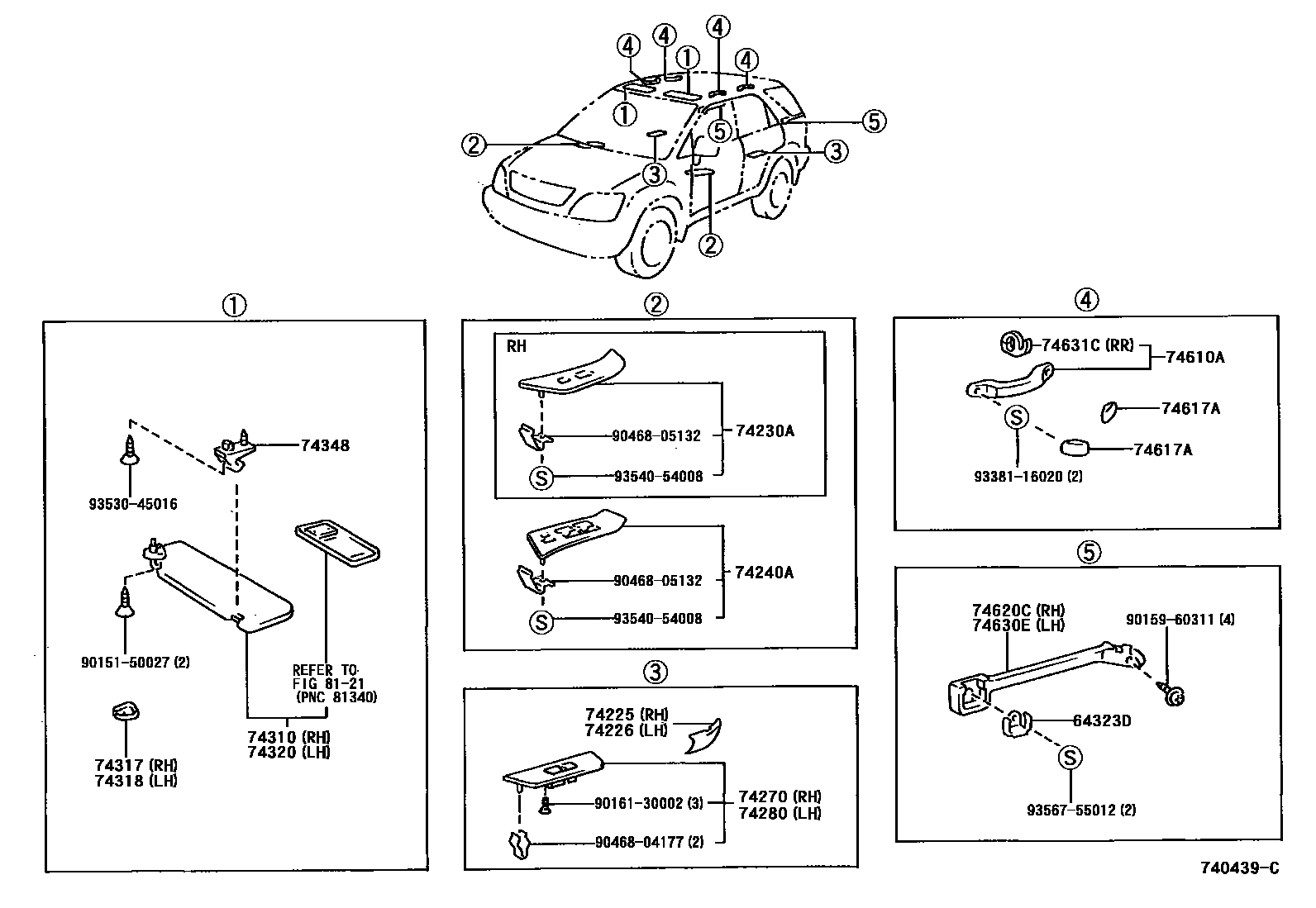

ARMREST & VISOR

64323DCLAMP, ASSIST GRIP

main64323-48020-A0×2iMCU1#199801

IVORY,TRIM0#

main64323-48020-B0×2iMCU1#199801-200007

MD.GRAY,TRIM1#

main64323-48020-C0×2iMCU1#200007

BLACK,TRIM2#

74225CAP, DOOR ARMREST, REAR RH

main74225-48010-B0iMCU1#199801-200007

SHADOW GRAY,TRIM1#

main74225-48010-C0iMCU1#200007

BLACK,TRIM2#

main74225-48010-E0iMCU1#199801

SANDAL WOOD,TRIM0#

74226CAP, DOOR ARMREST, REAR LH

main74226-48010-B0iMCU1#199801-200007

SHADOW GRAY,TRIM1#

main74226-48010-C0iMCU1#200007

BLACK,TRIM2#

main74226-48010-E0iMCU1#199801

SANDAL WOOD,TRIM0#

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-48020iMCU1#199801

WOOD GRAIN

main74230-48050iMCU1#200007

ALUMINUM

main74230-48120iMCU1#200207-200209

COACH EDITION(CANADA) & WOOD GRAIN

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-48020iMCU1#199801

WOOD GRAIN

main74240-48050iMCU1#200007

ALUMINUM

main74240-48120iMCU1#200207-200209

COACH EDITION(CANADA) & WOOD GRAIN

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-48040iMCU1#199801

WOOD GRAIN

main74270-48060iMCU1#200007

ALUMINUM

main74270-48110iMCU1#200207-200209

COACH EDITION(CANADA) & WOOD GRAIN

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-48040iMCU1#199801

WOOD GRAIN

main74280-48060iMCU1#200007

ALUMINUM

main74280-48110iMCU1#200207-200209

COACH EDITION(CANADA) & WOOD GRAIN

74310VISOR ASSY, RH

main74310-48010-A0iMCU1#199801-199901

IVORY,TRIM0#

main74310-48010-A1iMCU1#199901-199908

IVORY,TRIM0#

main74310-48010-B0iMCU1#199801-199901

MD.GRAY,TRIM1#

main74310-48010-B1iMCU1#199901-199908

MEDIUM GRAY,TRIM1#

main74310-48011-A1iMCU1#199908-200007

IVORY,TRIM0#

main74310-48011-B1iMCU1#199908-200007

MEDIUM GRAY,TRIM1#

main74310-48040-A0iMCU1#200007-200208

IVORY,TRIM0#

main74310-48040-B0iMCU1#200007-200208

LT.GRAY,TRIM2#

main74310-48041-A0iMCU1#200208

IVORY,TRIM0#

main74310-48041-B0iMCU1#200208

LT.GRAY,TRIM2#

74317COVER, VISOR BRACKET, RH

main74317-22030-A1iMCU1#199801-200011

IVORY,TRIM0#

main74317-22030-B1iMCU1#199901-200007

BLUE GRAY,TRIM1#

main74317-22030-B2iMCU1#200007-200011

LT.GRAY,TRIM2#

main74317-22030-B3iMCU1#199801-199901

MD.GRAY,TRIM1#

main74317-30010-A1iMCU1#200011

IVORY,TRIM0#

main74317-30010-B0iMCU1#200011

LI.GRAY,TRIM2#

74318COVER, VISOR BRACKET, LH

main74317-22030-A1iMCU1#199801-200011

IVORY,TRIM0#

main74317-22030-B1iMCU1#199901-200007

BLUE GRAY,TRIM1#

main74317-22030-B2iMCU1#200007-200011

LT.GRAY,TRIM2#

main74317-22030-B3iMCU1#199801-199901

MD.GRAY,TRIM1#

main74317-30010-A1iMCU1#200011

IVORY,TRIM0#

main74317-30010-B0iMCU1#200011

LI.GRAY,TRIM2#

74320VISOR ASSY, LH

main74320-48010-A0iMCU1#199801-199901

IVORY,TRIM0#

main74320-48010-A1iMCU1#199901-199908

IVORY,TRIM0#

main74320-48010-B0iMCU1#199801-199901

MD.GRAY,TRIM1#

main74320-48010-B1iMCU1#199901-199908

MEDIUM GRAY,TRIM1#

main74320-48011-A1iMCU1#199908-200007

IVORY,TRIM0#

main74320-48011-B1iMCU1#199908-200007

MEDIUM GRAY,TRIM1#

main74320-48020-A0iMCU1#199801-199901

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main74320-48020-A1iMCU1#199901-199908

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main74320-48020-B0iMCU1#199801-199901

W(GARAGE DOOR OPENER),MD.GRAY,TRIM1#

main74320-48020-B1iMCU1#199901-199908

W(GARAGE DOOR OPENER),MEDIUM GRAY,TRIM1#

main74320-48021-A1iMCU1#199908-200007

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main74320-48021-B1iMCU1#199908-200007

W(GARAGE DOOR OPENER),MEDIUM GRAY,TRIM1#

main74320-48050-A0iMCU1#200007-200208

IVORY,TRIM0#

main74320-48050-B0iMCU1#200007-200208

LT.GRAY,TRIM2#

main74320-48051-A0iMCU1#200208

IVORY,TRIM0#

main74320-48051-B0iMCU1#200208

LT.GRAY,TRIM2#

main74320-48080-A0iMCU1#200007-200208

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main74320-48080-B0iMCU1#200007-200208

W(GARAGE DOOR OPENER),LT.GRAY,TRIM2#

main74320-48081-A0iMCU1#200208

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main74320-48081-B0iMCU1#200208

W(GARAGE DOOR OPENER),LT.GRAY,TRIM2#

74348HOLDER, VISOR

main74348-12030-A0×2iMCU1#200007

IVORY,TRIM0#

main74348-12030-B0×2iMCU1#200007

LT.GRAY,TRIM2#

main74348-30020-A0×2iMCU1#199801-200007

IVORY,TRIM0#

main74348-30020-B1×2iMCU1#199901-200007

BLUE GRAY,TRIM1#

main74348-30020-B3×2iMCU1#199801-199901

MD.GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-48010-A0×3iMCU1#199801-200007

IVORY,TRIM0#

main74610-48010-B0×3iMCU1#199801-199906

MD.GRAY,TRIM1#

main74610-48010-B1×3iMCU1#199906-200007

BLUE GRAY,TRIM1#

main74610-48010-B3×2iMCU1#200007

LT.GRAY,TRIM2#,FRONT

main74610-48020-A0×2iMCU1#200007

IVORY,TRIM0#,REAR

main74610-48020-B0×2iMCU1#200007

LT.GRAY,TRIM2#,REAR

74617APLUG, ASSIST GRIP

main74617-95D00-A0×6iMCU1#199801-200007

IVORY,TRIM0#

main74617-95D00-B0×6iMCU1#199801-199906

MD.GRAY,TRIM1#

main74617-95D00-B2×6iMCU1#199906-200007

BLUE GRAY,TRIM1#

main74617-95D00-B8×8iMCU1#200007

GRAY,TRIM2#

74620CGRIP ASSY, ASSIST, REAR RH

main74620-48010-A0iMCU1#199801

IVORY,TRIM0#

main74620-48010-B0iMCU1#199801-200007

MD.GRAY,TRIM1#

main74620-48010-C0iMCU1#200007

BLACK,TRIM2#

74630EGRIP ASSY, ASSIST, REAR LH

main74630-48010-A0iMCU1#199801

IVORY,TRIM0#

main74630-48010-B0iMCU1#199801-200007

MD.GRAY,TRIM1#

main74630-48010-C0iMCU1#200007

BLACK,TRIM2#

74631CHOOK, COAT

main74631-28010-A0×2iMCU1#200007

IVORY,TRIM0#

main74631-28010-B3×2iMCU1#200007

LT.GRAY,TRIM2#

8121INTERIOR LAMP

→ Go to FIG 81-21

9015150027

main90151-50027

9015960311

main90159-60311

9016130002

main90161-30002

9046804177

main90468-04177

9046805132

main90468-05132

9338116020

main93381-16020

9353045016

main93530-45016

9354054008

main93540-54008

9356755012

main93567-55012

27 parts on this diagram · 1 diagram in section
