REAR SEAT & SEAT TRACK

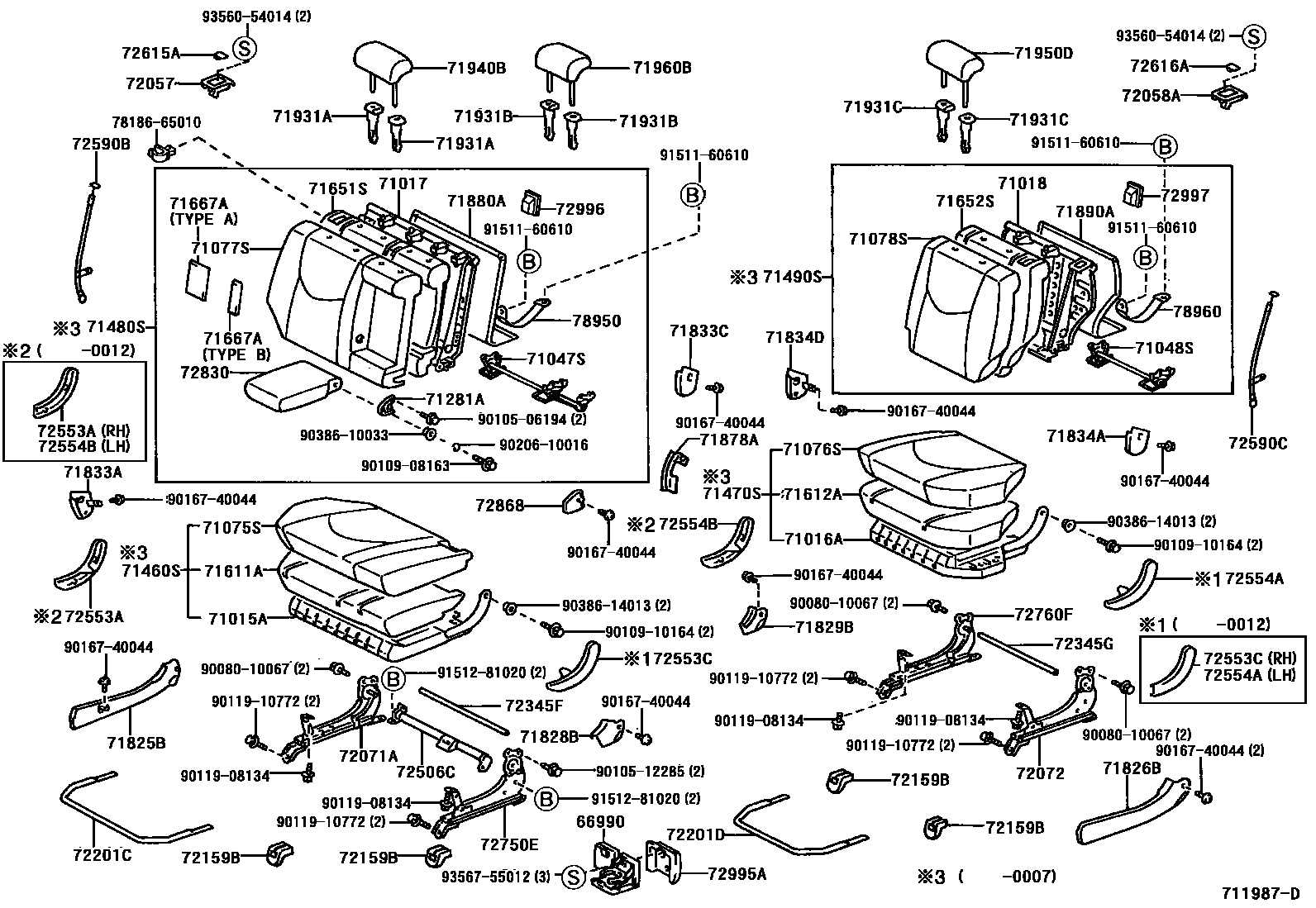

Parts diagram
66990HOLDER ASSY, CUP
main66990-48010-A0i200007
IVORY,TRIM0#
main66990-48010-C0i200007
BLACK,TRIM2#
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-48010i199801-200007
main71015-48030i200007
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-48010i199801-200007
main71016-48020i200007
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-48020i199801-200007
main71017-48040i200007
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-48020i199801-200007
main71018-48040i200007
71047SFRAME SUB-ASSY, REAR SEATBACK, LOWER RH
main71047-48010i200007
71048SFRAME SUB-ASSY, REAR SEATBACK, LOWER LH
main71048-48010i200007
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-48010-A0i199801-200007
IVORY,TRIM0#
main71075-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71075-48020-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
main71075-48080-A0i200007
IVORY,TRIM0#
main71075-48090-A3i200007
LEATHER SEAT,IVORY,TRIM0#
main71075-48090-C3i200007
LEATHER SEAT,BLACK,TRIM2#
main71075-48160-A0i200207-200209
COACH EDITION(CANADA) & LEATHER SEAT,IVORY,TRIM0#
main71075-48160-C0i200103-200106
SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN),BLACK,TRIM22
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-48010-A0i199801-200007
IVORY,TRIM0#
main71076-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71076-48020-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
main71076-48050-A0i200007
IVORY,TRIM0#
main71076-48060-A3i200007
LEATHER SEAT,IVORY,TRIM0#
main71076-48060-C3i200007
LEATHER SEAT,BLACK,TRIM2#
main71076-48120-A0i200207-200209
COACH EDITION(CANADA) & LEATHER SEAT,IVORY,TRIM0#
main71076-48120-C0i200103-200106
SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN),BLACK,TRIM22
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-48010-A0i199801-200007
IVORY,TRIM0#
main71077-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71077-48020-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
main71077-48100-A0i200007
IVORY,TRIM0#
main71077-48110-A1i200007
LEATHER SEAT,IVORY,TRIM0#
main71077-48110-C1i200007
LEATHER SEAT,BLACK,TRIM2#
main71077-48170-A0i200203-200207
COACH EDITION(USA/CANADA) & LEATHER SEAT,IVORY,TRIM0#
main71077-48170-C0i200103-200106
SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN),BLACK,TRIM22
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-48010-A0i199801-200007
IVORY,TRIM0#
main71078-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71078-48020-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
main71078-48100-A0i200007
IVORY,TRIM0#
main71078-48110-A1i200007
LEATHER SEAT,IVORY,TRIM0#
main71078-48110-C1i200007
LEATHER SEAT,BLACK,TRIM2#
main71078-48160-A0i200203-200207
COACH EDITION(USA/CANADA) & LEATHER SEAT,IVORY,TRIM0#
main71078-48160-C0i200103-200106
SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN),BLACK,TRIM22
71281AHINGE, REAR SEAT CENTER ARMREST
main71282-48010i199801
71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)
main71460-48010-A0i199801-200007
IVORY,TRIM0#
main71460-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71460-48020-B1i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
71470SCUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71470-48010-A0i199801-200007
IVORY,TRIM0#
main71470-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71470-48020-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
main71480-48040-A0i199801-200007
IVORY,TRIM0#
main71480-48050-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71480-48050-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71490-48040-A0i199801-200007
IVORY,TRIM0#
main71490-48050-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71490-48050-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
71611APAD, REAR SEAT CUSHION, RH
main71611-48010i199801-200007
main71611-48030i200007
71612APAD, REAR SEAT CUSHION, LH
main71612-48010i199801-200007
main71612-48020i200007
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-48010i199801-200007
main71651-48020i200007
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-48010i199801-200007
main71652-48020i200007
71667APAD, REAR SEATBACK, CENTER A
main71667-48010i199801-200007
TYPE A:REFER TO ILLUSTRATION
main71667-48020i200007
RH
main71668-48010i199801-200007
TYPE B:REFER TO ILLUSTRATION
main71668-48020i200007
LH
71825BMOULDING, REAR SEAT CUSHION, RH
main71825-48010-A0i199801-200007
IVORY,TRIM0#
main71825-48010-B0i199801-200007
MD.GRAY,TRIM1#
main71825-48020-A0i200007
IVORY,TRIM0#
main71825-48020-C0i200007
BLACK,TRIM2#
71826BMOULDING, REAR SEAT CUSHION, LH
main71826-48010-A0i199801-200007
IVORY,TRIM0#
main71826-48010-B0i199801-200007
MD.GRAY,TRIM1#
main71826-48020-A0i200007
IVORY,TRIM0#
main71826-48020-C0i200007
BLACK,TRIM2#
71828BMOULDING, REAR SEAT CUSHION, REAR RH
main71828-48010-A0i199801-200007
IVORY,TRIM0#
main71828-48010-B0i199801-200007
MD.GRAY,TRIM1#
main71828-48020-A0i200007
IVORY,TRIM0#
main71828-48020-C0i200007
BLACK,TRIM2#
71829BMOULDING, REAR SEAT CUSHION, REAR LH
main71829-48010-A0i199801-200007
IVORY,TRIM0#
main71829-48010-B0i199801-200007
MD.GRAY,TRIM1#
main71829-48020-A0i200007
IVORY,TRIM0#
main71829-48020-C0i200007
BLACK,TRIM2#
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
main71833-48010-A0i199801-200007
IVORY,TRIM0#
main71833-48010-B0i199801-199901
MD.GRAY,TRIM1#
main71833-48010-B1i199901-200007
BLUE GRAY,TRIM1#
main71833-48030-A0i200007
IVORY,TRIM0#
main71833-48030-C0i200007
BLACK,TRIM2#
71833CCOVER, REAR SEAT RECLINING, NO.2 RH
main71833-48020-A0i199801-200007
IVORY,TRIM0#
main71833-48020-B0i199801-199901
MD.GRAY,TRIM1#
main71833-48020-B1i199901-200007
BLUE GRAY,TRIM1#
main71833-48040-A0i200007
IVORY,TRIM0#
main71833-48040-C0i200007
BLACK,TRIM2#
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
main71834-48010-A0i199801-200007
IVORY,TRIM0#
main71834-48010-B0i199801-199901
MD.GRAY,TRIM1#
main71834-48010-B1i199901-200007
BLUE GRAY,TRIM1#
main71834-48030-A0i200007
IVORY,TRIM0#
main71834-48030-C0i200007
BLACK,TRIM2#
71834DCOVER, REAR SEAT RECLINING, LH
main71834-48020-A0i199801-200007
IVORY,TRIM0#
main71834-48020-B0i199801-199901
MD.GRAY,TRIM1#
main71834-48020-B1i199901-200007
BLUE GRAY,TRIM1#
main71834-48040-A0i200007
IVORY,TRIM0#
main71834-48040-C0i200007
BLACK,TRIM2#
71878ACOVER, REAR SEAT RECLINING, INNER RH
main71878-48010-A0i200007
IVORY,TRIM0#
main71878-48010-C0i200007
BLACK,TRIM2#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
main71880-48010-A3i199801-200007
IVORY,TRIM0#
main71880-48010-B4i199801-200007
MEDIUM GRAY,TRIM1#
main71880-48030-A1i200007
IVORY,TRIM0#
main71880-48030-C0i200007
BLACK,TRIM2#
71890ACARPET ASSY, REAR SEATBACK BOARD, LH
main71890-48010-A3i199801-200007
IVORY,TRIM0#
main71890-48010-B4i199801-200007
MEDIUM GRAY,TRIM1#
main71890-48020-A1i200007
IVORY,TRIM0#
main71890-48020-C1i200007
BLACK,TRIM2#
71931ASUPPORT, REAR SEAT HEADREST
main71930-44010-A1i199801-200007
W(LOCK),IVORY,TRIM0#
main71930-44010-B0i199801-200007
W(LOCK),BLUE GRAY,TRIM1#
main71931-32020-B2i199801-200007
W/O(LOCK),BLUE GRAY,TRIM1#
main71956-47010-A0i200007
W/O(LOCK),IVORY,TRIM0#
main71956-47010-C0i200007
W/O(LOCK),BLACK,TRIM2#
main71970-47010-A0i200007
W(LOCK),IVORY,TRIM0#
main71970-47010-C0i200007
W(LOCK),BLACK,TRIM2#
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
main71930-44010-A1i199801-200007
W(LOCK),IVORY,TRIM0#
main71930-44010-B0i199801-200007
W(LOCK),BLUE GRAY,TRIM1#
main71931-32020-B2i199801-200007
W/O(LOCK),BLUE GRAY,TRIM1#
main71956-47010-A0i200007
W/O(LOCK),IVORY,TRIM0#
main71956-47010-C0i200007
W/O(LOCK),BLACK,TRIM2#
main71970-47010-A0i200007
W(LOCK),IVORY,TRIM0#
main71970-47010-C0i200007
W(LOCK),BLACK,TRIM2#
71931CSUPPORT ASSY, REAR NO.2 SEAT HEADREST
main71930-44010-A1i199801-200007
W(LOCK),IVORY,TRIM0#
main71930-44010-B0i199801-200007
W(LOCK),BLUE GRAY,TRIM1#
main71931-32020-B2i199801-200007
W/O(LOCK),BLUE GRAY,TRIM1#
main71956-47010-A0i200007
W/O(LOCK),IVORY,TRIM0#
main71956-47010-C0i200007
W/O(LOCK),BLACK,TRIM2#
main71970-47010-A0i200007
W(LOCK),IVORY,TRIM0#
main71970-47010-C0i200007
W(LOCK),BLACK,TRIM2#
71940BHEADREST ASSY, REAR SEAT, RH
main71940-48010-A0i199801-200007
IVORY,TRIM0#
main71940-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71940-48020-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
main71940-48050-A0i200007
IVORY,TRIM0#
main71940-48060-A1i200007
LEATHER SEAT,IVORY,TRIM0#
main71940-48060-C1i200007
LEATHER SEAT,BLACK,TRIM2#
71950DHEADREST ASSY, REAR SEAT, LH
main71940-48010-A0i199801-200007
IVORY,TRIM0#
main71940-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71940-48020-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
main71940-48050-A0i200007
IVORY,TRIM0#
main71940-48060-A1i200007
LEATHER SEAT,IVORY,TRIM0#
main71940-48060-C1i200007
LEATHER SEAT,BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-48010-A1i199801-200007
IVORY,TRIM0#
main71960-48020-A0i199801-200007
LEATHER SEAT,IVORY,TRIM0#
main71960-48020-B0i199801-200007
LEATHER SEAT,MEDIUM GRAY,TRIM1#
main71960-48050-A0i200007
IVORY,TRIM0#
main71960-48060-A1i200007
LEATHER SEAT,IVORY,TRIM0#
main71960-48060-C1i200007
LEATHER SEAT,BLACK,TRIM2#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72057-48010-A0i199801-200007
IVORY,TRIM0#
main72057-48010-B0i199801-200007
MD.GRAY,TRIM1#
main72057-48020-A0i200007
IVORY,TRIM0#
main72057-48020-C0i200007
BLACK,TRIM2#
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
main72057-48010-A0i199801-200007
IVORY,TRIM0#
main72057-48010-B0i199801-200007
MD.GRAY,TRIM1#
main72057-48020-A0i200007
IVORY,TRIM0#
main72057-48020-C0i200007
BLACK,TRIM2#
72071AADJUSTER SUB-ASSY, REAR SEAT RELINING, RH
main72071-48010i199801-200007
main72071-48020i200007
72072ADJUSTER SUB-ASSY, REAR SEAT RECLINING, LH
main72072-48010i199801-200007
main72072-48020i200007
72159BCOVER, REAR SEAT TRACK BRACKET, OUTER
main72159-48010-A0×4i199801
IVORY,TRIM0#
main72159-48010-B0×4i199801-200007
MD.GRAY,TRIM1#
main72159-48010-C4×4i200007
BLACK,TRIM2#
72201CHANDLE SUB-ASSY, SEAT TRACK, RH
main72201-48010i199801
72201DHANDLE SUB-ASSY, SEAT TRACK, LH
main72201-48020i199801
72345FPIPE, RECLINING CONNECTING, RH
main72345-48010i199801-200007
main72345-48040i200007
72345GPIPE, RECLINING CONNECTING, LH
main72345-48020i199801-200007
main72345-48050i200007
72506CROD SUB-ASSY, RECLINING CONNECTING
main72506-48010i199801-200007
main72506-48030i200007
72553APROTECTOR, RECLINING COVER, RH
main72553-48010-A0i199801-200006
IVORY,TRIM0#
main72553-48010-B0i199801-200006
MD.GRAY,TRIM1#
main72553-48040-A0i200012
IVORY,TRIM0#
main72553-48040-C0i200012
BLACK,TRIM2#
main72554-48020-B0i200006-200007
MD.GRAY,TRIM1#
main72554-48030-A0i200007-200012
IVORY,TRIM0#
main72554-48030-A1i200006-200007
IVORY,TRIM0#
main72554-48030-C0i200007-200012
BLACK,TRIM2#
72553CPROTECTOR, RECLINING COVER, RH
main72553-48020-A0i199801-200007
IVORY,TRIM0#
main72553-48020-B0i199801-200006
MD.GRAY,TRIM1#
main72553-48030-A0i200007-200012
IVORY,TRIM0#
main72553-48030-C0i200007-200012
BLACK,TRIM2#
main72554-48040-A0i200012
IVORY,TRIM0#
main72554-48040-C0i200012
BLACK,TRIM2#
72554APROTECTOR, RECLINING COVER, LH
main72553-48020-B0i200006-200007
MD.GRAY,TRIM1#
main72553-48030-A0i200007-200012
IVORY,TRIM0#
main72553-48030-A1i200006-200007
IVORY,TRIM0#
main72553-48030-C0i200007-200012
BLACK,TRIM2#
main72554-48010-A0i199801-200006
IVORY,TRIM0#
main72554-48040-A0i200012
IVORY,TRIM0#
main72554-48040-C0i200012
BLACK,TRIM2#
72554BPROTECTOR, RECLINING COVER, LH
main72553-48040-A0i200012
IVORY,TRIM0#
main72553-48040-C0i200012
BLACK,TRIM2#
main72554-48020-B0i199801-200007
MD.GRAY,TRIM1#
main72554-48030-A0i200007-200012
IVORY,TRIM0#
main72554-48030-C0i200007-200012
BLACK,TRIM2#
72590BCABLE ASSY, RECLINING REMOTE CONTROL
main72590-48010i199801-200007
main72590-48030i200007
72590CCABLE ASSY, RECLINING REMOTE CONTROL
main72590-48020i199801-200007
main72590-48040i200007
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-48010-A0i199801
IVORY,TRIM0#
main72615-48010-B0i199801-200007
MD.GRAY,TRIM1#
main72615-48010-C4i200007
BLACK,TRIM2#
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
main72615-48010-A0i199801
IVORY,TRIM0#
main72615-48010-B0i199801-200007
MD.GRAY,TRIM1#
main72615-48010-C4i200007
BLACK,TRIM2#
72750EADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH
main72073-48010i199801-200007
main72073-48020i200007
72760FADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH
main72074-48010i199801-200007
main72074-48020i200007
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-48010-A0i199801-200005
IVORY,TRIM0#
main72830-48020-A0i199801-200005
LEATHER SEAT,IVORY,TRIM0#
main72830-48020-B0i199801-200005
LEATHER SEAT,MEDIUM GRAY,TRIM1#
main72830-48050i200005-200007
main72830-48050-A0i200007
IVORY,TRIM0#
main72830-48060-A1i200007
LEATHER SEAT,IVORY,TRIM0#
main72830-48060-C1i200007
LEATHER SEAT,BLACK,TRIM2#
main72830-48110i200005-200007
LEATHER SEAT
72868COVER, CENTER ARMREST HINGE, RH
main72868-48010-A0i199801
IVORY,TRIM0#
main72868-48010-B0i199801-200007
MD.GRAY,TRIM1#
main72868-48010-C4i200007
BLACK,TRIM2#
72995ACOVER, REAR SEAT
main72995-48030-A0i200007
IVORY,TRIM0#
main72995-48030-C0i200007
BLACK,TRIM2#
72996COVER, REAR SEATBACK, RH
main72996-48020-A0×2i200007
IVORY,TRIM0#
main72996-48020-C0×2i200007
BLACK,TRIM2#
72997COVER, REAR SEATBACK, LH
main72996-48020-A0×2i200007
IVORY,TRIM0#
main72996-48020-C0×2i200007
BLACK,TRIM2#
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
main78950-48010i199801
78960BAND ASSY, FOLD SEAT STOPPER, NO.2
main78950-48010i199801
7818665010SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
main78186-65010
9008010067
main90080-10067
9010506194
main90105-06194
9010512285
main90105-12285
9010908163
main90109-08163
9010910164
main90109-10164
9011908134
main90119-08134
9011910772
main90119-10772
9016740044
main90167-40044
9020610016
main90206-10016
9038610033
main90386-10033
9038614013
main90386-14013
9151160610
main91511-60610
9151281020
main91512-81020
9356054014
main93560-54014
9356755012
main93567-55012

81 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
