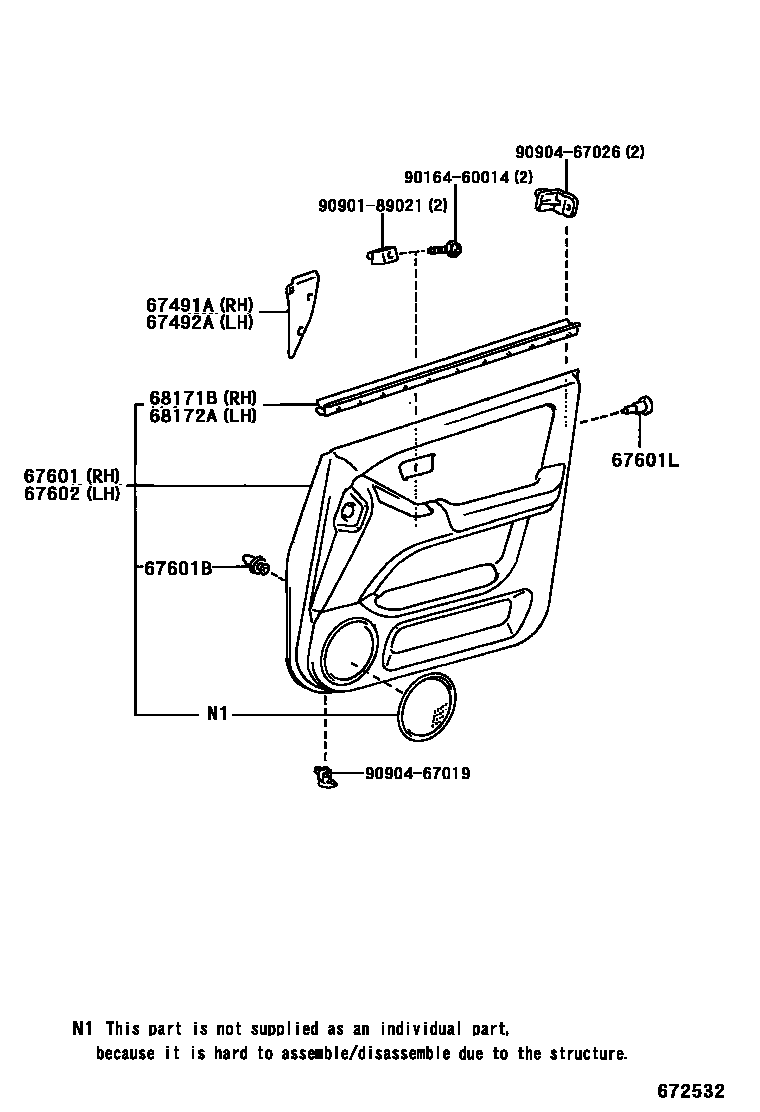

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-48010iMCU1#199801

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-48010iMCU1#199801

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-48010-A0iMCU1#200007

IVORY,TRIM0#

main67610-48010-E0iMCU1#199801-200007

SANDAL WOOD,TRIM0#

main67610-48080-A0iMCU1#200007

LEATHER,IVORY,TRIM0#

main67610-48080-B0iMCU1#199801-200007

LEATHER,SHADOW GRAY,TRIM1#

main67610-48080-C2iMCU1#200007

LEATHER,BLACK,TRIM2#

main67610-48080-E0iMCU1#199801-200007

LEATHER,SANDAL WOOD,TRIM0#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main67771-12050×8iMCU1#199801-200007

main67771-33020×4iMCU1#199807

YELLOW GREEN

67601LCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-22×6iMCU1#200007

BLACK,TRIM2#

main90467-07066-A0×6iMCU1#199801

IVORY,TRIM0#

main90467-07066-P2×6iMCU1#199801-200007

MD.GRAY,TRIM1#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-48010-A0iMCU1#200007

IVORY,TRIM0#

main67620-48010-E0iMCU1#199801-200007

SANDAL WOOD,TRIM0#

main67620-48080-A0iMCU1#200007

LEATHER,IVORY,TRIM0#

main67620-48080-B0iMCU1#199801-200007

LEATHER,SHADOW GRAY,TRIM1#

main67620-48080-C2iMCU1#200007

LEATHER,BLACK,TRIM2#

main67620-48080-E0iMCU1#199801-200007

LEATHER,SANDAL WOOD,TRIM0#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-48010iMCU1#199801

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-48010iMCU1#199801

9016460014

main90164-60014

9090189021

main90901-89021

9090467019

main90904-67019

9090467026

main90904-67026

12 parts on this diagram · 3 diagrams in section
