ROOF HEADLINING & SILENCER PAD

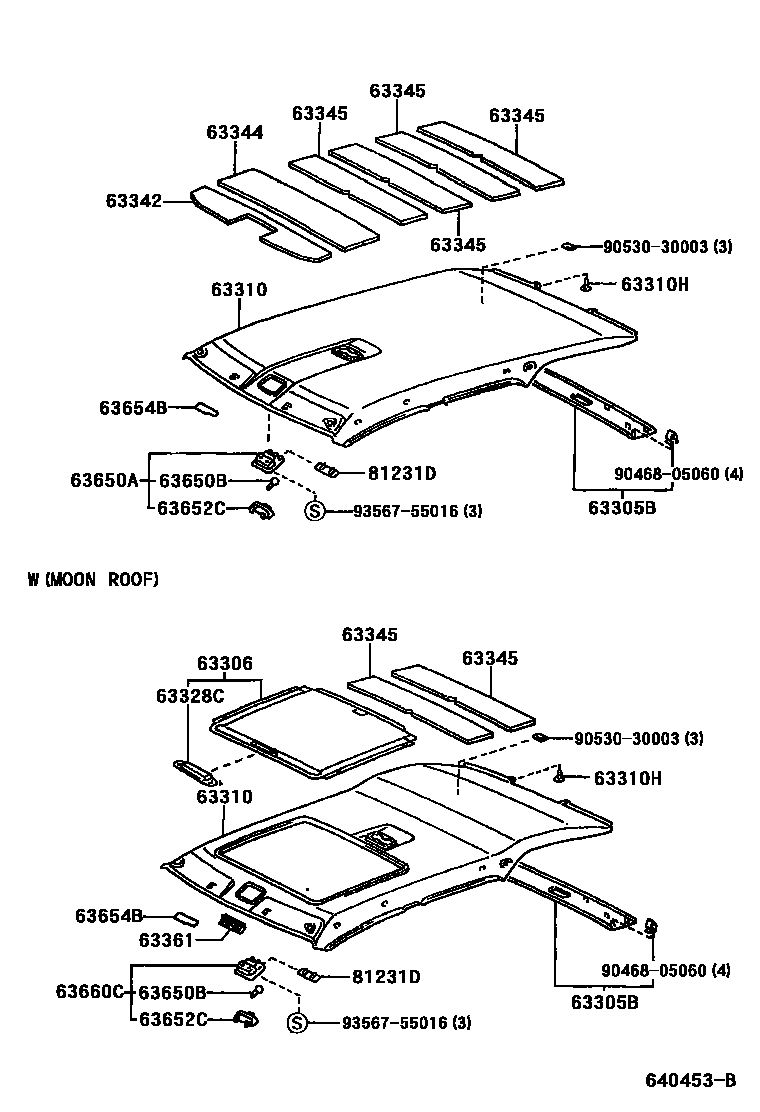

Parts diagram

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-48010-A0i199801

IVORY,TRIM0#

main63305-48010-B0i199801-200007

MD.GRAY,TRIM1#

main63305-48010-C0i200007

BLACK,TRIM2#

63306TRIM SUB-ASSY, SUNSHADE

main63306-48010-A0i199801-199901

IVORY,TRIM0#

main63306-48010-A1i199901-200007

IVORY,TRIM0#

main63306-48010-A2i200007

IVORY,TRIM0#

main63306-48010-B1i199801-199901

MEDIUM GRAY,TRIM1#

main63306-48010-B2i199901-200007

MEDIUM GRAY,TRIM1#

main63306-48010-B3i200007

LT.GRAY,TRIM2#

63310HEADLINING ASSY, ROOF

main63310-48020-A0i199801-200007

IVORY,TRIM0#

main63310-48020-B1i199801-200007

MEDIUM GRAY,TRIM1#

main63310-48040-A0i199801-200007

W(MOON ROOF),IVORY,TRIM0#

main63310-48040-B1i199801-200007

W(MOON ROOF),MEDIUM GRAY,TRIM1#

main63310-48060-A0i200208-200302

TAIWAN SPEC,IVORY,TRIM0#

main63310-48060-B0i200007-200208

LT. GRAY,TRIM2#

main63310-48080-A0i200007-200208

W(MOON ROOF),IVORY,TRIM0#

main63310-48080-B0i200007-200208

W(MOON ROOF),LT. GRAY,TRIM2#

main63310-48130-A0i200208-200302

W(MOON ROOF),IVORY,TRIM0#

main63310-48130-B0i200208-200302

W(MOON ROOF),LT. GRAY,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-08056-C0×2i200107

BLACK,TRIM0#,2#

main90467-08186×2i199801-200007

main90467-08186-C0×2i200007-200107

BLACK,TRIM0#,2#

63328CKNOB, SUNSHADE TRIM

main63328-12030-A1i199801

IVORY,TRIM0#

main63328-12030-B0i200007

LT.GRAY,TRIM2#

main63328-12030-B2i199801-200007

BLUE GRAY,TRIM1#

63342PAD, ROOF SILENCER, NO.2

main63342-48010i199801-200208

63344PAD, ROOF SILENCER, NO.4

main63344-48010i199801-200208

63345PAD, ROOF SILENCER, NO.5

main63345-22050×4i199801-200208

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-48020i200007

63650ABOX ASSY, ROOF CONSOLE

main63650-0W010-A1i199801-199803

IVORY,TRIM0#

main63650-0W010-B1i199801-199803

MD.GRAY,TRIM1#

main63650-0W011-A1i200208

IVORY,TRIM0#

main63650-0W011-B0i199901-200007

BLUE GRAY,TRIM1#

main63650-0W011-B1i199803-199901

MD.GRAY,TRIM1#

main63650-0W011-B3i200007-200208

LT.GRAY,TRIM2#

63650BBULB, ROOF CONSOLE BOX

main90084-98049i199801

63652CCOVER, ROOF CONSOLE BOX

main63652-AA020-A1i199801-199803

IVORY,TRIM0#

main63652-AA020-B3i199801-199803

MD.GRAY,TRIM1#

main63652-AA021-A1i199803

IVORY,TRIM0#

main63652-AA021-B0i200007

LT.GRAY,TRIM2#

main63652-AA021-B1i199901-200007

BLUE GRAY,TRIM1#

main63652-AA021-B3i199803-199901

MD.GRAY,TRIM1#

63654BCOVER, ROOF CONSOLE BOX, INNER

main63654-33010i199801

63660CBOX ASSY, ROOF CONSOLE W/O RELAY

main63660-0W010-A1i199801-199803

IVORY,TRIM0#

main63660-0W010-B2i199801-199803

MD.GRAY,TRIM1#

main63660-0W011-A1i199803

IVORY,TRIM0#

main63660-0W011-B0i200007

LT.GRAY,TRIM2#

main63660-0W011-B1i199901-200007

BLUE GRAY,TRIM1#

main63660-0W011-B2i199803-199901

MD.GRAY,TRIM1#

81231DLENS, COURTESY

main81231-0W010i199801-200208

main81231-AA010i199801

W(MOON ROOF)

9046805060

main90468-05060

9053030003

main90530-30003

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
