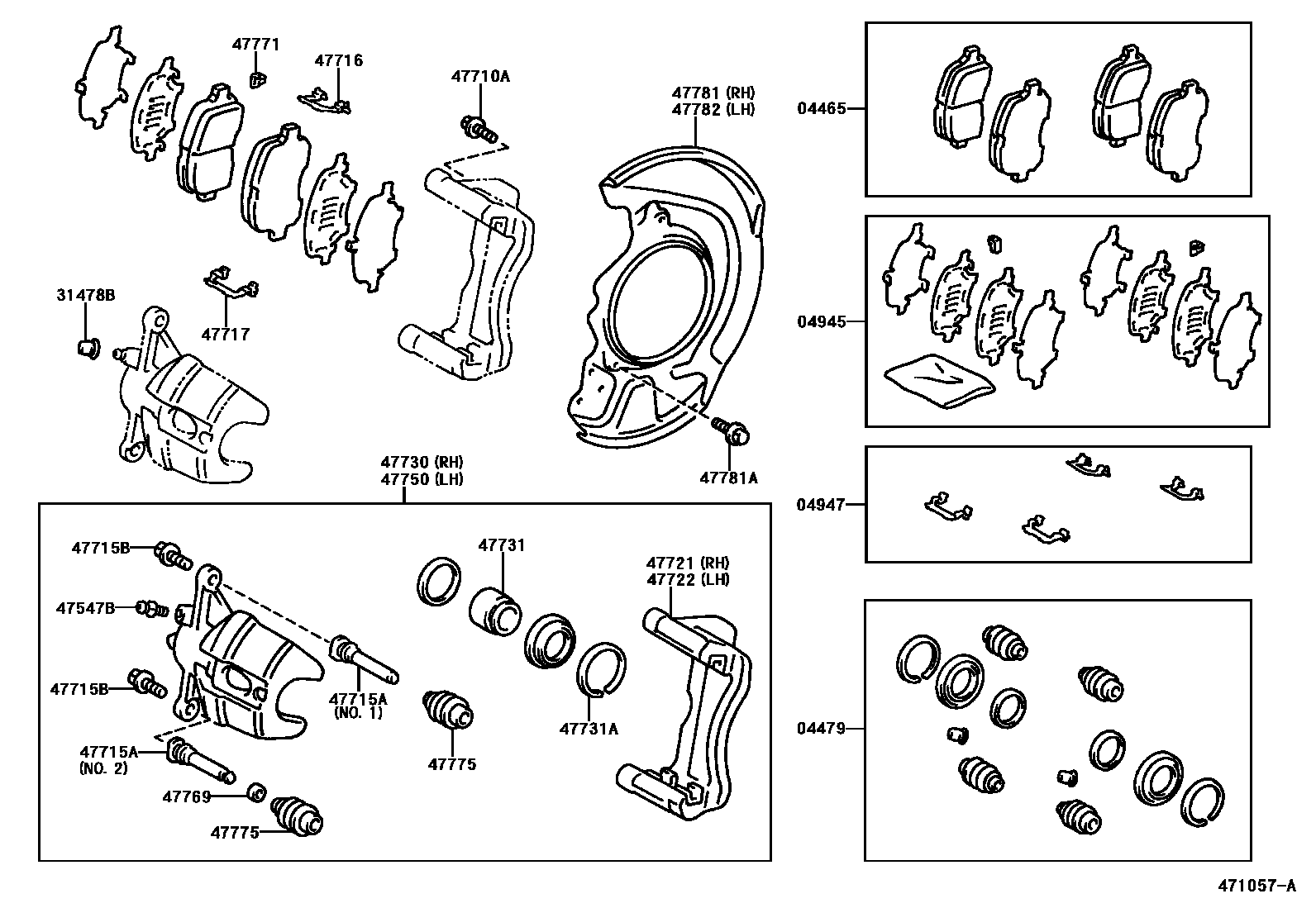

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK AK PA533
MARK AK PA560H
04479CYLINDER KIT, DISC BRAKE, FRONT
04945SHIM KIT, ANTI SQUEAL, FRONT
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX29.5-23
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
NO.1
NO.2
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
23 parts on this diagram · 2 diagrams in section
