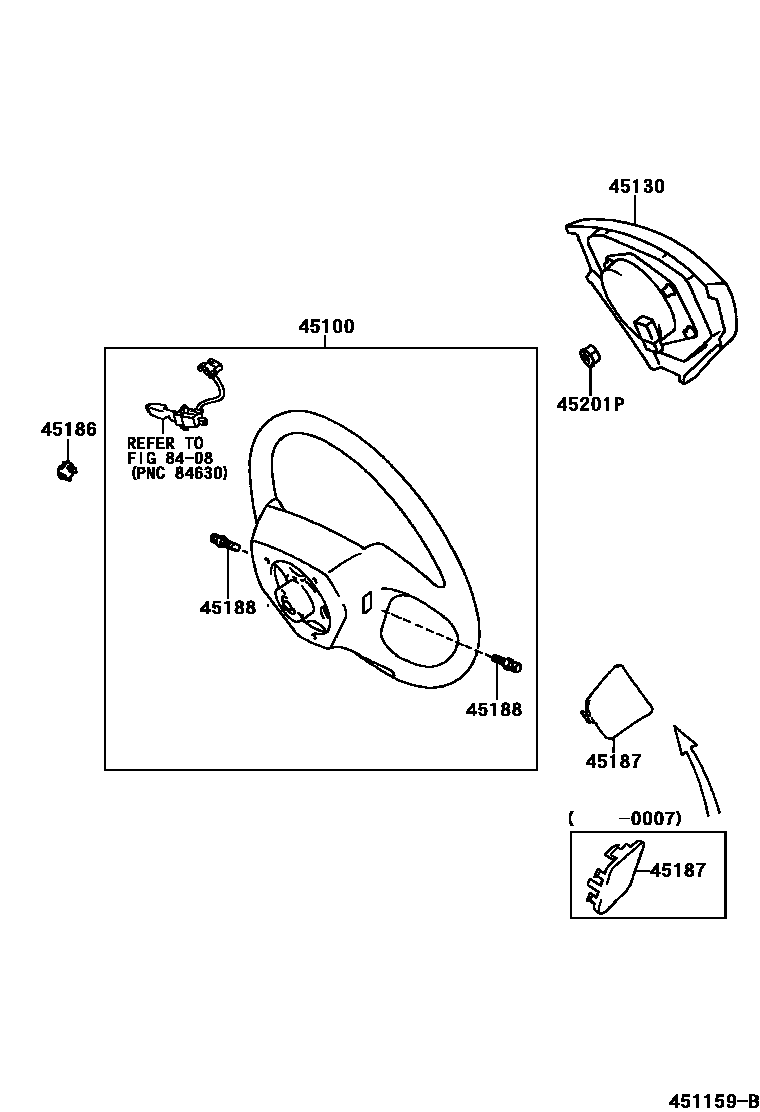

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48030-B0i199801-200007

3-SPOKE,LEATHER,SHADOW GRAY,TRIM1#

main45100-48030-E0i199801-200007

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-48070-C0i200007

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

main45100-48070-E0i200007

3-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

main45100-48110-C0i200007-200012

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

main45100-48110-E0i200007-200012

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

main45100-48111-C0i200012-200210

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

main45100-48111-E0i200012-200210

3-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

main45100-48112-C0i200210

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-48112-E0i200210

3-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0#

main45100-48230-C0i200103-200106

3-SPOKE,LEATHER,SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN),BLACK,TRIM22

main45100-48260-E0i200207-200209

3-SPOKE,WOOD&LEATHER,COACH EDITION(CANADA),LT.BROWN,TRIM0#

45130BUTTON ASSY, HORN

main45130-48020-B0i199801-200007

SHADOW GRAY,TRIM1#

main45130-48020-E0i199801-200007

SANDAL WOOD,TRIM0#

main45130-48040-C0i200007

BLACK,TRIM2#

main45130-48040-E0i200007

SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-44010-B2i199801-200007

SHADOW GRAY,TRIM1#

main45186-44010-C0i200007

BLACK,TRIM2#

main45186-44010-E4i199801

SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30060-B2i199801-200007

SHADOW GRAY,TRIM1#

main45187-30060-E1i199801-200007

SANDAL WOOD,TRIM0#

main45187-48010-C0i200007

BLACK,TRIM2#

main45187-48010-E0i200007

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2i199801

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i199801

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

7 parts on this diagram · 1 diagram in section
