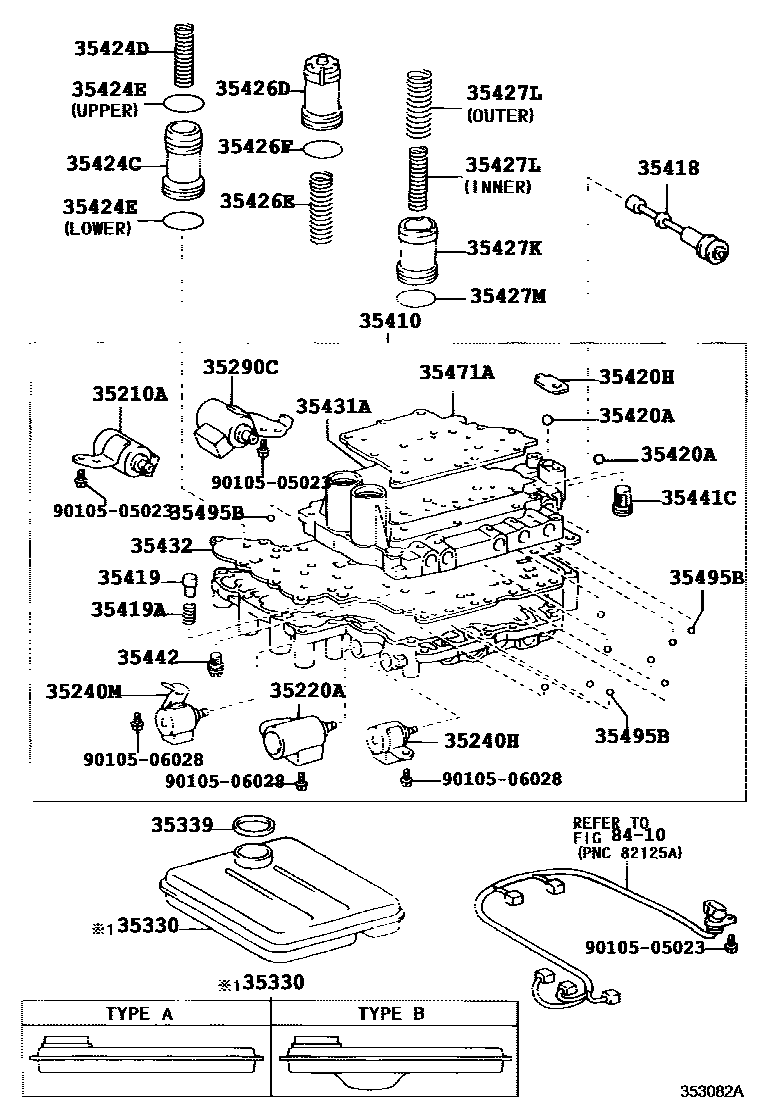

VALVE BODY & OIL STRAINER (ATM)
35210AVALVE, SOLENOID(SL1)
35220AVALVE, SOLENOID(SL2)
35240HVALVE, SOLENOID(S4)
35240MVALVE, SOLENOID(DSL)
35290CVALVE, SOLENOID(SLT)
35330STRAINER ASSY, VALVE BODY OIL
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
35339GASKET, OIL STRAINER
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420ABALL (FOR PRESSURE RELIEF)
35420HCOVER, CHECK BALL
35424CPISTON, C-1 ACCUMULATOR
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
UPPER
LOWER
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35427KPISTON, B-3 ACCUMULATOR
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
INNER
OUTER
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
35431AGASKET, UPPER VALVE BODY COVER
35432PLATE, VALVE BODY, NO.1
35441CSTRAINER, SOLENOID OIL
35442STRAINER, THROTTLE MODULATOR OIL
35495BBALL, CHECK, NO.1
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9010505023
main90105-05023
9010506028
main90105-06028
31 parts on this diagram · 8 diagrams in section
