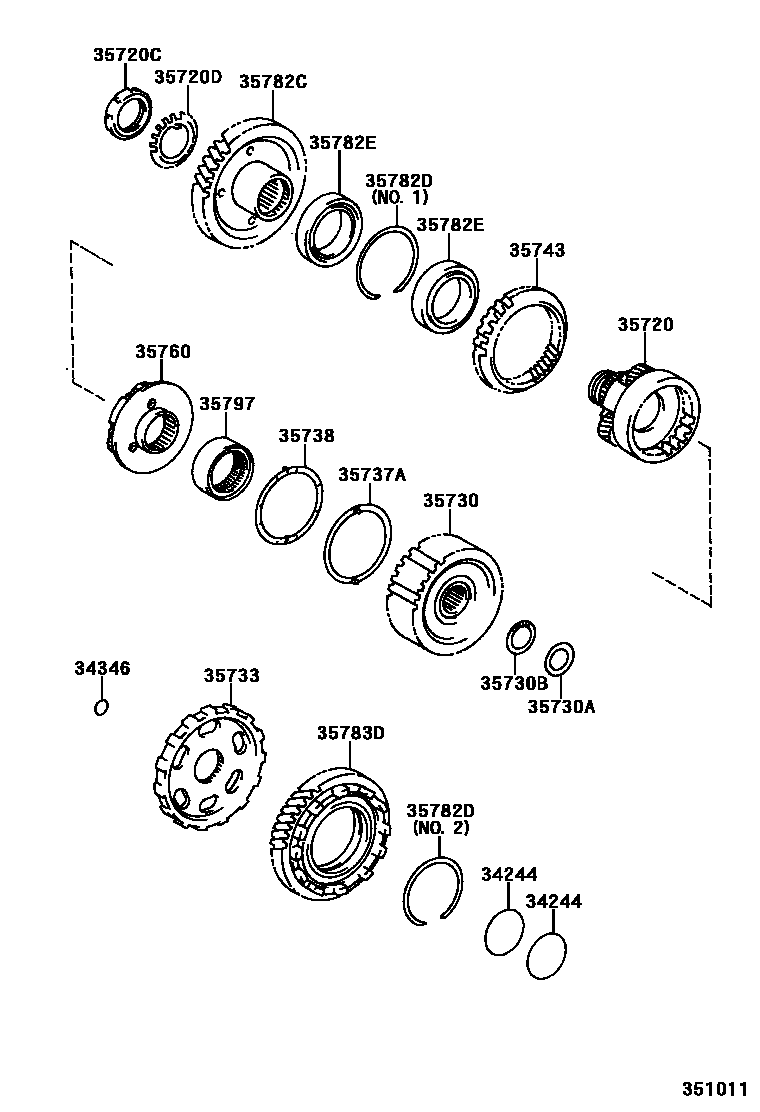

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010×2iMCU1#199801

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21010iMCU10199801-199810

main34346-21011iMCU1#200008

35720GEAR ASSY, FRONT PLANETARY

main35720-21020iMCU1#199801-200208

main35720-21030iMCU1#200208

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iMCU1#199801

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iMCU1#199801

35730GEAR ASSY, REAR PLANETARY SUN

main35730-21010iMCU1#199801

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35789-21010iMCU1#199801

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-33003iMCU1#199801

35733GEAR, PARKING LOCK

main35733-21010iMCU10199801

main35733-48010iMCU15199801

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iMCU1#199801

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iMCU1#199801

35743GEAR, FRONT PLANETARY RING

main35743-21010iMCU1#199801

35760GEAR ASSY, REAR PLANETARY

main35760-21020iMCU1#199801-200208

main35760-33030iMCU1#200208

35782CGEAR, COUNTER DRIVE

main35782-21010iMCU1#199801

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iMCU1#199801

NO.1

main90520-89002iMCU1#199801-200206

NO.2

main90520-89004iMCU1#200206

NO.2

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-60009×2iMCU1#199801

35783DGEAR, COUNTER DRIVEN

main35783-21010iMCU1#199801

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iMCU1#199801

18 parts on this diagram · 1 diagram in section
