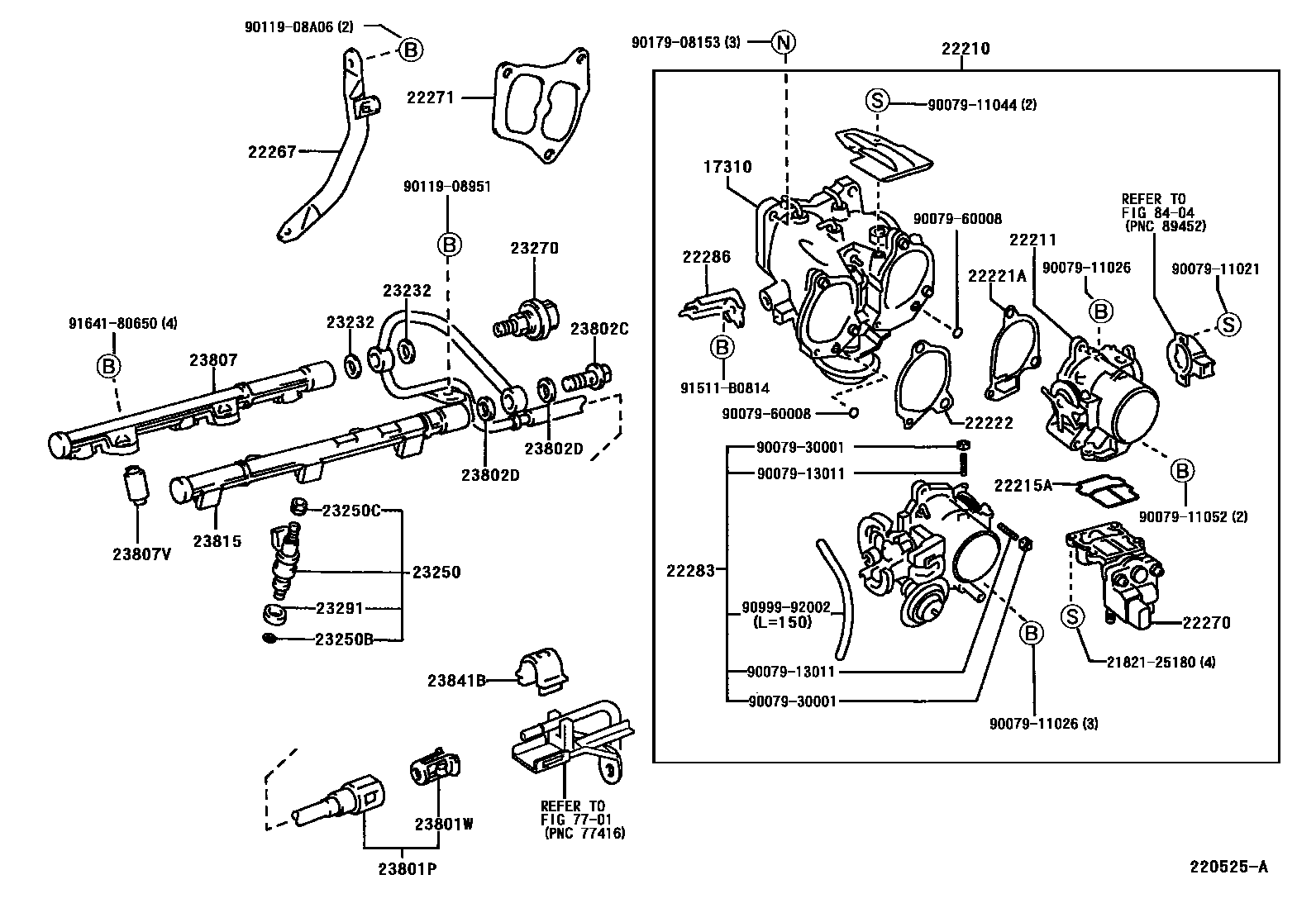

FUEL INJECTION SYSTEM
17310VALVE ASSY, INTAKE AIR CONTROL, NO.1
22210BODY ASSY, THROTTLE
22211BODY, THROTTLE
22215AGASKET, IDLE SPEED CONTROL VALVE
22221AGASKET, INTAKE AIR CONTROL VALVE, NO.1
22222GASKET, INTAKE AIR CONTROL VALVE, NO.2
22267BRACKET, THROTTLE BODY
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
ENGINE NO.=5XXXXXX-9XXXXXX
ENGINE NO.=0XXXXXX-4XXXXXX
22283BODY, THROTTLE, NO.2
22286BRACKET, THROTTLE BODY
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23291INSULATOR, INJECTOR VIBRATION
23801PPIPE SUB-ASSY, FUEL, NO.1
23801WCLIP, FUEL TUBE CONNECTOR
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23815PIPE, FUEL DELIVERY, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911021
main90079-11021
9007911026
main90079-11026
9007911044
main90079-11044
9007911052
main90079-11052
9007913011
main90079-13011
9007930001
main90079-30001
9007960008
main90079-60008
9011908951
main90119-08951
9011908A06
main90119-08A06
9017908153
main90179-08153
9099992002
main90999-92002
91511B0814
main91511-B0814
9164180650
main91641-80650
41 parts on this diagram · 4 diagrams in section
