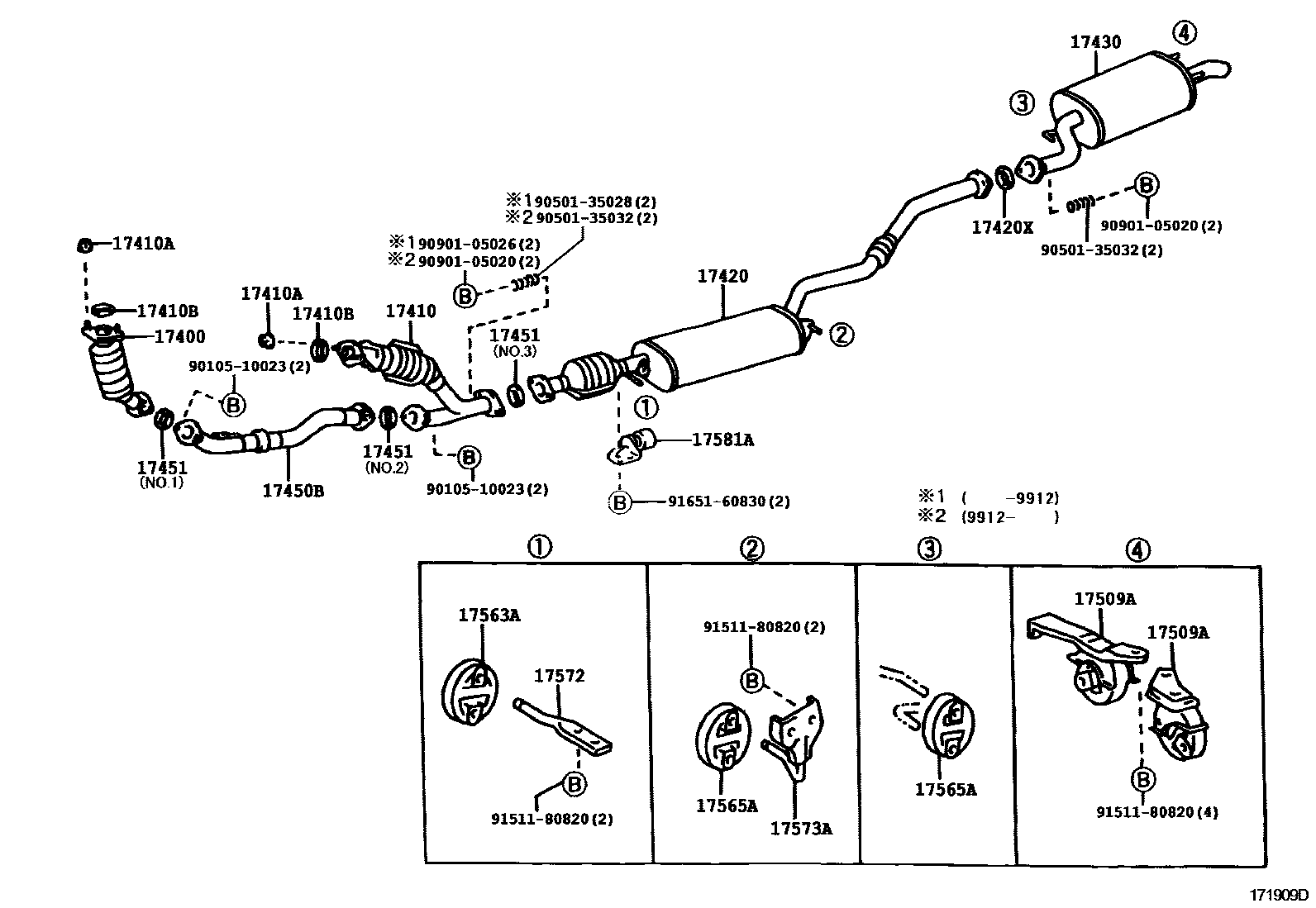

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
TOWING PACKAGE
TOWING PACKAGE
17450BPIPE ASSY, EXHAUST, FRONT NO.2
17451GASKET, EXHAUST PIPE
NO.3
NO.1
NO.2
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
RH
LH
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17581ADAMPER, EXHAUST PIPE
9010510023
main90105-10023
9050135028
main90501-35028
9050135032
main90501-35032
9090105020
main90901-05020
9090105026
main90901-05026
9151180820
main91511-80820
9165160830
main91651-60830
22 parts on this diagram · 2 diagrams in section
