MANIFOLD

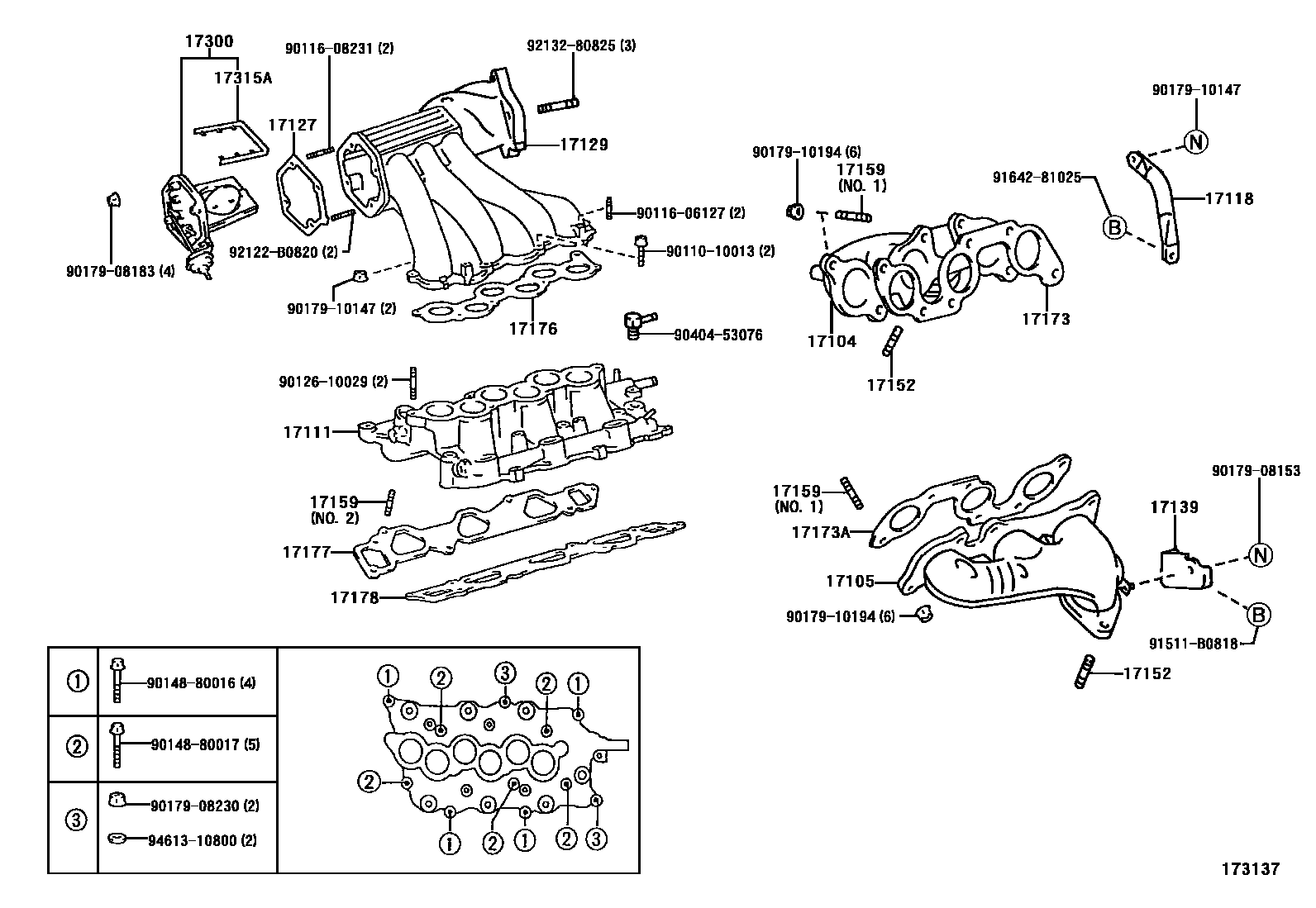

Parts diagram

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-20020i199801

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-20010i199801

17111MANIFOLD, INTAKE

main17101-20030i199801-200007

main17101-20031i200007

17118STAY, MANIFOLD

main17118-20040i199801

17127GASKET, SURGE TANK COVER

main17127-0A010i200201

(L)

main17127-62030i200201

(J)

17129TANK, INTAKE AIR SURGE

main17109-20070i199801-200007

main17109-20071i200007

17139STAY, MANIFOLD, NO.2

main17139-20030i199801

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10149×2i199801

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10169×12i199801-200107

NO.1

main90126-08013×4i199801-200302

NO.2

main90126-10030×12i200107-200302

NO.1

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0A010i200201

(L)

main17173-20010i199801-200201

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-0A010i200201

(L)

main17173-20010i200201

(J)

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-62030i199801

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-20020i199801

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-20020i199801

17300VALVE ASSY, INTAKE AIR CONTROL

main17300-20020i199801

17315AGASKET, INTAKE AIR CONTROL VALVE

main17315-62020i199801

9011010013

main90110-10013

9011606127

main90116-06127

9011608231

main90116-08231

9012610029

main90126-10029

9014880016

main90148-80016

9014880017

main90148-80017

9017908153

main90179-08153

9017908183

main90179-08183

9017908230

main90179-08230

9017910147

main90179-10147

9017910194

main90179-10194

9040453076

main90404-53076

91511B0818

main91511-B0818

9164281025

main91642-81025

92122B0820

main92122-B0820

9213280825

main92132-80825

9461310800

main94613-10800

33 parts on this diagram · 1 diagram in section
