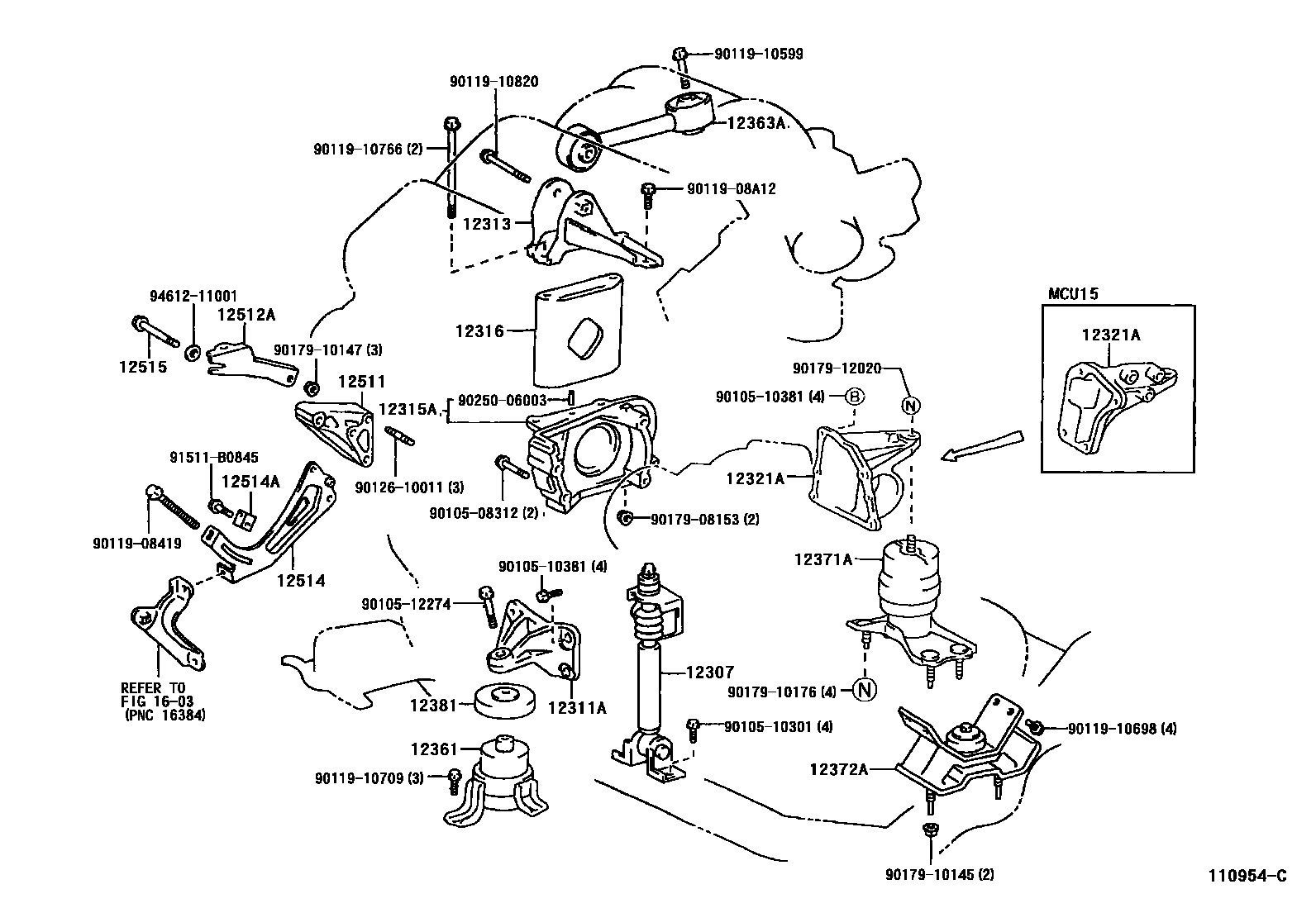

12307ABSORBER SUB-ASSY, ENGINE MOUNTING

main12307-20020i199801-199906

main12307-20021i199906

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-20050i199801

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-20030i199801

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0A010i200201

(L)

main12315-20020i200201

(J)

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-20010i199801-200004

main12316-20030i200004

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-20060i199801

main12321-20070i199801

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-20060i199801

12363AROD, ENGINE MOVING CONTROL

main12363-20040i199801

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-20050i199801

main12371-20060i199801

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-20030i199801

12381STABILIZER, ENGINE MOUNTING

main12381-20020i199801

12511BRACKET, ALTERNATOR, NO.1

main12511-20020i199801

12512ABRACKET, ALTERNATOR, NO.2

main12512-20010i199801

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-0A010i200201

(L)

main12514-20010i199801-200201

12514ASLIDER, FAN BELT ADJUSTING

main16385-20010i199801

12515BOLT, ALTERNATOR THROUGH

main12515-20010i199801

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9010508312

main90105-08312

9010510301

main90105-10301

9010510381

main90105-10381

9010512274

main90105-12274

9011908419

main90119-08419

9011908A12

main90119-08A12

9011910599

main90119-10599

9011910698

main90119-10698

9011910709

main90119-10709

9011910766

main90119-10766

9011910820

main90119-10820

9012610011

main90126-10011

9017908153

main90179-08153

9017910145

main90179-10145

9017910147

main90179-10147

9017910176

main90179-10176

9017912020

main90179-12020

9025006003

main90250-06003

91511B0845

main91511-B0845

9461211001

main94612-11001
