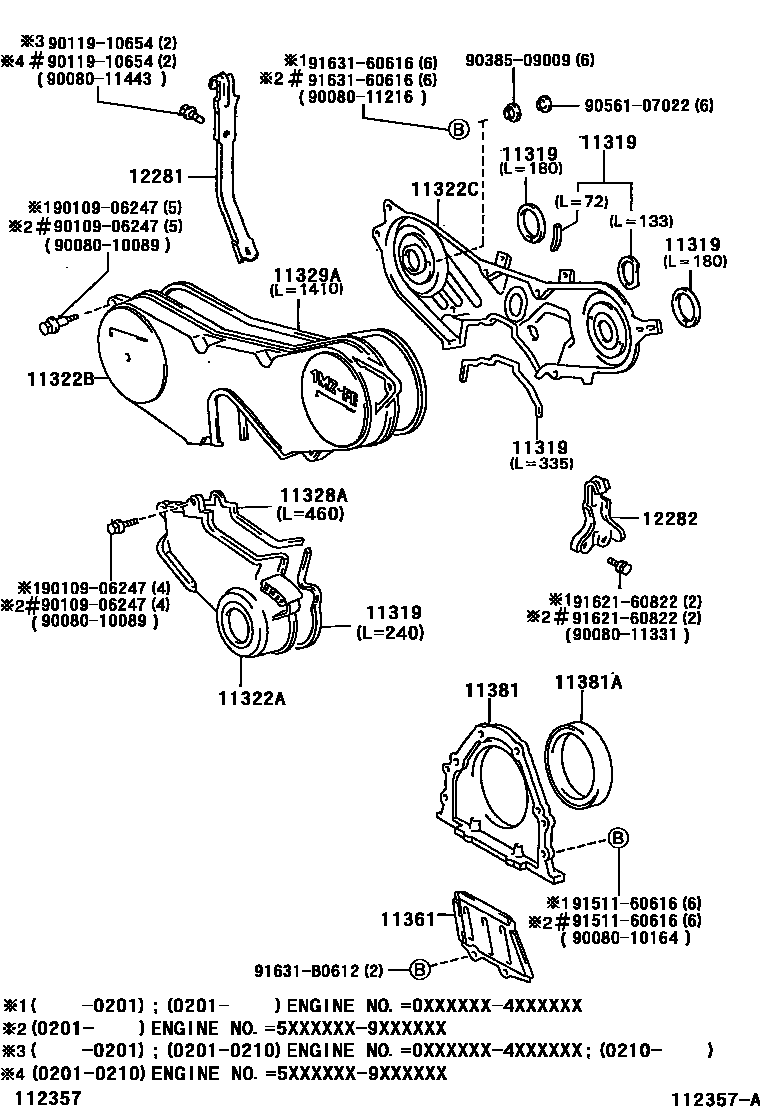

TIMING GEAR COVER & REAR END PLATE

11319GASKET, TIMING BELT COVER, NO.3

main11319-20010i1MZFE..MCU1#199801

11322ACOVER, TIMING BELT, NO.1

main11302-0A020i1MZFE..MCU10200201

(L)

main11302-20040i1MZFE..MCU15200201

(J)

main11302-20040i1MZFE..MCU1#199904-200201

main11321-20900i1MZFE..MCU1#199801-199904

11322BCOVER, TIMING BELT, NO.2

main11303-0A031i1MZFE..MCU10200201

(L)

sub11303-20040

main11303-20040i1MZFE..MCU15200201

(J)

main11303-20040i1MZFE..MCU1#199904-200201

main11322-20030i1MZFE..MCU1#199801-199904

11322CCOVER, TIMING BELT, NO.3

main11323-20030i1MZFE..MCU1#199801

11328AGASKET, TIMING BELT COVER, NO.1

main11328-20020i1MZFE..MCU1#199801

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-20010i1MZFE..MCU1#199801

11361COVER, FLYWHEEL HOUSING UNDER

main11361-20010i1MZFE..MCU1#199801-199803

sub11361-20011

main11361-20011i1MZFE..MCU1#199803

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0A010i1MZFE..MCU10200201

(L)

main11381-20010i1MZFE..MCU15200201

(J)

main11381-20010i1MZFE..MCU1#199801-200201

11381ASEAL, ENGINE REAR OIL

main90080-31053i1MZFE..MCU10200201

(L)

sub90311-A0027

main90311-92008i1MZFE..MCU1#199801-200201

main90311-92008i1MZFE..MCU15200201

(J)

12281HANGER, ENGINE, NO.1

main12281-20050i1MZFE..MCU1#199801

12282HANGER, ENGINE, NO.2

main12282-20020i1MZFE..MCU1#199801

9008010089

main90080-10089

9008010164

main90080-10164

9008011216

main90080-11216

9008011331

main90080-11331

9008011443

main90080-11443

9010906247

main90109-06247

9011910654

main90119-10654

9038509009

main90385-09009

9056107022

main90561-07022

9151160616

main91511-60616

9162160822

main91621-60822

9163160616

main91631-60616

91631B0612

main91631-B0612

24 parts on this diagram · 1 diagram in section
