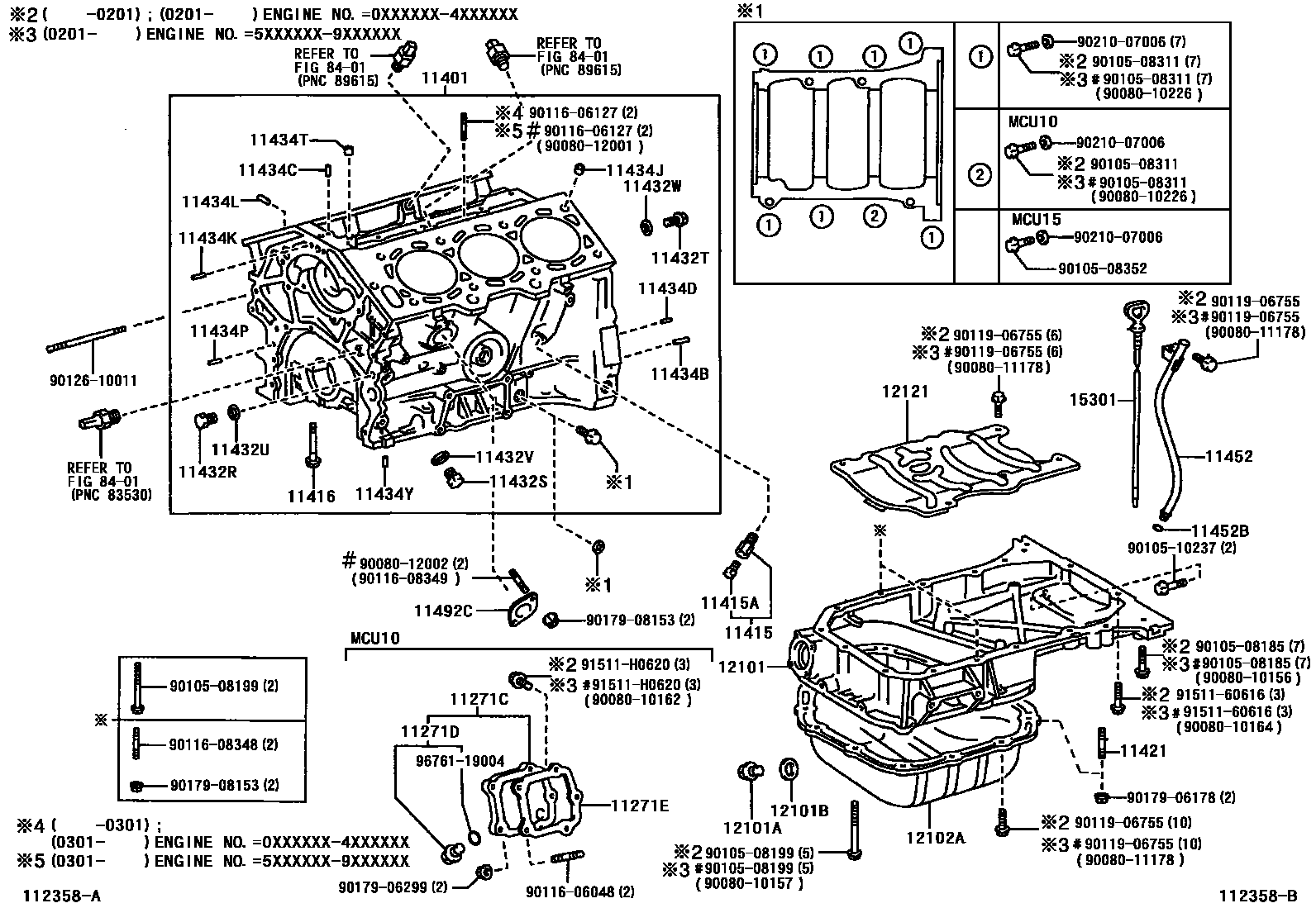

11271CCOVER, CYLIVDER BLOCK SIDE

main11271-20010i199801

11271DPLUG, DRAIN COCK(FOR CYLINDER BLOCK SIDE COVER )

main90910-09104i199801

11271EGASKET, E.G.R COOLER

main25685-0A010i200201

(L)

main25685-20010i199801-200201

11401BLOCK SUB-ASSY, CYLINDER

main11401-09210i200201

(L)

main11401-29555i199801-199903

main11401-29556i199903-200201

main11401-29565i199801-199903

main11401-29566i199903

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i199801

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i199801

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02114×16i199801

11421BOLT, STUD(FOR OIL PAN)

main90080-11538×2i200301-200302

ENGINE NO.=5XXXXXX-9XXXXXX,(L)

main90116-06098×2i200301-200302

ENGINE NO.=0XXXXXX-4XXXXXX; ENGINE NO.=5XXXXXX-9XXXXXX,(J)

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-16013i199801

11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)

main90341-16013i199801

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-20013i199801

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-16009i199801

11432VGASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)

main90430-16009i199801

11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)

main90430-20004i199801

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i199801

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i199801

L=12,OD=4.0

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-04097×2i199801

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-16001×4i199801

11434KPIN, STRAIGHT(FOR WATER PUMP)

main90250-04097×2i199801

11434LPIN, STRAIGHT(FOR ENGINE MOUNTING)

main90250-04097×2i199801

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

main90250-04097×2i199801

L=12,OD=4.0

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90253-11021i199801

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i199801

11452GUIDE, OIL LEVEL GAGE

main11452-0A020i200201

(L)

main11452-20020i200201

(J)

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i199801

11492CPLATE, WATER SEAL

main11492-20010i200104

main11492-50010i199801-200104

12101PAN SUB-ASSY, OIL

main12111-0A030i200201

(L)

main12111-20032i200201

(J)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i200210

main90341-12026i199801-200210

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i199801

12102APAN SUB-ASSY, OIL, NO.2

main12102-0A010i200201

(L)

main12102-20010i200201

(J)

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0A011i200201

(L)

main12121-20021i200201

(J)

15301GAGE SUB-ASSY, OIL LEVEL

main15301-20021i199801

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010156

main90080-10156

9008010157

main90080-10157

9008010162

main90080-10162

9008010164

main90080-10164

9008010226

main90080-10226

9008011178

main90080-11178

9008012001

main90080-12001

9008012002

main90080-12002

9010508185

main90105-08185

9010508199

main90105-08199

9010508311

main90105-08311

9010508352

main90105-08352

9010510237

main90105-10237

9011606048

main90116-06048

9011606127

main90116-06127

9011608348

main90116-08348

9011608349

main90116-08349

9011906755

main90119-06755

9012610011

main90126-10011

9017906178

main90179-06178

9017906299

main90179-06299

9017908153

main90179-08153

9021007006

main90210-07006

9151160616

main91511-60616

91511H0620

main91511-H0620

9676119004

main96761-19004
