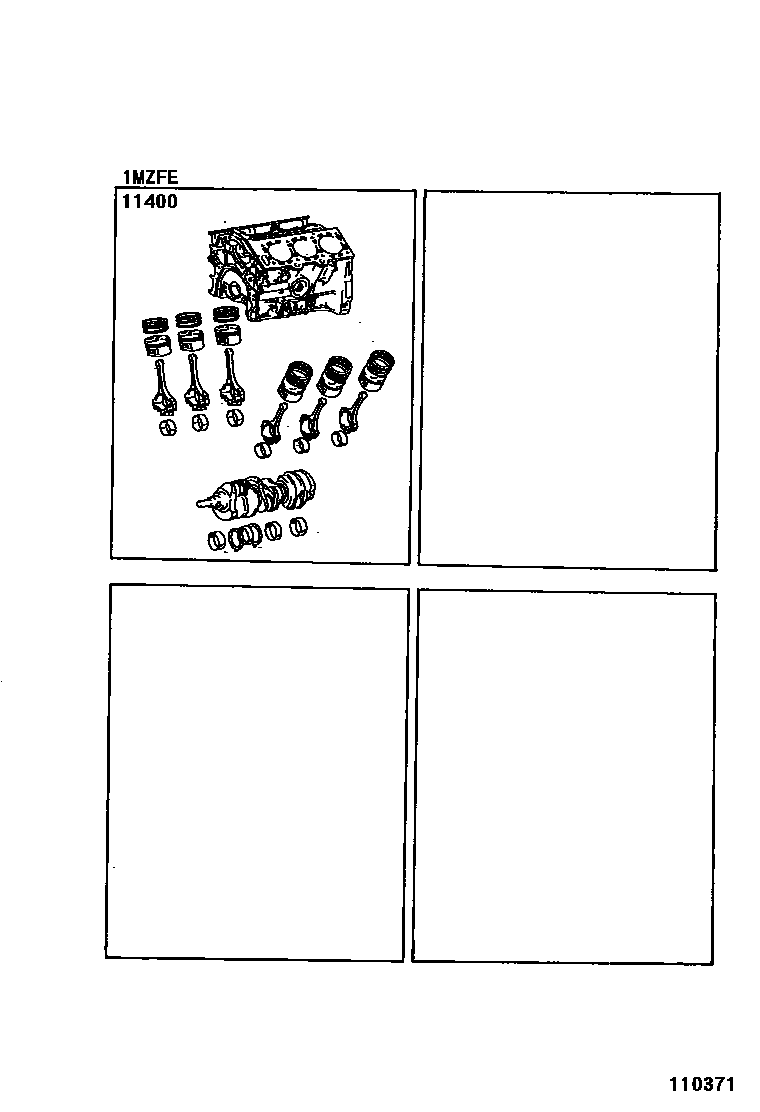

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-20050i199801-199903

main11400-20051i199903

main11400-20060i199801-199903

main11400-20061i199903

1 parts on this diagram · 1 diagram in section
