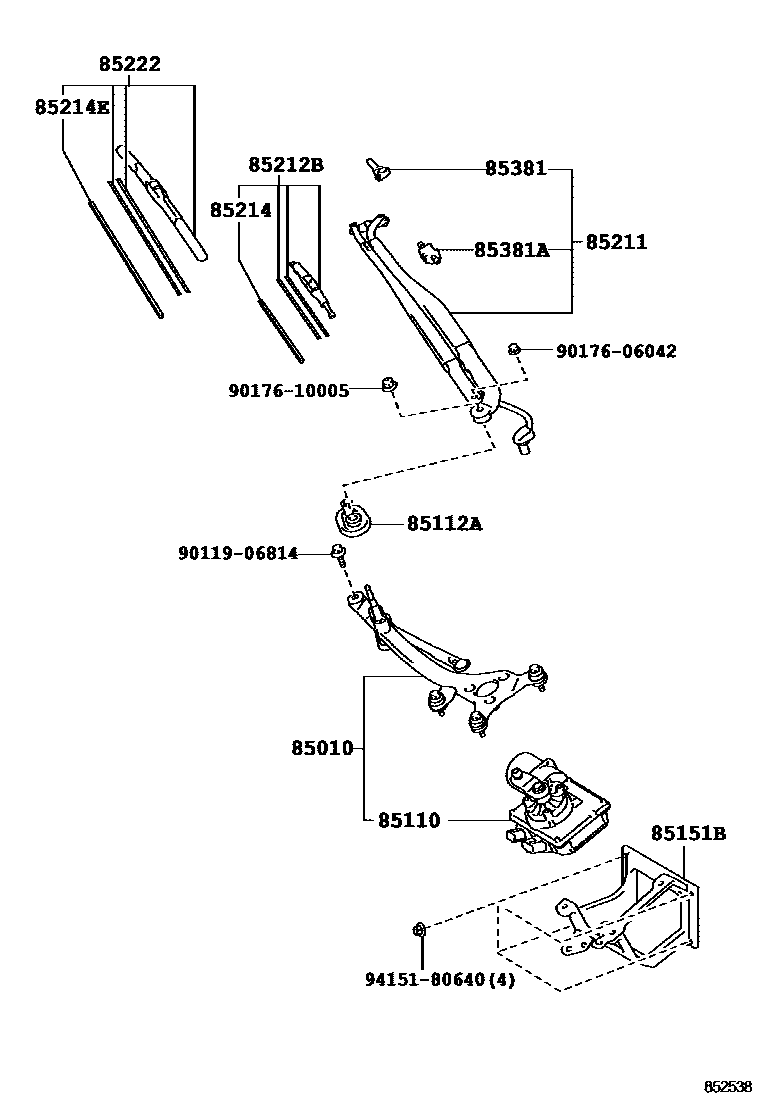

WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

main85010-77010iLFA10201012

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-77010iLFA10201012

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-77010iLFA10201012

85151BFRAME, FRONT WIPER LINK

main85151-77010iLFA10201012

85211ARM, FRONT WIPER

main85221-77010iLFA10201012

85212BBLADE, FR WIPER, NO.1

main85212-77010iLFA10201012-201212

85214RUBBER, WIPER BLADE, NO.1

main85214-77010iLFA10201012

85214ERUBBER, WIPER BLADE, NO.2

main85214-30380iLFA10201012

85222BLADE, FR WIPER, NO.2

main85222-50080iLFA10201012-201212

85381NOZZLE, FR WASHER, NO.1

main85381-77010iLFA10201012

85381ANOZZLE, FR WASHER, NO.2

main85381-77030iLFA10201012

9011906814

main90119-06814

9017606042

main90176-06042

9017610005

main90176-10005

9415180640

main94151-80640

15 parts on this diagram · 1 diagram in section
