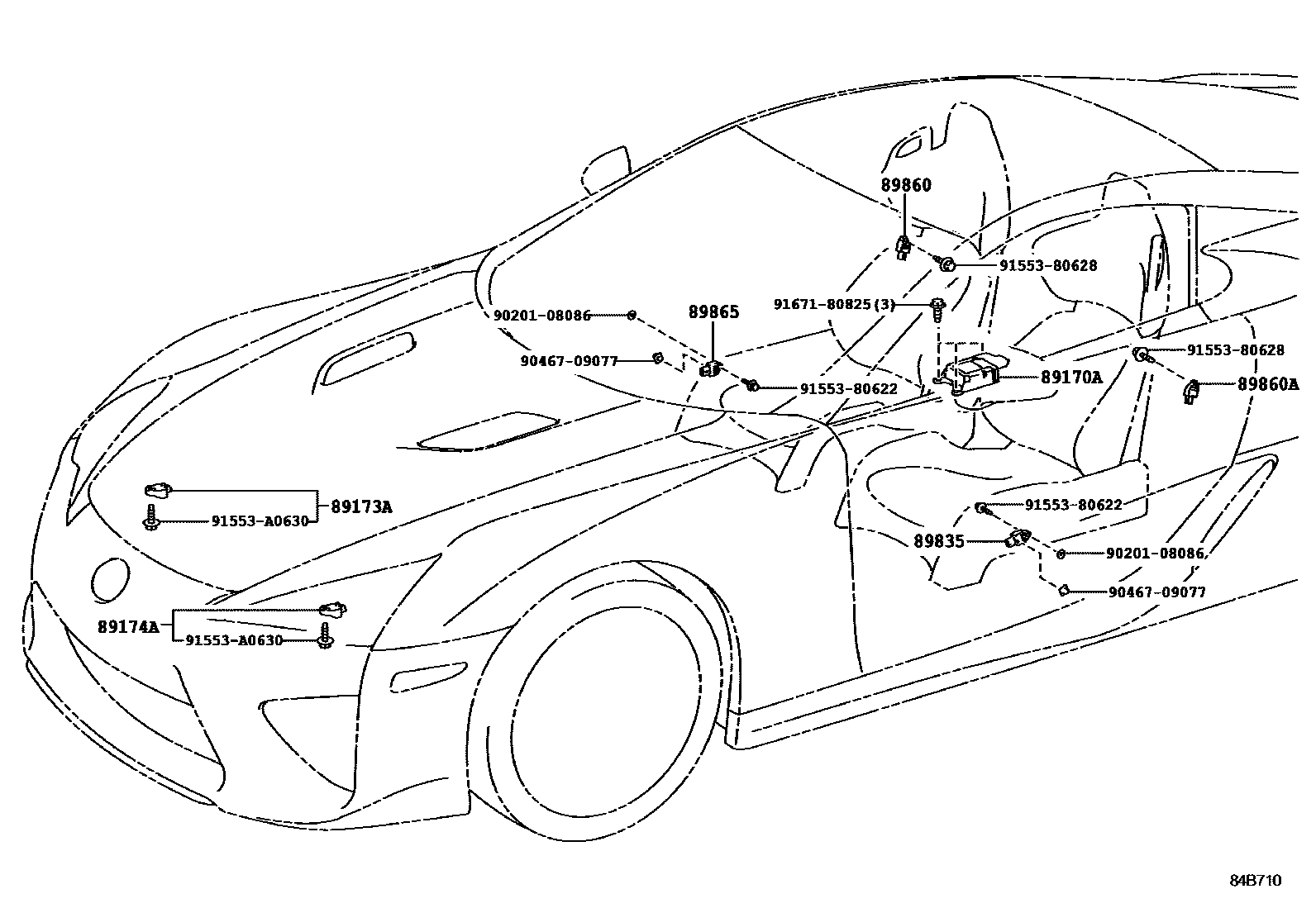

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-77020iLFA10201012-201205

main89170-77080iLFA10201206-201212

89173ASENSOR, AIRBAG, FRONT RH

main89173-79045iLFA10201012

89174ASENSOR, AIRBAG, FRONT LH

main89173-79045iLFA10201012

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-60040iLFA10201012

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-75010iLFA10201012

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-75010iLFA10201012

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-60040iLFA10201012

9020108086

main90201-08086

9046709077

main90467-09077

9155380622

main91553-80622

9155380628

main91553-80628

91553A0630

main91553-A0630

9167180825

main91671-80825

13 parts on this diagram · 1 diagram in section
