WIRELESS DOOR LOCK

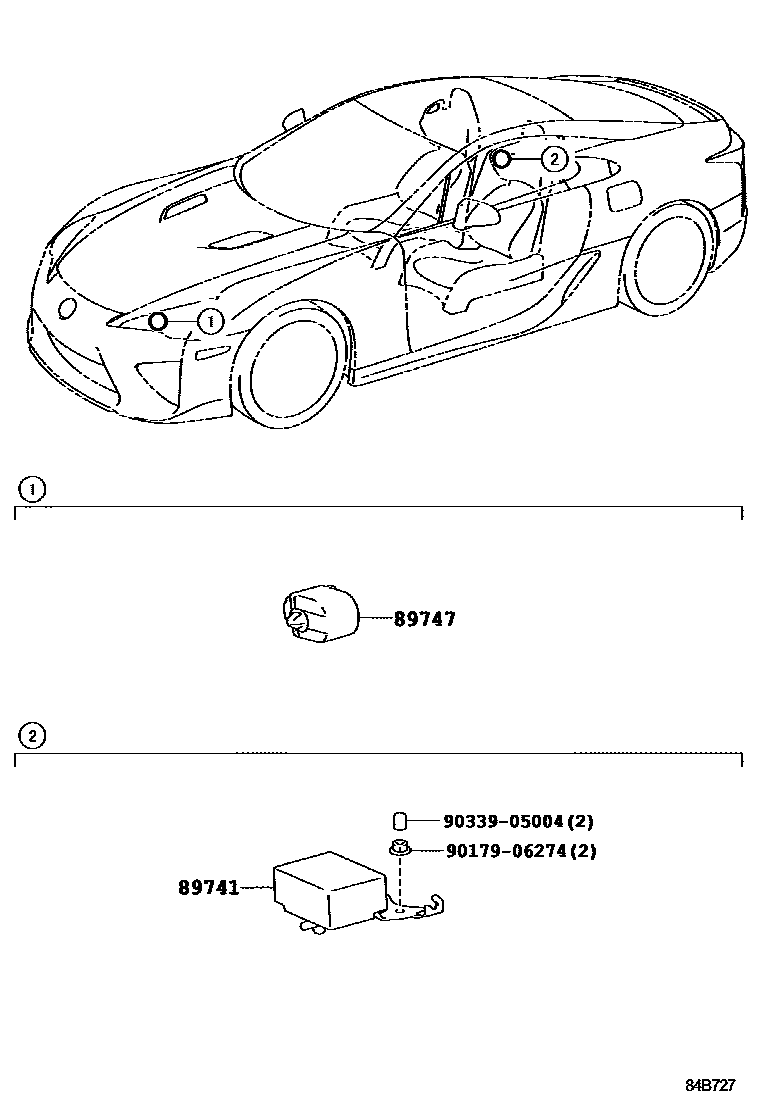

Parts diagram

89741RECEIVER, DOOR CONTROL

main89741-77010i201012

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010i201012

9017906274

main90179-06274

9033905004

main90339-05004

4 parts on this diagram · 1 diagram in section
