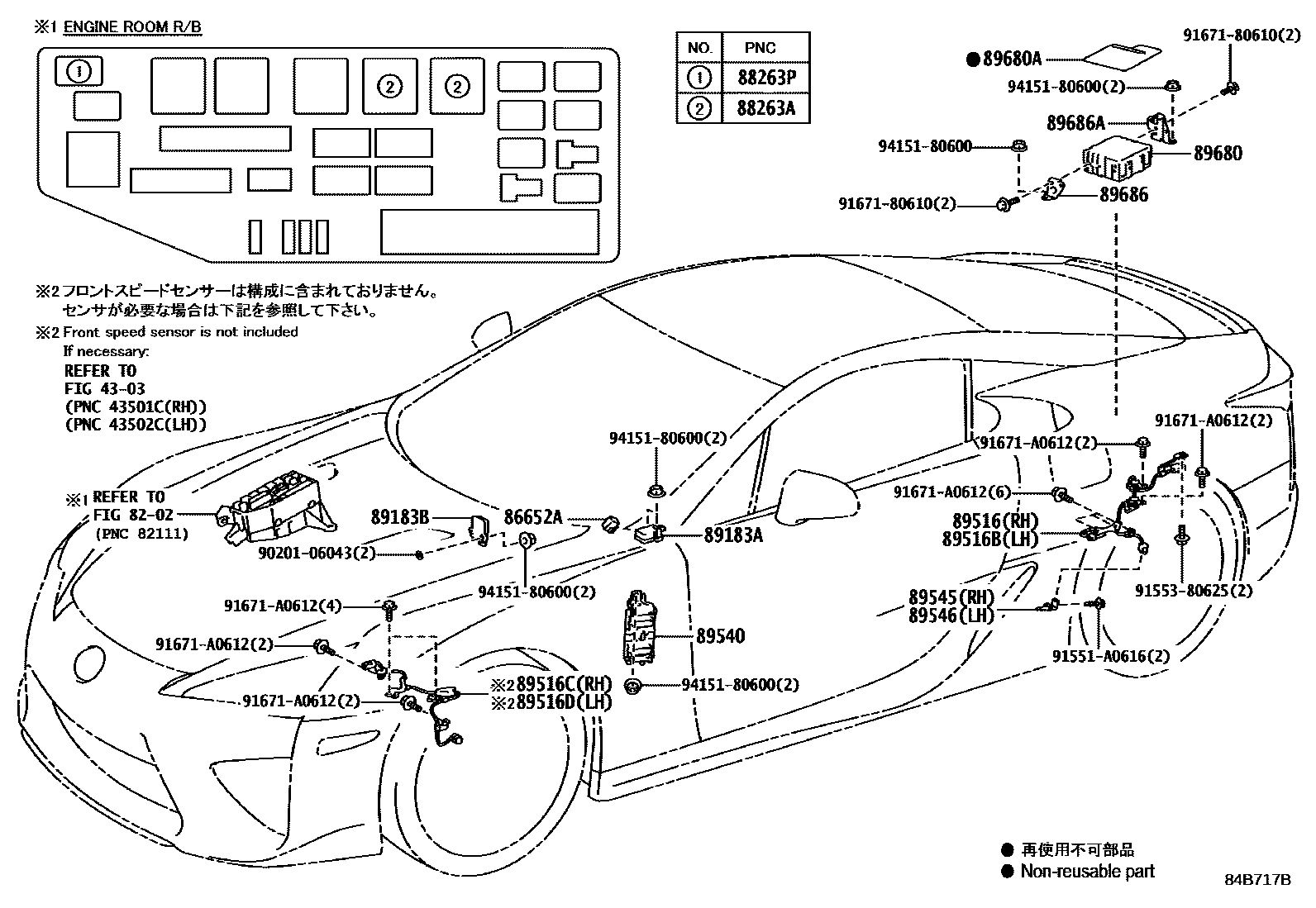

ABS & VSC

4303FRONT AXLE HUB

→ Go to FIG 43-03

8202WIRING & CLAMP

→ Go to FIG 82-02

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iLFA10201012

88263ARELAY, SKID CONTROL

main88263-21010×2iLFA10201012

88263PRELAY, STOP LAMP CONTROL

main90987-04004iLFA10201012

89183ASENSOR, YAWRATE

main89183-50030iLFA10201012

89183BSENSOR, YAWRATE

main89183-77010iLFA10201012

89516WIRE, SKID CONTROL SENSOR

main89516-77030iLFA10201012

89516BWIRE, SKID CONTROL SENSOR

main89516-77040iLFA10201012

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-77010iLFA10201012-201212

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-77020iLFA10201012

89540COMPUTER ASSY, SKID CONTROL

main89540-77010iLFA10201012-201107

main89540-77011iLFA10201107

89545SENSOR, SPEED, REAR RH

main89545-30070iLFA10201012-201212

89546SENSOR, SPEED, REAR LH

main89546-30070iLFA10201012-201212

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iLFA10201012

89680ACOVER, BRAKE CONTROL POWER SUPPLY

mainF197177020iLFA10201012

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-50010iLFA10201012

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-77010iLFA10201012

9020106043

main90201-06043

91551A0616

main91551-A0616

9155380625

main91553-80625

9167180610

main91671-80610

91671A0612

main91671-A0612

9415180600

main94151-80600

24 parts on this diagram · 1 diagram in section
