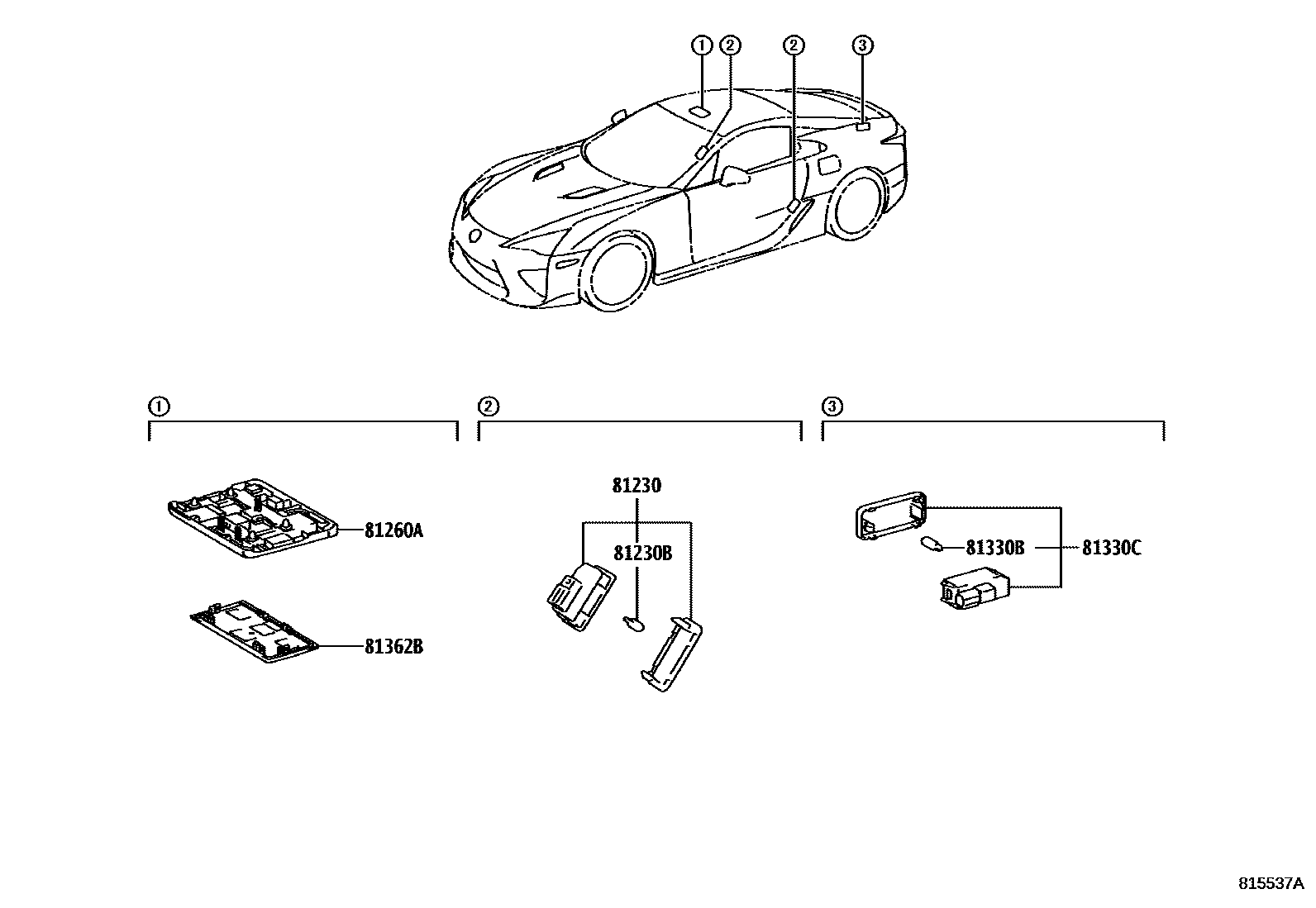

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-77010×2iLFA10201012-201212

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iLFA10201012-201212

12V 3.8W

81260ALAMP ASSY, MAP

main81260-77010supersedes 81260-77030iLFA10201012

AUDIO-MARK LEVINSON 12SPEAKER&MAYDAY SYSTEM-W(LEXUS ENFORM)

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iLFA10201012-201212

12V 3.8W

81330CLAMP ASSY, LUGGAGE COMPARTMENT

main81230-30140iLFA10201012-201212

81362BLENS, INTERIOR ILLUMINATION LAMP

main81362-77010supersedes 81362-77020iLFA10201012

AUDIO-MARK LEVINSON 12SPEAKER&MAYDAY SYSTEM-W(LEXUS ENFORM)

6 parts on this diagram · 1 diagram in section
