FRONT SEAT & SEAT TRACK

0001 1 0002 1RH 0003 1LH 0004 1

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71103-77020iLFA10201012-201212

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71104-77010iLFA10201012-201212

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71100SSEAT ASSY, FRONT RH

main71100-77010iLFA10201012-201212

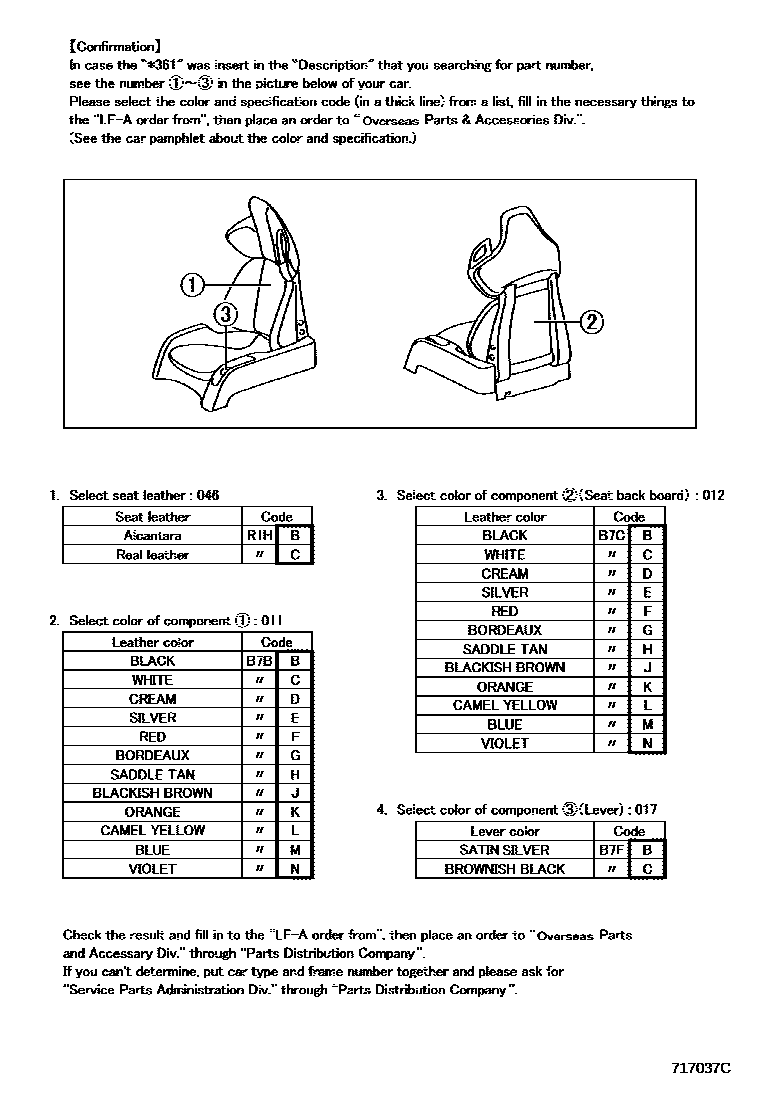

*361

71110SCUSHION ASSY, FRONT SEAT, RH

main71001-77110iLFA10201012-201212

*361

71200SSEAT ASSY, FRONT LH

main71200-77010iLFA10201012-201212

*361

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main79130-77010iLFA10201012-201212

*361

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-77040iLFA10201012-201212

*361

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-77040iLFA10201012-201212

*361

71528PAD, FRONT SEAT CUSHION W/COVER, LH

main71410-77020iLFA10201012-201212

*361

71558BPAD, FRONT SEATBACK W/COVER, RH

main71401-77020iLFA10201012-201212

*361

71568APAD, FRONT SEATBACK W/COVER, LH

main71401-77020iLFA10201012-201212

*361

71610FFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71111-77010iLFA10201012-201212

71620FFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71112-77010iLFA10201012-201212

71705ACLIP(FOR FRONT SEATBACK BOARD)

main62217-13010iLFA10201012-201212

71811DSHIELD, FRONT SEAT CUSHION, RH

main71805-77020iLFA10201012-201212

*361

71812DSHIELD, FRONT SEAT CUSHION, LH

main71806-77020iLFA10201012-201212

*361

71813ASHIELD, FRONT SEATBACK, RH

main71081-77010iLFA10201012-201212

*361

71813BSHIELD, FRONT SEATBACK, RH

main71081-77010iLFA10201012-201212

*361

71814ASHIELD, FRONT SEATBACK, LH

main71082-77010iLFA10201012-201212

*361

71814BSHIELD, FRONT SEATBACK, LH

main71082-77010iLFA10201012-201212

*361

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-77010iLFA10201012-201212

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main62217-13010iLFA10201012-201212

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-77010iLFA10201012-201212

71862BCLIP(FOR FRONT SEAT SHIELD, LH)

main62217-13010iLFA10201012-201212

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-77010iLFA10201012-201212

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-77010iLFA10201012-201212

71905BPAD, FRONT SEAT HEADREST W/COVER, RH

main71905-77020iLFA10201012-201212

*361

71905CPAD, FRONT SEAT HEADREST W/COVER, LH

main71905-77040iLFA10201012-201212

*361

71908COVER SUB-ASSY, FRONT SEAT HEADREST

main71908-77010-A0iLFA10201012-201212

WHITE,TRIM20

main71908-77010-A1iLFA10201012-201212

CREAM,TRIM20

main71908-77010-B0iLFA10201012-201212

SILVER,TRIM20

main71908-77010-C0iLFA10201012-201212

BLACK,TRIM20

main71908-77010-D1iLFA10201012-201212

RED,TRIM20

main71908-77010-D2iLFA10201012-201212

BORDEAUX,TRIM20

main71908-77010-E0iLFA10201012-201212

SADDLE TAN,TRIM20

main71908-77010-E1iLFA10201012-201212

BLACKISH .BROWN,TRIM20

main71908-77010-E2iLFA10201012-201212

ORANGE,TRIM20

main71908-77010-F0iLFA10201012-201212

CAMEL YELLOW,TRIM20

main71908-77010-J1iLFA10201012-201212

BLUE,TRIM20

main71908-77010-K0iLFA10201012-201212

PURPLE,TRIM20

71910AHEADREST ASSY, FRONT SEAT

main71910-77020-A1iLFA10201012-201212

CREAM,TRIM20,*361

main71910-77020-C1iLFA10201012-201212

BLACK,TRIM20,*361

main71910-77020-D2iLFA10201012-201212

RED,TRIM20,*361

main71910-77020-D3iLFA10201012-201212

BORDEAUX,TRIM20,*361

main71910-77020-E3iLFA10201012-201212

SADDLE TAN,TRIM20,*361

main71910-77020-E4iLFA10201012-201212

ORANGE,TRIM20,*361

main71910-77020-E5iLFA10201012-201212

BLACKISH BROWN,TRIM20,*361

main71910-77020-F1iLFA10201012-201212

CAMEL YELLOW,TRIM20,*361

main71910-77020-J1iLFA10201012-201212

BLUE,TRIM20,*361

main71910-77020-K1iLFA10201012-201212

VIOLET,TRIM20,*361

71920AHEADREST ASSY, FRONT SEAT, LH

main71920-77020-A1iLFA10201012-201212

CREAM,TRIM20,*361

main71920-77020-C1iLFA10201012-201212

BLACK,TRIM20,*361

main71920-77020-D2iLFA10201012-201212

RED,TRIM20,*361

main71920-77020-D3iLFA10201012-201212

BORDEAUX,TRIM20,*361

main71920-77020-E3iLFA10201012-201212

SADDLE TAN,TRIM20,*361

main71920-77020-E4iLFA10201012-201212

ORANGE,TRIM20,*361

main71920-77020-E5iLFA10201012-201212

BLACKISH BROWN,TRIM20,*361

main71920-77020-F1iLFA10201012-201212

CAMEL YELLOW,TRIM20,*361

main71920-77020-J1iLFA10201012-201212

BLUE,TRIM20,*361

main71920-77020-K1iLFA10201012-201212

VIOLET,TRIM20,*361

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-77020iLFA10201012-201212

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-77020iLFA10201012-201212

72277PROTECTOR, SEAT SLIDE POSITION SENSOR,

main72277-33010iLFA10201012-201212

72331BFITTING PARTS KIT, FRONT SEAT ADJUSTER

main72331-77010iLFA10201012-201212

72331CFITTING PARTS KIT, FRONT SEATBACK FRAME

main72331-77020iLFA10201012-201212

78899BOLT, FRONT SEAT

main78899-77010iLFA10201012-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7189877010RETAINER, REAR SEATBACK COVER SIDE

main71898-77010

7255777010SPACER, RECLINING ADJUSTER

main72557-77010

9010506290

main90105-06290

9020106045

main90201-06045

9046400551

main90464-00551

9046710203

main90467-10203

9418560800

main94185-60800

46 parts on this diagram · 4 diagrams in section
