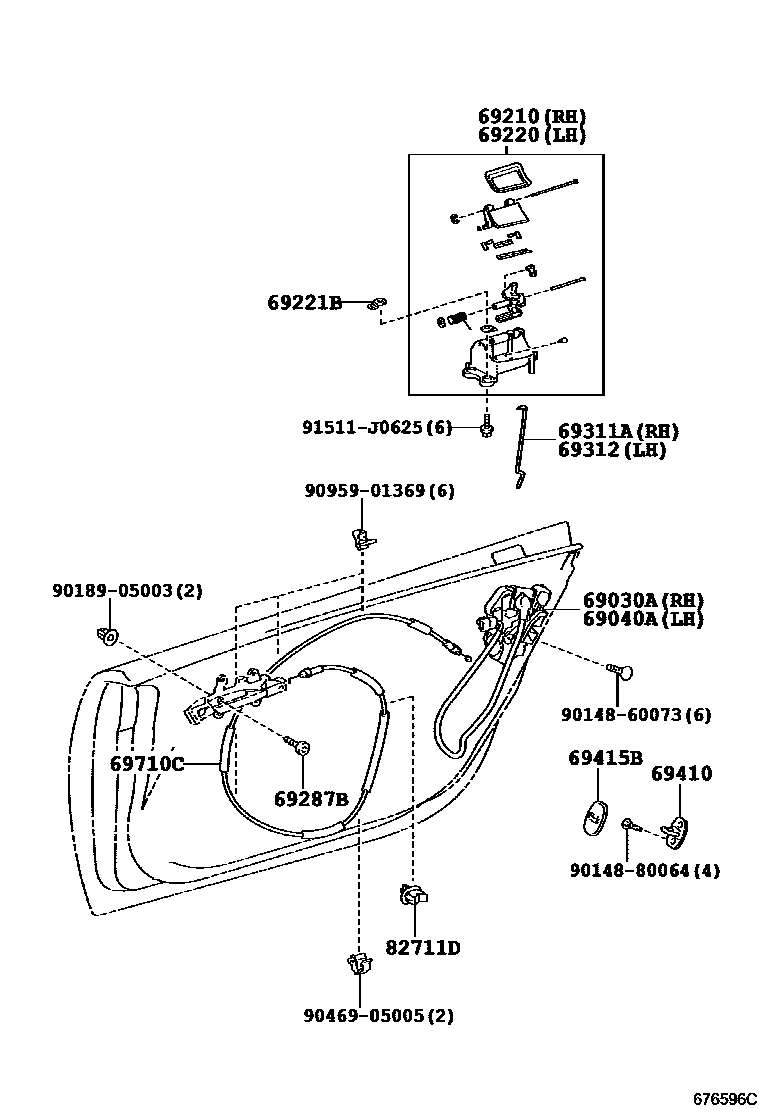

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PAINT REQ.
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PAINT REQ.
69221BPLATE, FRONT DOOR OUTSIDE HANDLE BASE
69287BSHAFT, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL
82711DCLAMP, WIRING HARNESS
9014860073
main90148-60073
9014880064
main90148-80064
9018905003
main90189-05003
9046905005
main90469-05005
9095901369
main90959-01369
91511J0625
main91511-J0625
18 parts on this diagram · 1 diagram in section
