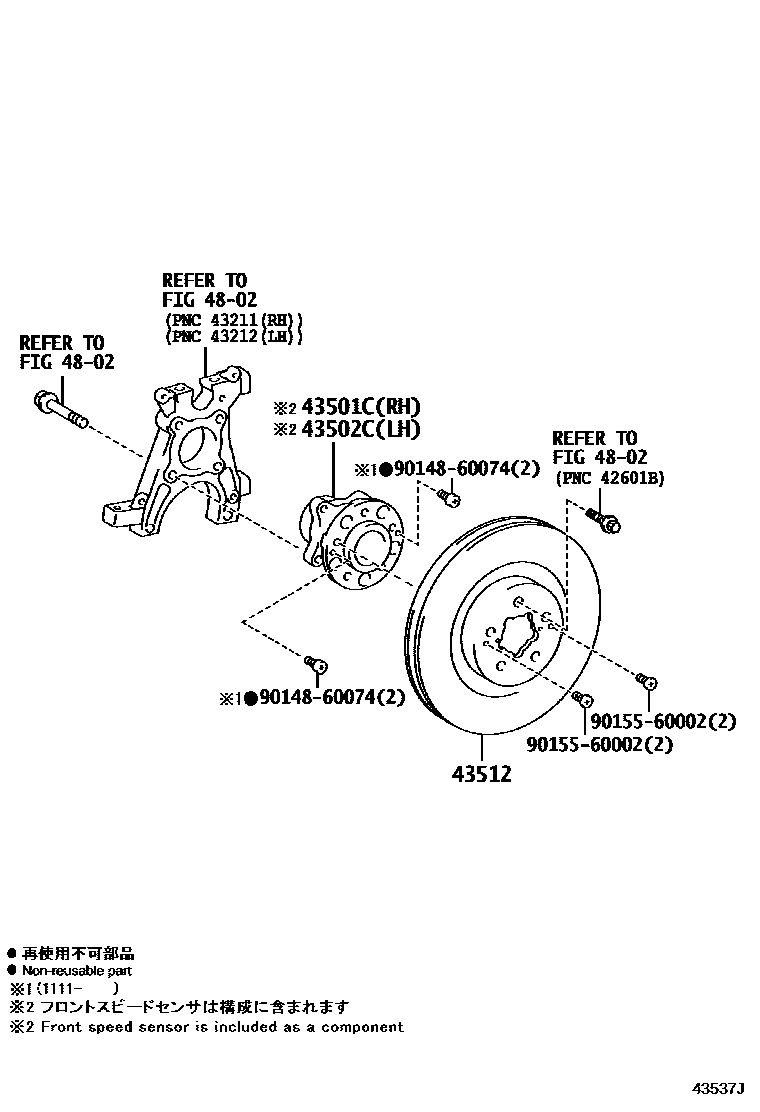

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-77010iLFA10201012-201110

main43550-77011iLFA10201111-201212

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-77010iLFA10201012-201110

main43560-77011iLFA10201111-201212

43512DISC, FRONT

main43512-0W090×2iLFA10201012

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9014860074

main90148-60074

9015560002

main90155-60002

6 parts on this diagram · 1 diagram in section
