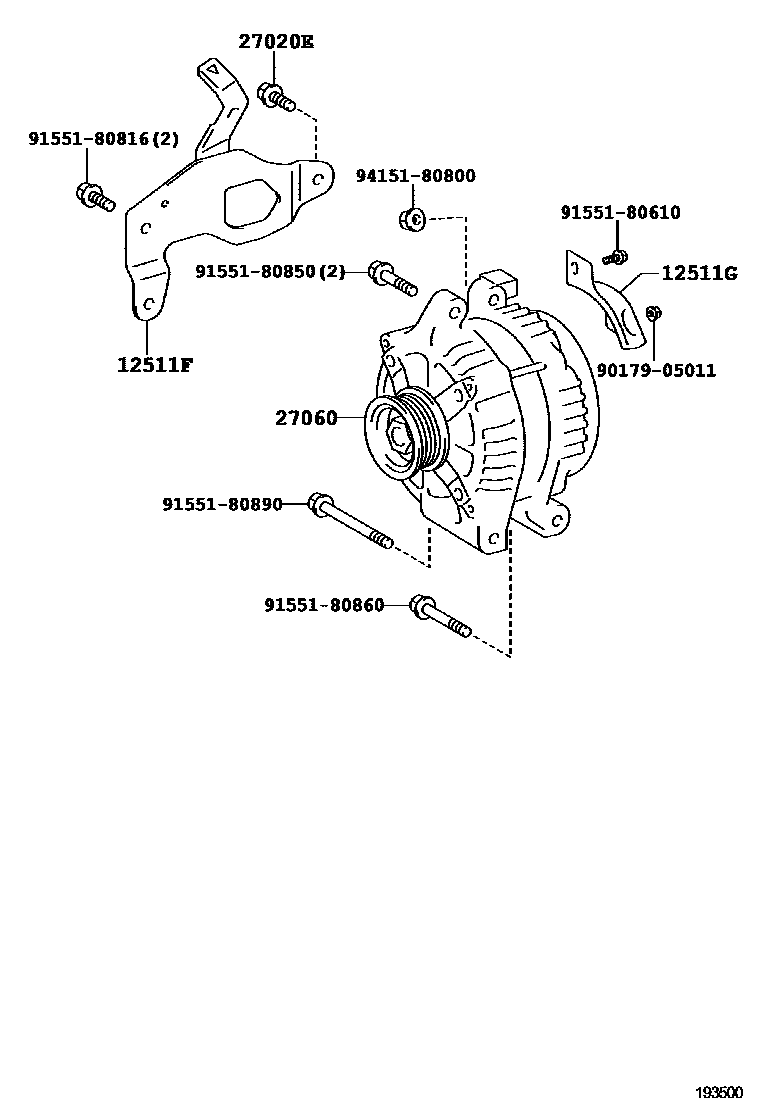

ALTERNATOR

12511FBRACKET, ALTERNATOR, NO.1

main12511-45020i1LRGUE..LFA10201012

12511GBRACKET, ALTERNATOR, NO.2

main12511-45030i1LRGUE..LFA10201012

27020EBOLT(FOR ALTERNATOR)

main91552-81020i1LRGUE..LFA10201012

27060ALTERNATOR ASSY, W/REGULATOR

main27060-45060i1LRGUE..LFA10201012

9017905011

main90179-05011

9155180610

main91551-80610

9155180816

main91551-80816

9155180850

main91551-80850

9155180860

main91551-80860

9155180890

main91551-80890

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
