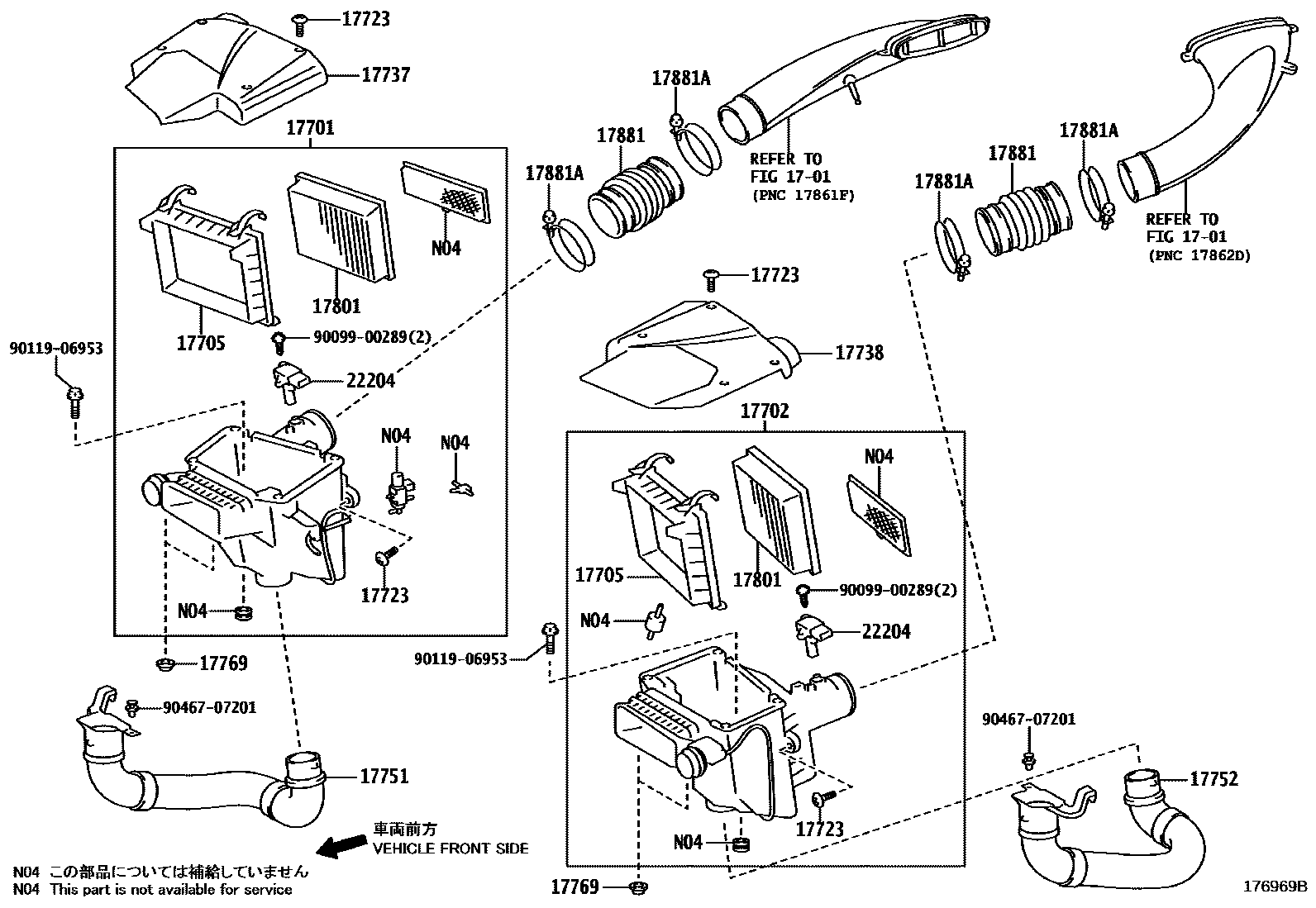

AIR CLEANER

1701MANIFOLD

→ Go to FIG 17-01

17701CASE SUB-ASSY, AIR CLEANER

main17701-45240i1LRGUE..LFA10201012-201204

main17701-45241i1LRGUE..LFA10201205

17702CASE SUB-ASSY, AIR CLEANER, NO.2

main17702-45030i1LRGUE..LFA10201012-201204

main17702-45031i1LRGUE..LFA10201205

17705CAP SUB-ASSY, AIR CLEANER

main17705-45050×2i1LRGUE..LFA10201012

17723BOLT, AIR CLEANER CAP

main17723-45010×16i1LRGUE..LFA10201012

17737COVER, AIR CLEANER

main17737-45010i1LRGUE..LFA10201012

17738COVER, AIR CLEANER, NO.2

main17738-45010i1LRGUE..LFA10201012

17751INLET, AIR CLEANER, NO.1

main17751-45020i1LRGUE..LFA10201012

17752INLET, AIR CLEANER, NO.2

main17752-45020i1LRGUE..LFA10201012

17769SUPPORT, AIR CLEANER

main17769-38010×4i1LRGUE..LFA10201012

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-45030×2i1LRGUE..LFA10201012-201204

main17801-45031×2i1LRGUE..LFA10201205-201212

17881HOSE, AIR CLEANER, NO.1

main17881-45030×2i1LRGUE..LFA10201012

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880×4i1LRGUE..LFA10201012

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-28010×2i1LRGUE..LFA10201012

9009900289

main90099-00289

9011906953

main90119-06953

9046707201

main90467-07201

17 parts on this diagram · 1 diagram in section
