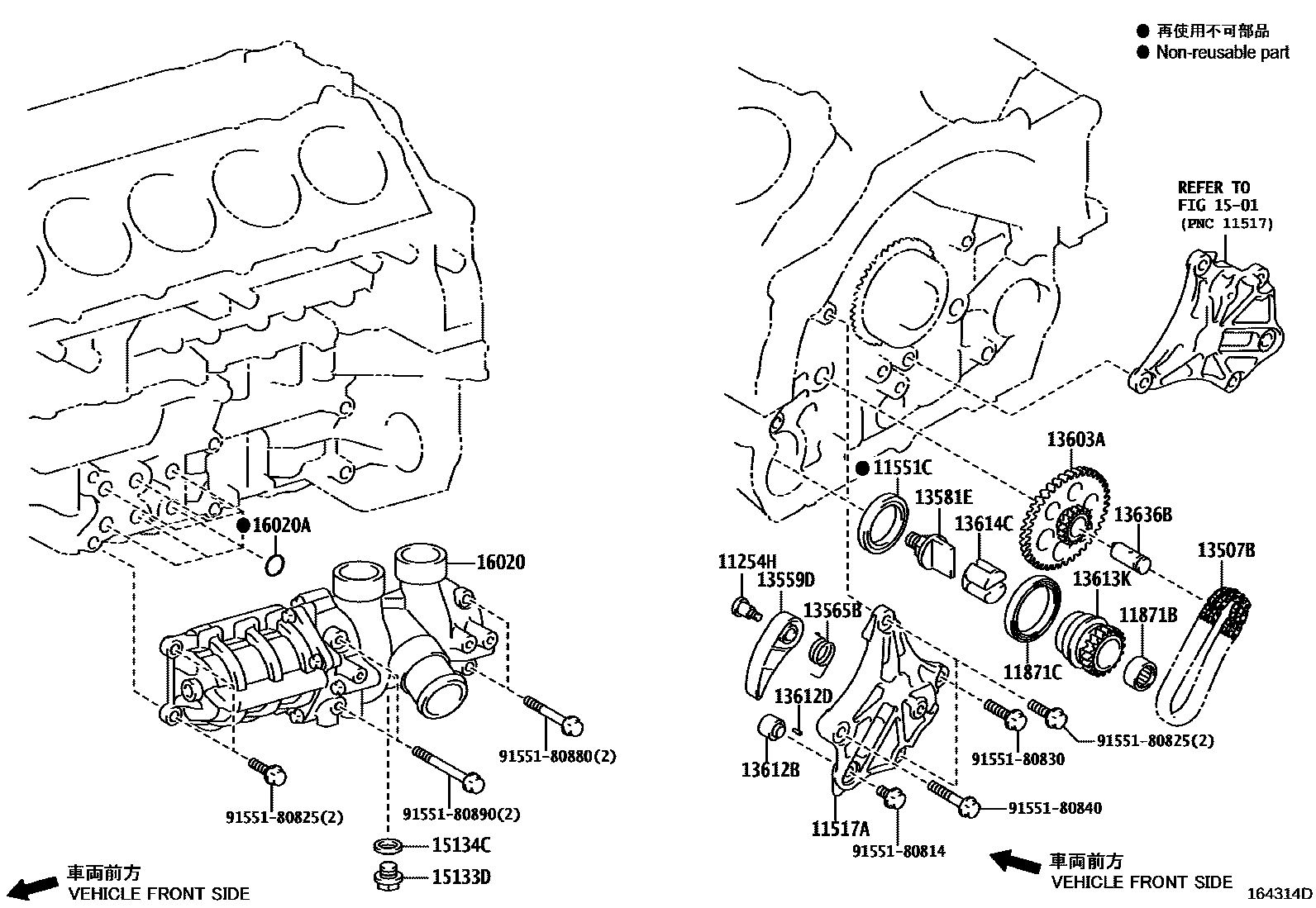

WATER PUMP

11254HBOLT, V-BANK COVER

main11254-45090i1LRGUE..LFA10201012

11517AHOUSING, BALANCESHAFT, NO.1

main11517-45010-A0i1LRGUE..LFA10201012

MARK A

main11517-45010-B0i1LRGUE..LFA10201012

MARK B

11551CSEAL, CRANKSHAFT REAR OIL

main11551-45030i1LRGUE..LFA10201012

11871BBEARING, OIL PUMP DRIVE SHAFT, NO.1

main11871-45010i1LRGUE..LFA10201012

11871CBEARING, OIL PUMP DRIVE SHAFT, NO.2

main11871-45020i1LRGUE..LFA10201012

13507BCHAIN SUB-ASSY, WATER PUMP DRIVE

main13507-45010i1LRGUE..LFA10201012

13559DSLIPPER, CHAIN TENSIONER

main13559-45020i1LRGUE..LFA10201012

13565BSPRING, CHAIN DAMPER

main13565-45010i1LRGUE..LFA10201012

13581ESHAFT, IDLE GEAR

main13581-45020i1LRGUE..LFA10201012

13603AGEAR SUB-ASSY, BALANCESHAFT

main13603-45010i1LRGUE..LFA10201012

13612BSHAFT, PUMP DRIVE

main13612-45010i1LRGUE..LFA10201012

13612DPIN, STRAIGHT(FOR PUMP DRIVE SHAFT)

main90250-03091i1LRGUE..LFA10201012

13613KSPROCKET, HYDRAULIC PUMP DRIVE

main13613-45010i1LRGUE..LFA10201012

13614CCOUPLING, SUPPLY PUMP DRIVE

main13614-45010i1LRGUE..LFA10201012

13636BSHAFT, BALANCESHAFT DRIVE GEAR

main13636-45010-A0i1LRGUE..LFA10201012

MARK A

main13636-45010-B0i1LRGUE..LFA10201012

MARK B

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15133DPLUG, OIL PUMP RELIEF VALVE

main15133-64041i1LRGUE..LFA10201012

15134CGASKET, OIL PUMP RELIEF VALVE

main15134-67020i1LRGUE..LFA10201012

16020PUMP ASSY, WATER

main16020-45050i1LRGUE..LFA10201012

16020ARING, O(FOR WATER PUMP)

main96721-24018×6i1LRGUE..LFA10201012

9155180814

main91551-80814

9155180825

main91551-80825

9155180830

main91551-80830

9155180840

main91551-80840

9155180880

main91551-80880

9155180890

main91551-80890

26 parts on this diagram · 1 diagram in section
