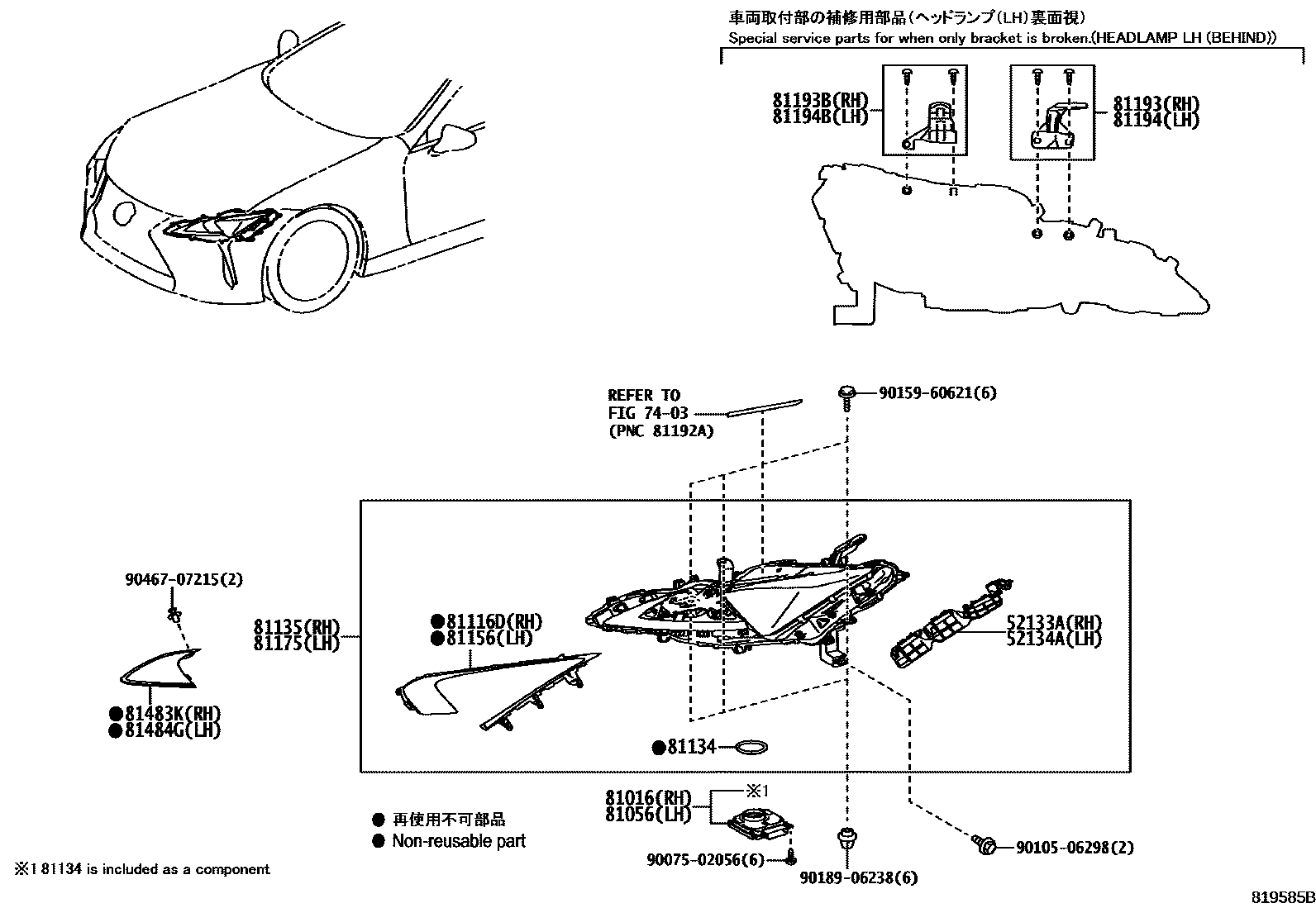

Toyota LEXUS LC500 (CV) — HEADLAMP
52133ABRACKET, FRONT BUMPER, RH
52134ABRACKET, FRONT BUMPER, LH
7403CAUTION PLATE (EXTERIOR & INTERIOR)
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
81116DRIM, HEAD LAMP, RH
81134GASKET, HEADLAMP
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81483KCOVER, DAYTIME RUNNING LAMP, RH
81484GCOVER, DAYTIME RUNNING LAMP, LH
9007502056
9010506298
9015960621
9018906238
9046707215
21 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota LEXUS LC500 (CV)
This section contains 38 genuine Toyota parts for the HEADLAMP system of the Toyota LEXUS LC500 (CV). Key components include: BRACKET, FRONT BUMPER, RH, BRACKET, FRONT BUMPER, LH, CAUTION PLATE (EXTERIOR & INTERIOR), COMPUTER SUB-ASSY, HEADLAMP, RH NO.1, COMPUTER SUB-ASSY, HEADLAMP, LH NO.1.
