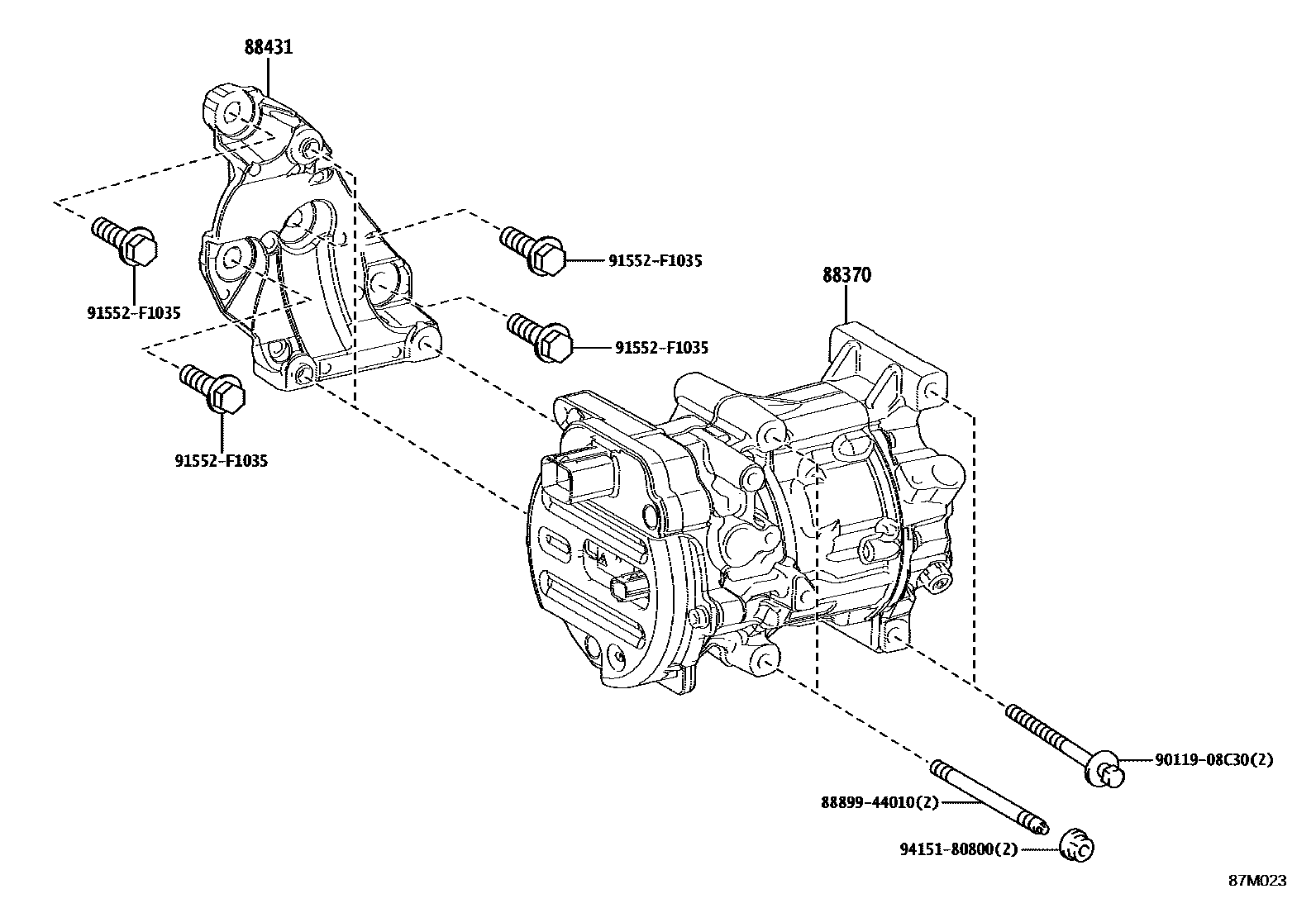

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88370COMPRESSOR ASSY, W/MOTOR

main88370-11011iGWZ100202305-202507

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-11010iGWZ100202305-202507

8889944010COVER, EVAPORATOR

main88899-44010

9011908C30

main90119-08C30

91552F1035

main91552-F1035

9415180800

main94151-80800

6 parts on this diagram · 2 diagrams in section
