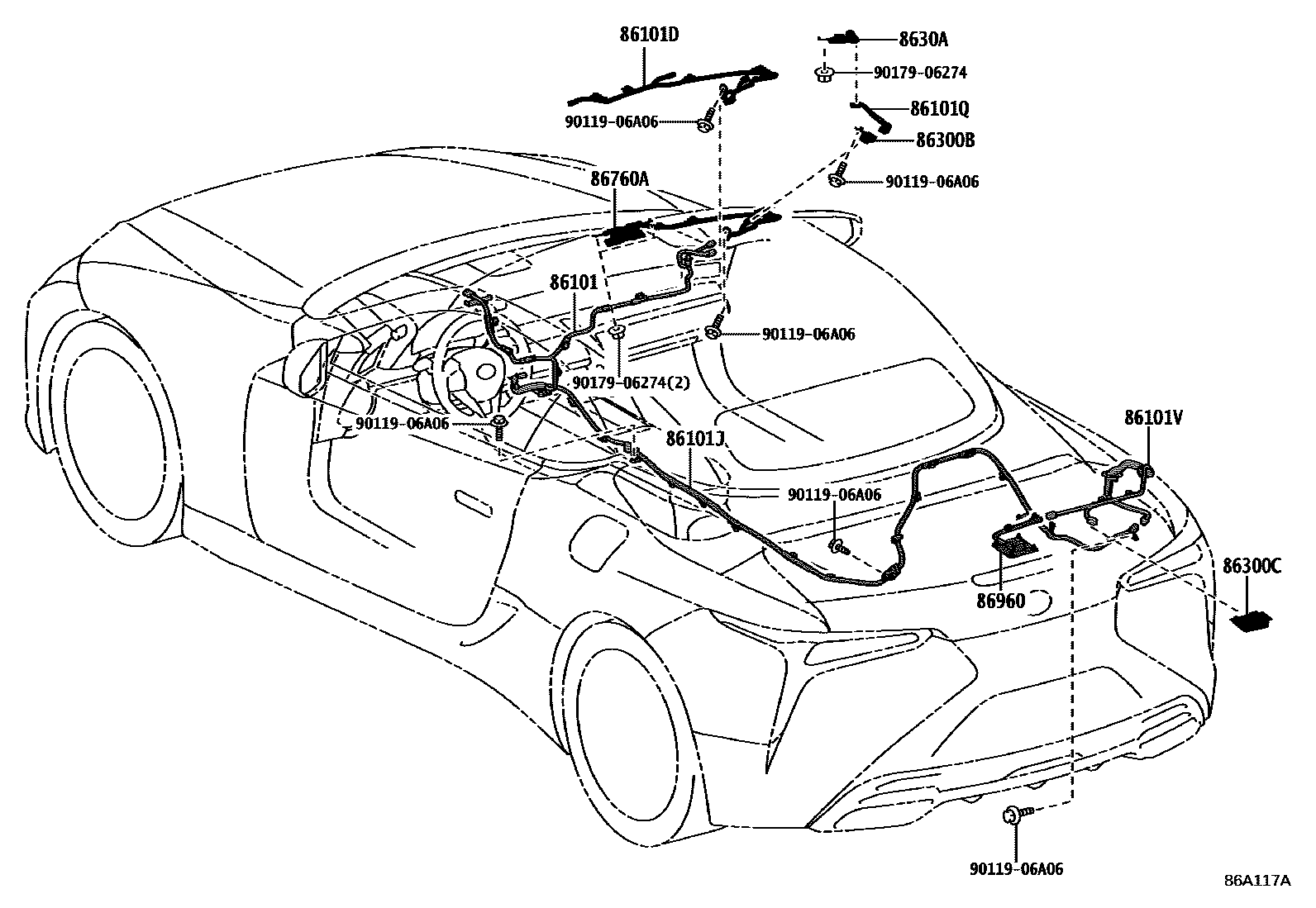

ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101VCORD SUB-ASSY, ANTENNA, NO.6
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300CANTENNA ASSY, AMPLIFIER, NO.2
8630AANTENNA SUB-ASSY, RADIO
86760AANTENNA ASSY, TELEPHONE
GUAM SPEC
GUAM SPEC
86960ANTENNA ASSY, SATELLITE RADIO
HAWAII SPEC
MEXICO SPEC
PUERTO RICO SPEC
GUAM SPEC
9011906A06
main90119-06A06
9017906274
main90179-06274
12 parts on this diagram · 2 diagrams in section
