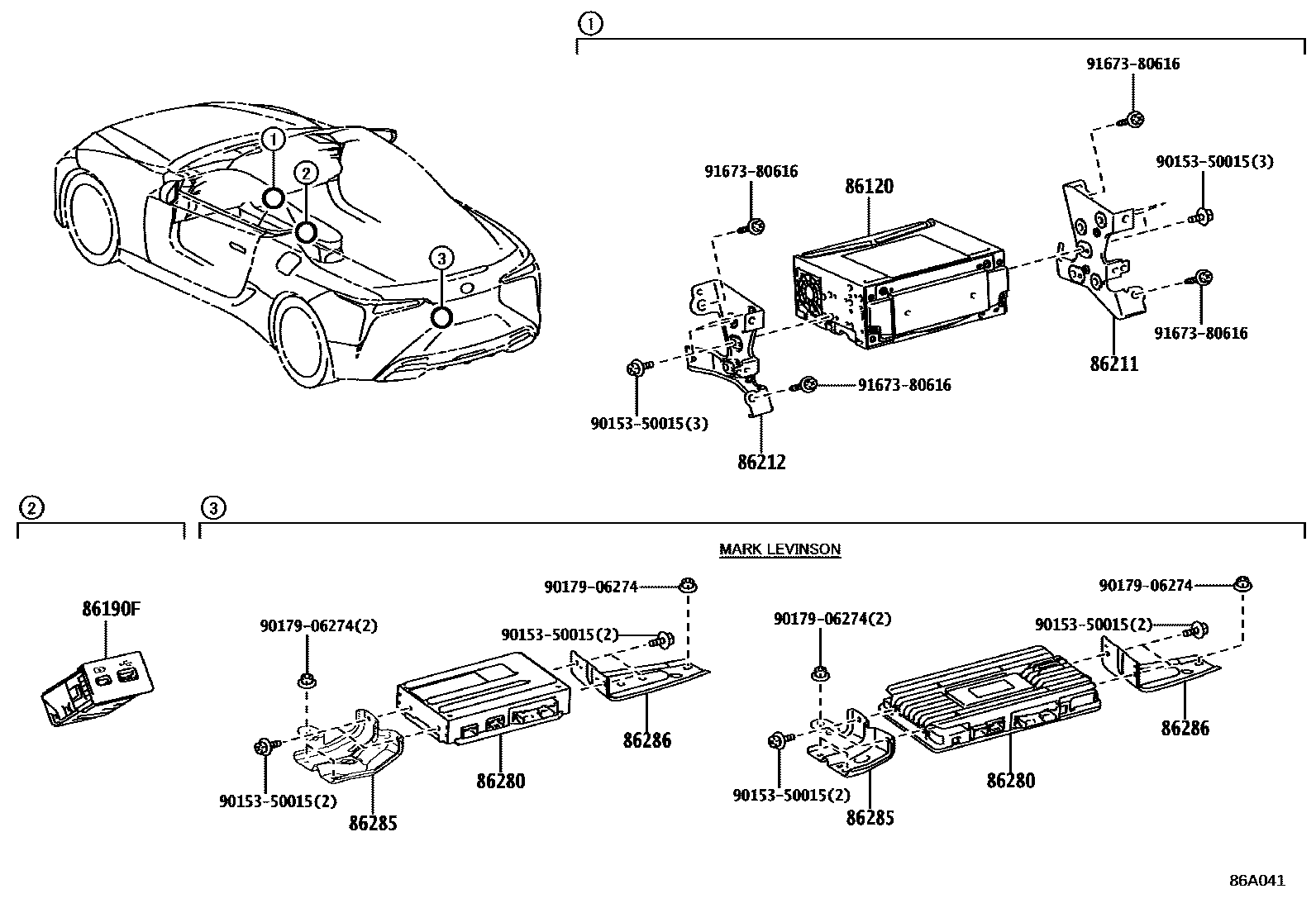

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1CONDENSER 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-11J20iGWZ100202305-202507

PANASONIC

main86120-11L10iURZ100..CONV202305

PANASONIC

86190FADAPTER ASSY, STEREO JACK

main86190-48090iGWZ100202305-202507

86211BRACKET, RADIO, NO.1

main86211-11020iGWZ100202305-202507

86212BRACKET, RADIO, NO.2

main86212-11020iGWZ100202305-202507

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-11080iGWZ100202305-202507

main86280-11120iURZ100..CONV202305

86285BRACKET, AMPLIFIER, NO.1

main86285-11010iGWZ100202305-202507

86286BRACKET, AMPLIFIER, NO.2

main86286-11050iGWZ100202305-202507

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

10 parts on this diagram · 3 diagrams in section
