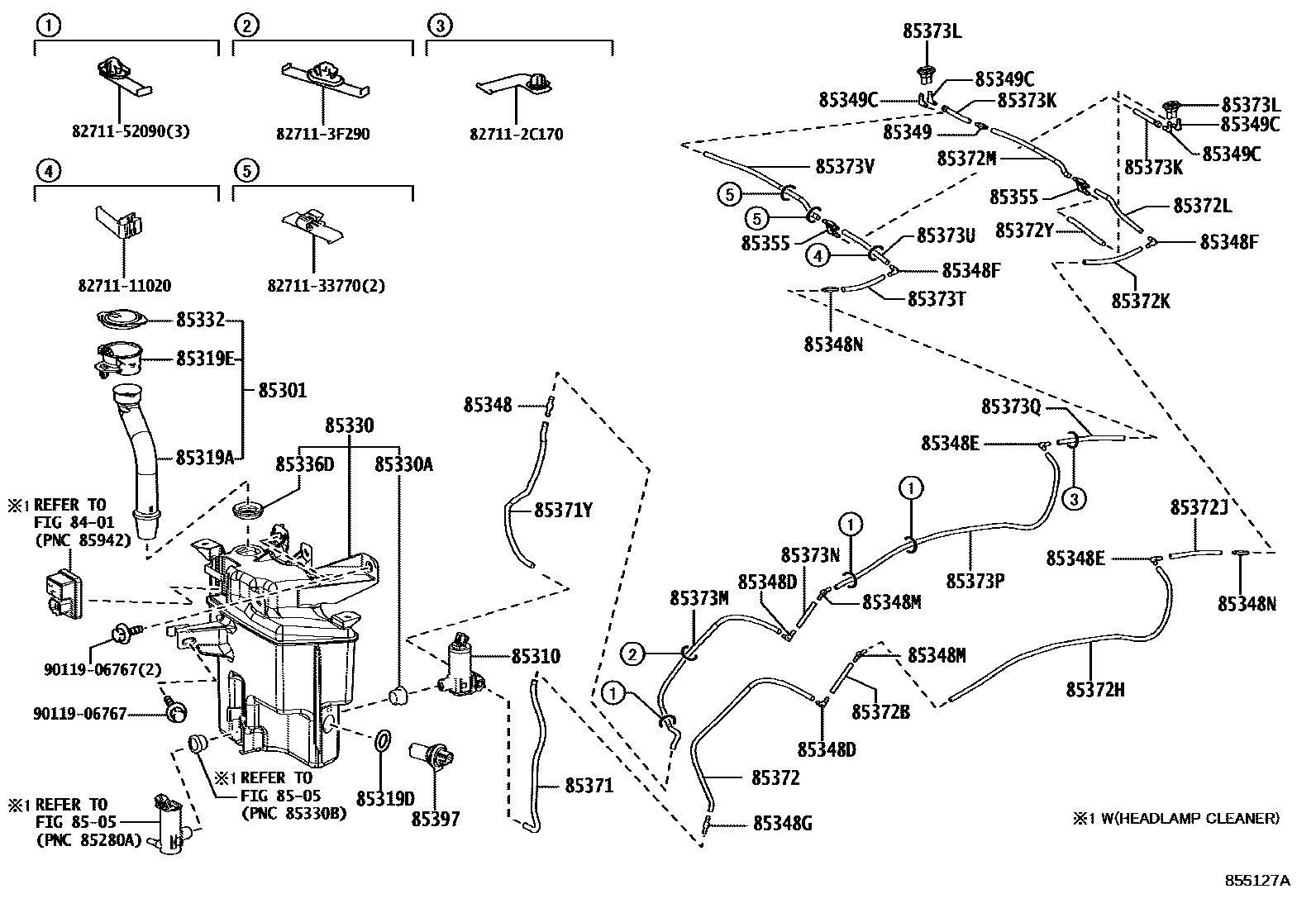

WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-11011i202305-202507

main85301-11021i202305

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11040i202305-202507

85319AHOSE, INLET

main85319-11010i202305-202507

main85319-11020i202305

85319DPACKING, FRONT WASHER

main85319-33230i202305-202507

85319EINLET WASHER

main85318-11010i202305-202507

main85318-11020i202305

85330JAR ASSY, WINDSHIELD WASHER

main85315-11010i202305-202507

main85355-11011i202305-202410

KOREA SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202305-202507

85332CAP, WINDSHIELD WASHER JAR

main85316-11011i202305-202507

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i202305-202507

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202305-202507

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200×2i202305-202507

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200×2i202305-202507

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200×2i202305-202507

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i202305-202507

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-14560×2i202305-202507

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-10260×2i202305-202507

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i202305-202507

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-20200×4i202305-202507

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020×2i202305-202507

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i202305-202507

L=1450(*H,L=300)

85371YHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT), NO.2

main90446-07001i202305-202507

L=1800(*H,L=305)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299i202305-202507

L=1000(*H,L=400)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202305-202507

L=1450(*H,L=60)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i202305-202507

L=1450(*H,L=570)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i202305-202507

L=1450(*H,L=90)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i202305-202507

L=1450(*H,L=115)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080i202305-202507

L=1450(*H,L=140)

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080i202305-202507

L=1450(*H,L=230)

85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8

main90099-33080i202305-202507

L=1450(*H,L=90)

85373KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9

main90099-33080×2i202305-202507

L=1450(*H,L=70)

85373LGROMMET, WASHER

main85373-11020×2i202305-202507

85373MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10

main90099-33080i202305-202507

L=1450(*H,L=390)

85373NHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11

main90099-33080i202305-202507

L=1450(*H,L=50)

85373PHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12

main90099-33080i202305-202507

L=1450(*H,L=570)

85373QHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13

main90099-33080i202305-202507

L=1450(*H,L=120)

85373THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14

main90099-33080i202305-202507

L=1450(*H,L=85)

85373UHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15

main90099-33080i202305-202507

L=1450(*H,L=120)

85373VHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16

main90099-33080i202305-202507

L=1450(*H,L=330)

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i202305-202507

8271111020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-11020

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

8271133770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33770

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906767

main90119-06767

47 parts on this diagram · 2 diagrams in section
