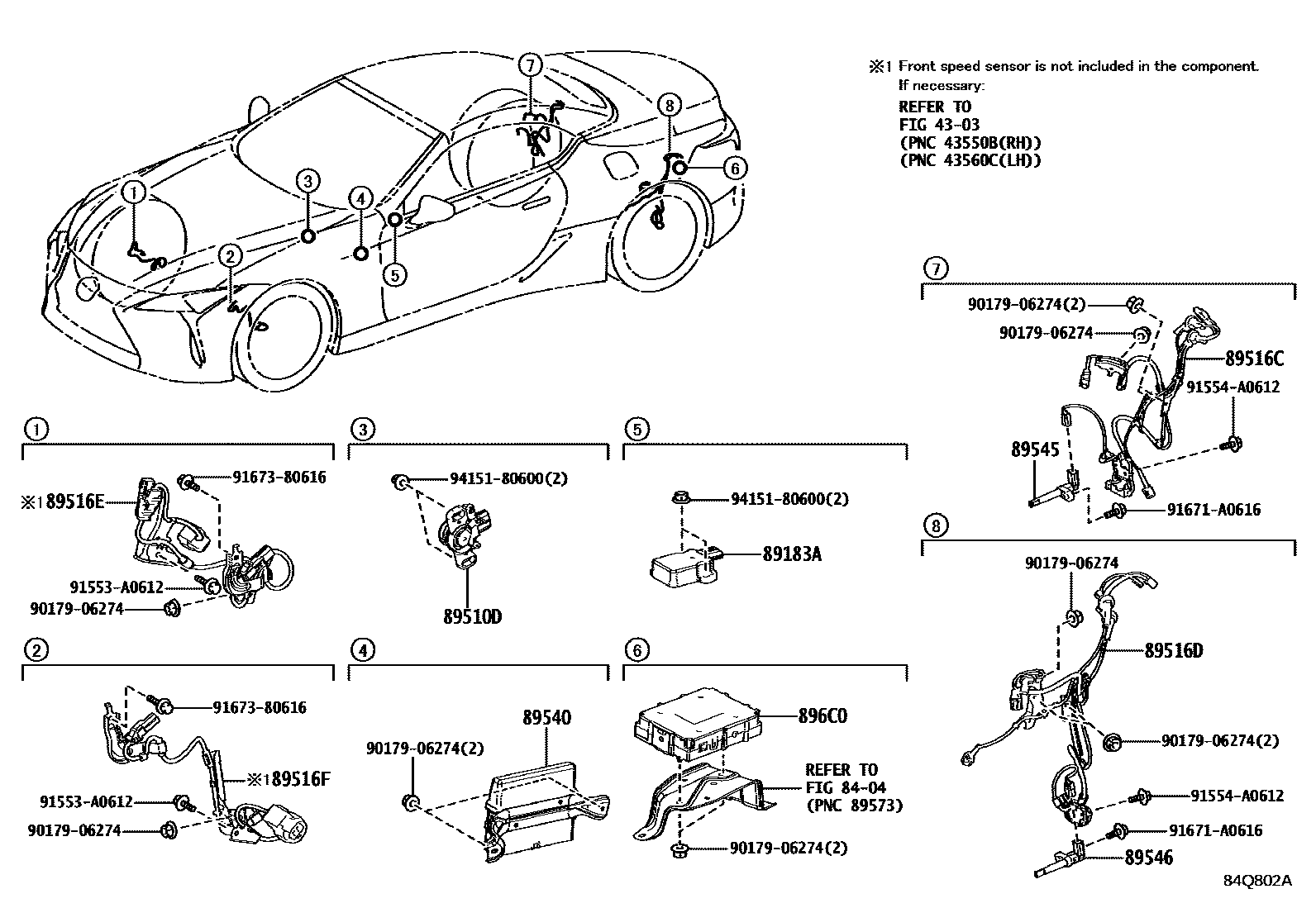

ABS & VSC
4303
8404
89183ASENSOR, YAWRATE
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516CWIRE, SKID CONTROL SENSOR, RH
89516DWIRE, SKID CONTROL SENSOR, LH
89516EWIRE, SKID CONTROL SENSOR, FRONT RH
89516FWIRE, SKID CONTROL SENSOR, FRONT LH
89540COMPUTER ASSY, SKID CONTROL
REAR DIFFERENTIAL-FINAL GEAR RATIO = 2.937,WITH(LSD)
"S+ PACKAGE"&REAR DIFFERENTIAL-FINAL GEAR RATIO = 2.937,WITH(LSD)&FOUR-WHEEL STEERING-WITH&FRONT WHEEL BRAKE-20INCHES DISC(HIGH FRICTION BRAKE PAD)
"S+ PACKAGE"&REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.357,WITH(LSD)&FOUR-WHEEL STEERING-WITH&FRONT WHEEL BRAKE-20INCHES DISC(HIGH FRICTION BRAKE PAD)
REAR DIFFERENTIAL-FINAL GEAR RATIO = 2.937,WITH(LSD)&FRONT WHEEL BRAKE-20INCHES DISC(HIGH FRICTION BRAKE PAD)
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
896C0SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET
9017906274
main90179-06274
91553A0612
main91553-A0612
91554A0612
main91554-A0612
91671A0616
main91671-A0616
9167380616
main91673-80616
9415180600
main94151-80600
18 parts on this diagram · 2 diagrams in section
