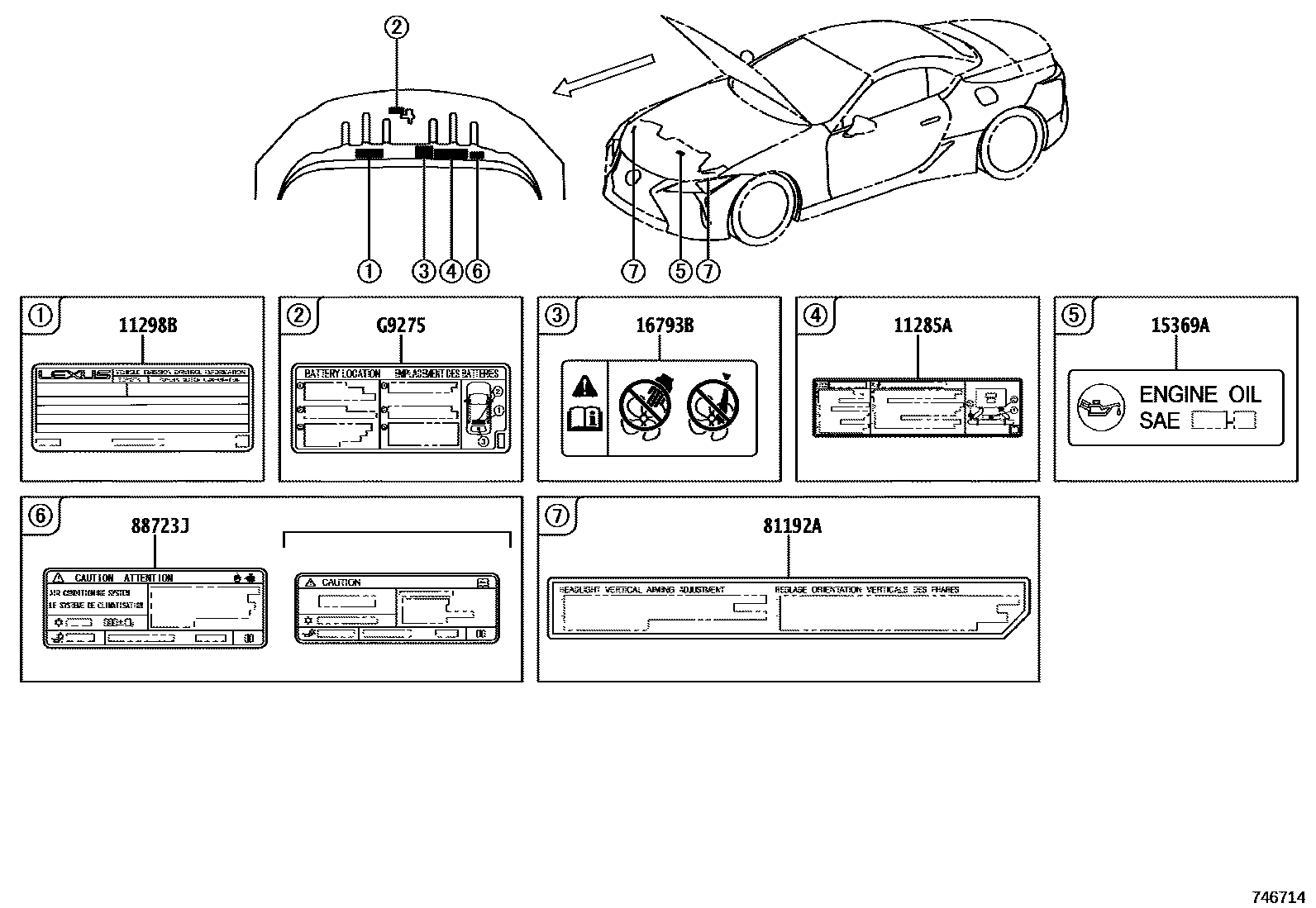

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-31080i8GRFXS..GWZ100202305-202507

main11285-70020i2URGSE..URZ100202305

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-31P20i8GRFXS..GWZ100202305-202410

main11298-31P21i8GRFXS..GWZ100202410-202507

15369ALABEL, ENGINE OIL INFORMATION

main15369-31010i8GRFXS..GWZ100202305-202507

16793BLABEL, COOLING FAN INFORMATION

main16793-36030i8GRFXS..GWZ100202305-202507

81192ASEAL, HEADLAMP

main81192-50010×2iGWZ100202305-202507

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88723-11020iGWZ100202305-202507

main88723-11050supersedes 88723-11010iURZ100202305-202410

KOREA SPEC

main88723-11060iGWZ100202305-202410

KOREA SPEC

G9275LABEL, BATTERY CAUTION, NO.1

mainG927511020iGWZ100202305-202507

7 parts on this diagram · 3 diagrams in section
