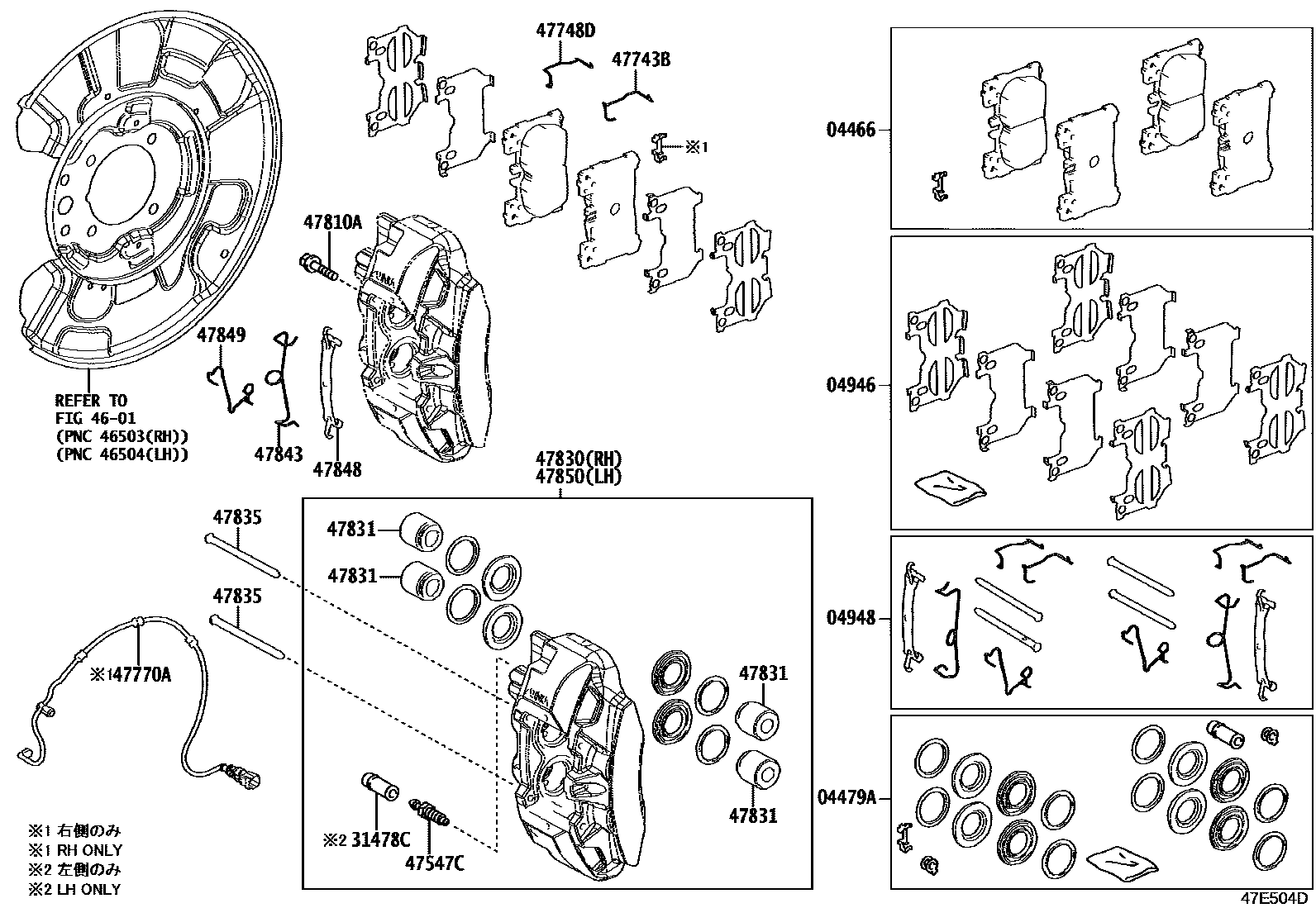

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-11040iGWZ100202305-202507

MARK NBK D6504H

main04466-11030iGWZ100,URZ100..CP202305-202502

MARK GA5503,FRONT WHEEL BRAKE-20INCHES DISC(HIGH FRICTION BRAKE PAD)

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-11010iGWZ100202305-202507

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-11010iGWZ100202305-202507

04948FITTING KIT, DISC BRAKE, REAR

main04948-11010iGWZ100202305-202507

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iGWZ100202305-202507

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010×2iGWZ100202305-202507

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47718-50210×2iGWZ100202305-202507

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47717-50210×2iGWZ100202305-202507

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-11020iGWZ100202305-202507

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12396×4iGWZ100202305-202507

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-11010iGWZ100202305-202507

47831PISTON, REAR DISC BRAKE

main47831-11010×8iGWZ100202305-202507

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140×4iGWZ100202305-202507

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-11010×2iGWZ100202305-202507

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-11010×2iGWZ100202305-202507

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47843-11020×2iGWZ100202305-202507

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-11010iGWZ100202305-202507

18 parts on this diagram · 1 diagram in section
