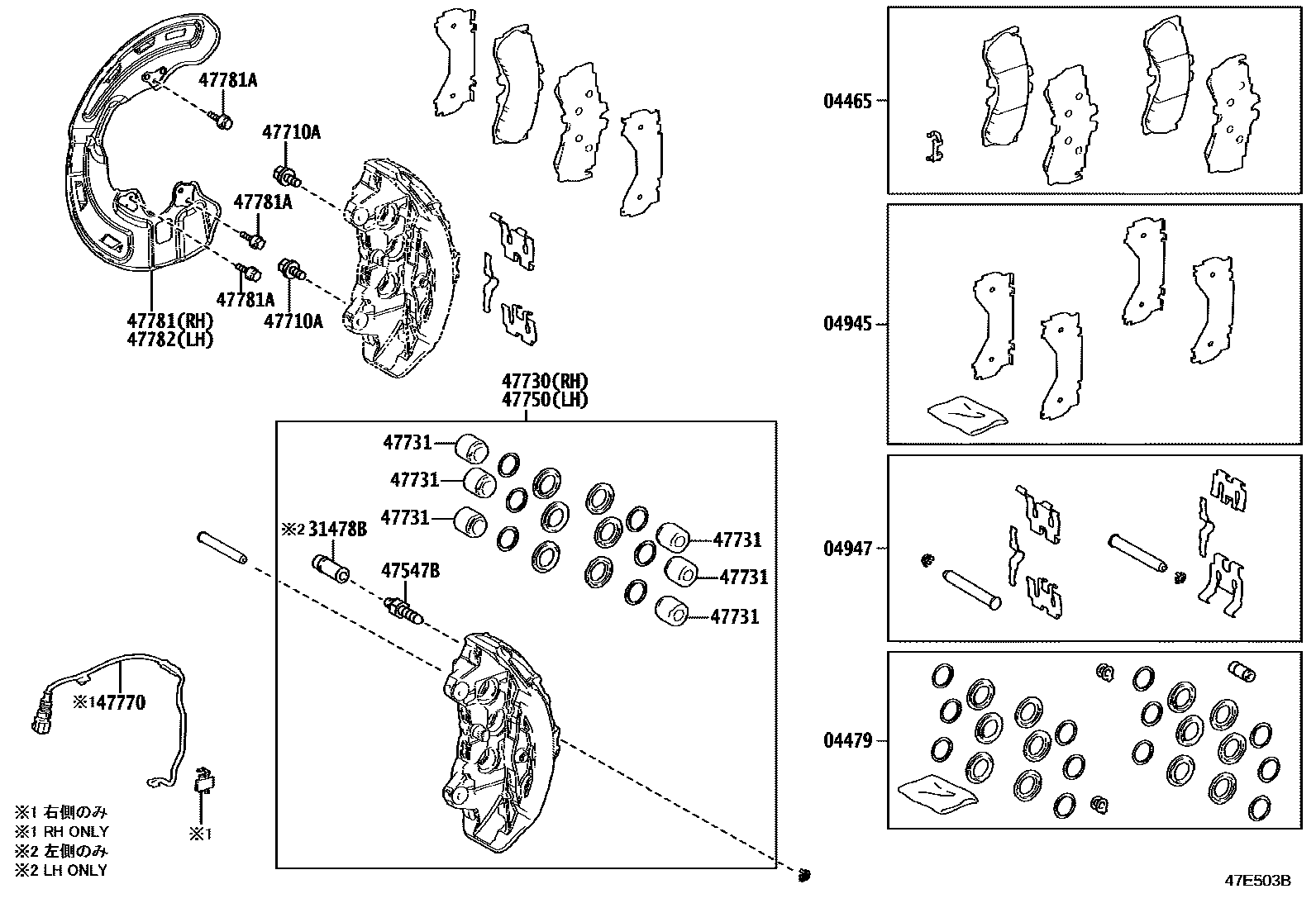

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-11040iURZ100202305

MARK NBK D6504H

main04465-11030supersedes 04465-11040iGWZ100202305-202502

MARK GA5503,REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.357,WITH(LSD)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-11010iGWZ100202305-202507

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-11011iGWZ100202305-202507

04947FITTING KIT, DISC BRAKE, FRONT

main04947-11010iGWZ100202305-202507

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGWZ100,URZ100202305

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2iGWZ100202305-202507

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180×4iGWZ100202305-202507

*14-1.5PX40-35.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-11050iGWZ100202305-202507

47731PISTON, FRONT DISC BRAKE

main47731-11050×12iGWZ100202305-202507

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-11040iGWZ100202305-202507

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-11010iGWZ100202305-202507

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-11010iGWZ100202305-202507

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508×6iGWZ100202305-202507

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-11010iGWZ100202305-202507

14 parts on this diagram · 1 diagram in section
