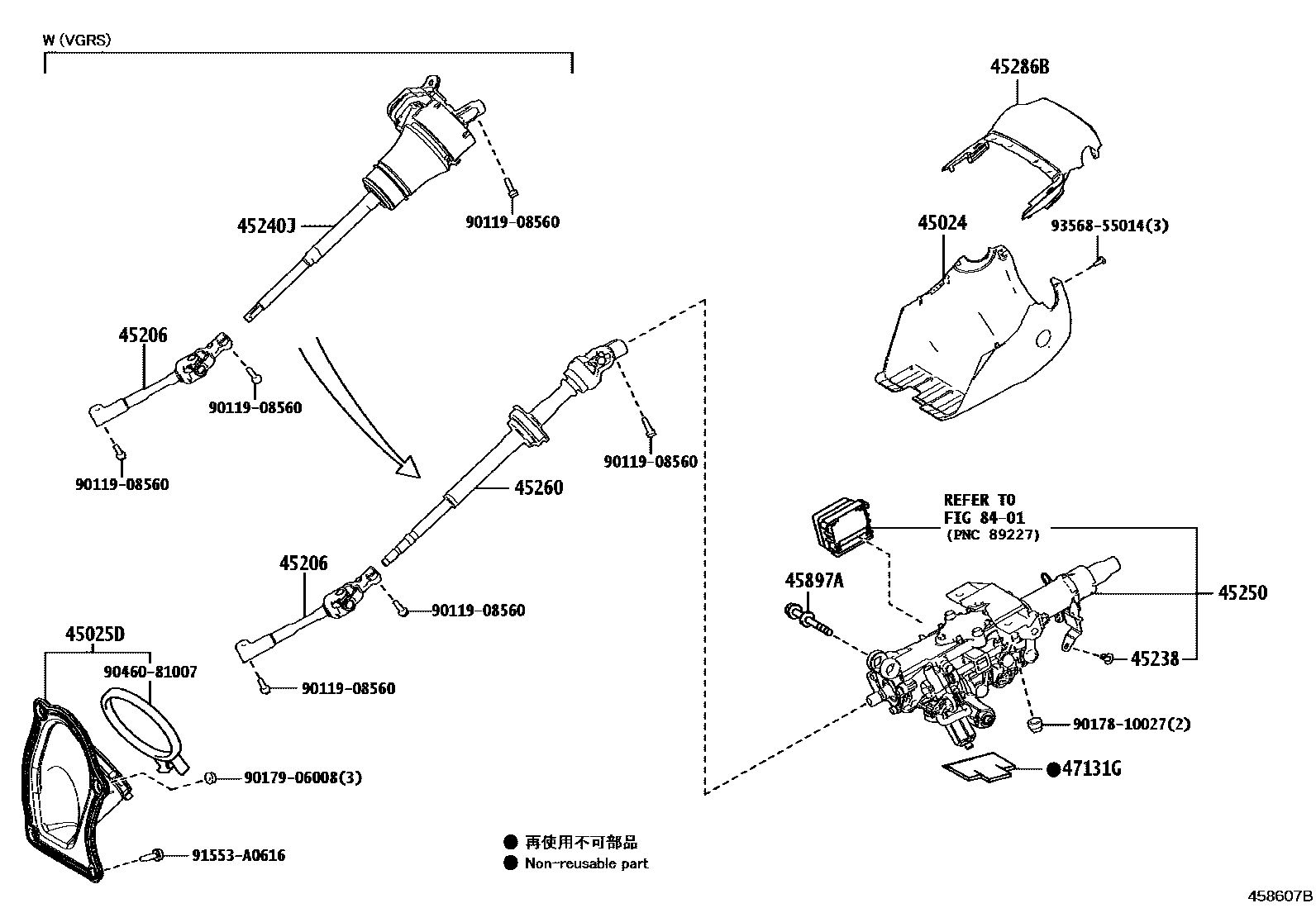

STEERING COLUMN & SHAFT

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-11010-C1iURZ100..CP202305

BLACK,TRIM03,2#,3#,4#

main45024-11010-C1iGWZ100202305-202507

BLACK,TRIM2#,3#,4#

main45024-11010-C1iURZ100..CONV202305

BLACK,TRIM04,2#,3#,4#

main45024-11010-J0iGWZ100202305-202507

BLUE,TRIM0#

main45024-11010-J0iURZ100..CONV202305

BLUE,TRIM01,02,8#

main45024-11010-J0iURZ100..CONV202305

BLUE,TRIM00,8#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-11010iGWZ100202305-202507

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-11011iGWZ100202305-202507

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iGWZ100202305-202507

45240JACTUATOR ASSY, STEERING

45250COLUMN ASSY, STEERING

main45250-46060iURZ100202305-202507

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-11031iURZ100202305-202507

45286BCOVER, STEERING COLUMN, UPR

main45286-11010-C1iURZ100..CONV202305

BLACK,TRIM04,2#,3#,4#

main45286-11010-C1iURZ100..CONV202305

BLACK,TRIM03,2#,3#,4#

main45286-11010-C1iGWZ100202305-202507

BLACK,TRIM2#,3#,4#

main45286-11010-J0iURZ100..CONV202305

BLUE,TRIM01,02,8#

main45286-11010-J0iGWZ100202305-202507

BLUE,TRIM0#

main45286-11010-J0iURZ100..CONV202305

BLUE,TRIM00,8#

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iGWZ100202305-202507

47131GCUSHION

main47131-11030iGWZ100202305-202507

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
