DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-48010×4i202305-202507

42601BBOLT, HUB (FOR AXLE)

main90942-02103×20i202305

42601FWHEEL, DISC (FOR FRONT)

main42611-WY450×2i202305-202410

21X8.5J, #, IE 24MY&TIRE & DISC WHEEL-245/40R21 & 275/35R21,BLACK,TYPE D:REFER ILLUST.

main4261A-11030×2supersedes 4261A-11050i202305-202507

21X8.5J,#,TIRE & DISC WHEEL-245/40R21 & 275/35R21,MACHINING,TYPE B:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main42611-WY460×2i202305-202410

21X9.5J, #, IE 24MY&TIRE & DISC WHEEL-245/40R21 & 275/35R21,BLACK,TYPE D:REFER ILLUST.

main4261A-11040×2supersedes 4261A-11060i202305-202507

21X9.5J,#,TIRE & DISC WHEEL-245/40R21 & 275/35R21,MACHINING,TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53140×4i202305-202507

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48060×4i202410-202507

main42607-48050×4supersedes 42607-48040i202305-202410

KOREA SPEC&TIRE & DISC WHEEL-245/40R21 & 275/35R21,MACHINING

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05050×4i202305-202507

42611UCAP, TIRE VALVE

main90942-05048×4i202305

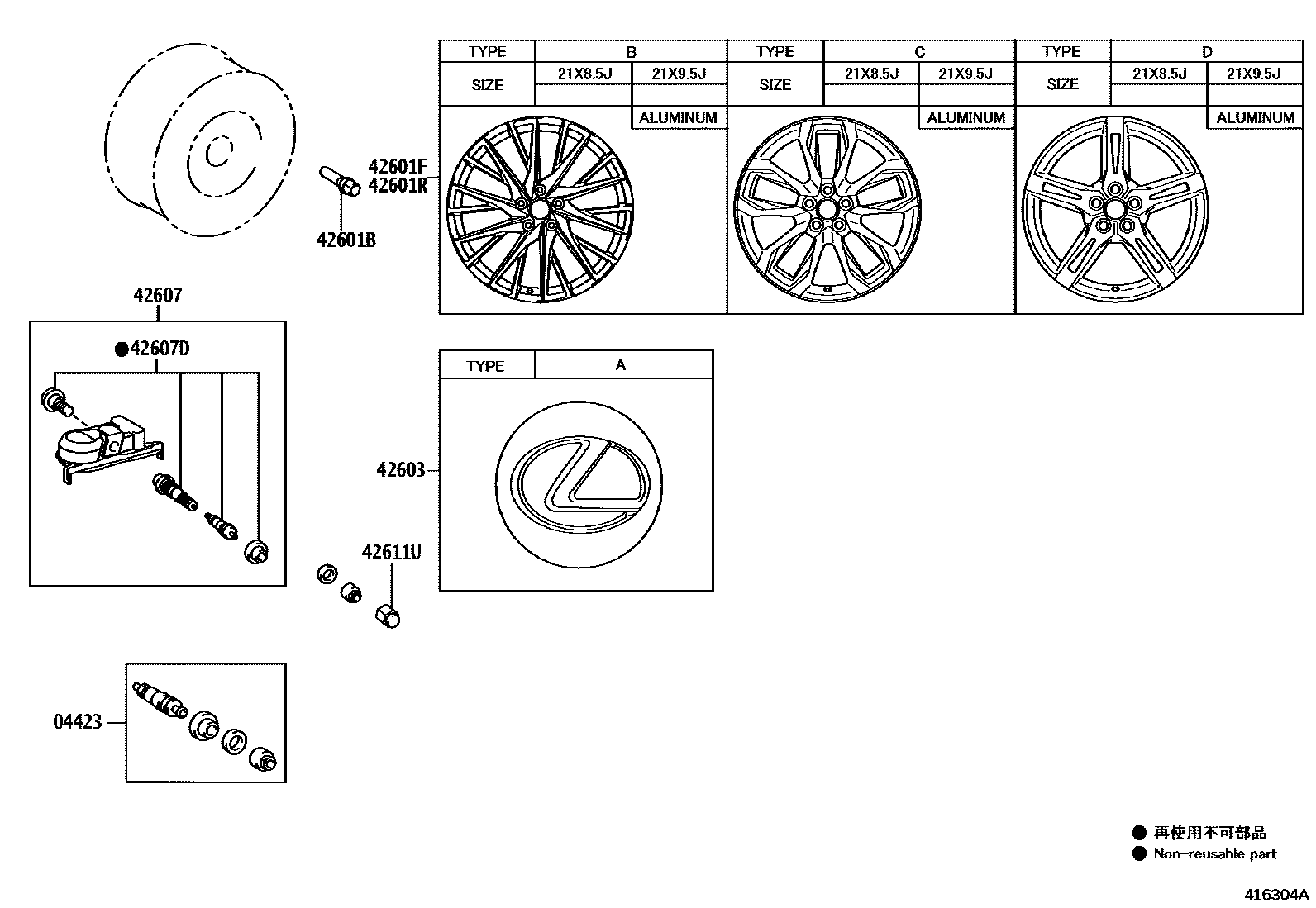

8 parts on this diagram · 1 diagram in section
