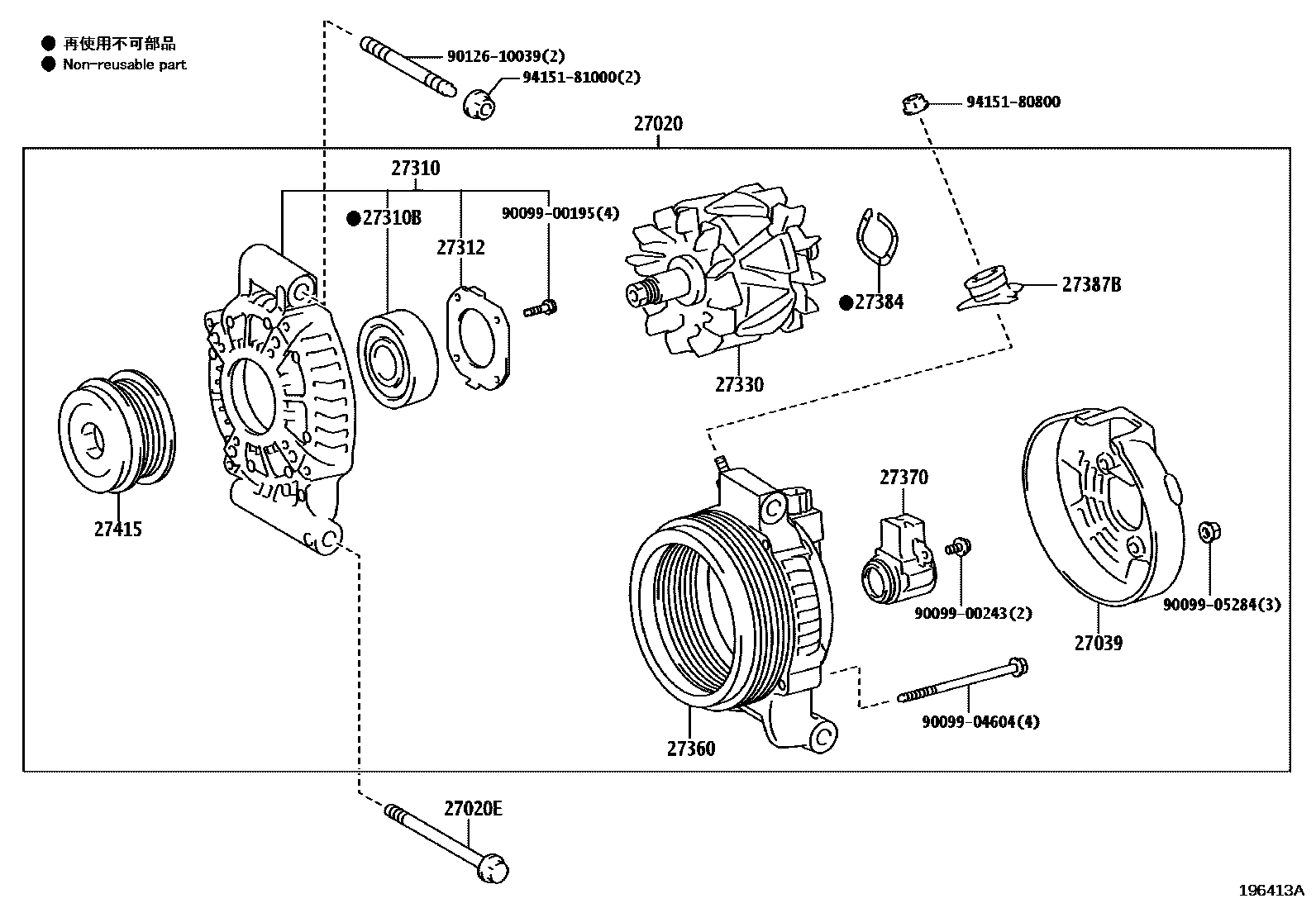

ALTERNATOR

27020ALTERNATOR ASSY

main27060-38170i2URGSE..URZ100202305

12V 180A

27020EBOLT(FOR ALTERNATOR)

main90105-10557×2i2URGSE..URZ100202305

27039COVER, ALTERNATOR REAR END

main27039-38150i2URGSE..URZ100202305

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-38250i2URGSE..URZ100202305

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10226i2URGSE..URZ100202305

27312PLATE, RETAINER

main27312-42010i2URGSE..URZ100202305

27330ROTOR ASSY, ALTERNATOR

main27330-38140i2URGSE..URZ100202305

27360COIL ASSY, ALTERNATOR

main27360-38250i2URGSE..URZ100202305

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i2URGSE..URZ100202305

27384WASHER

main27384-38130i2URGSE..URZ100202305

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-38130i2URGSE..URZ100202305

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-38010i2URGSE..URZ100202305

9009900195

main90099-00195

9009900243

main90099-00243

9009904604

main90099-04604

9009905284

main90099-05284

9012610039

main90126-10039

9415180800

main94151-80800

9415181000

main94151-81000

19 parts on this diagram · 1 diagram in section
