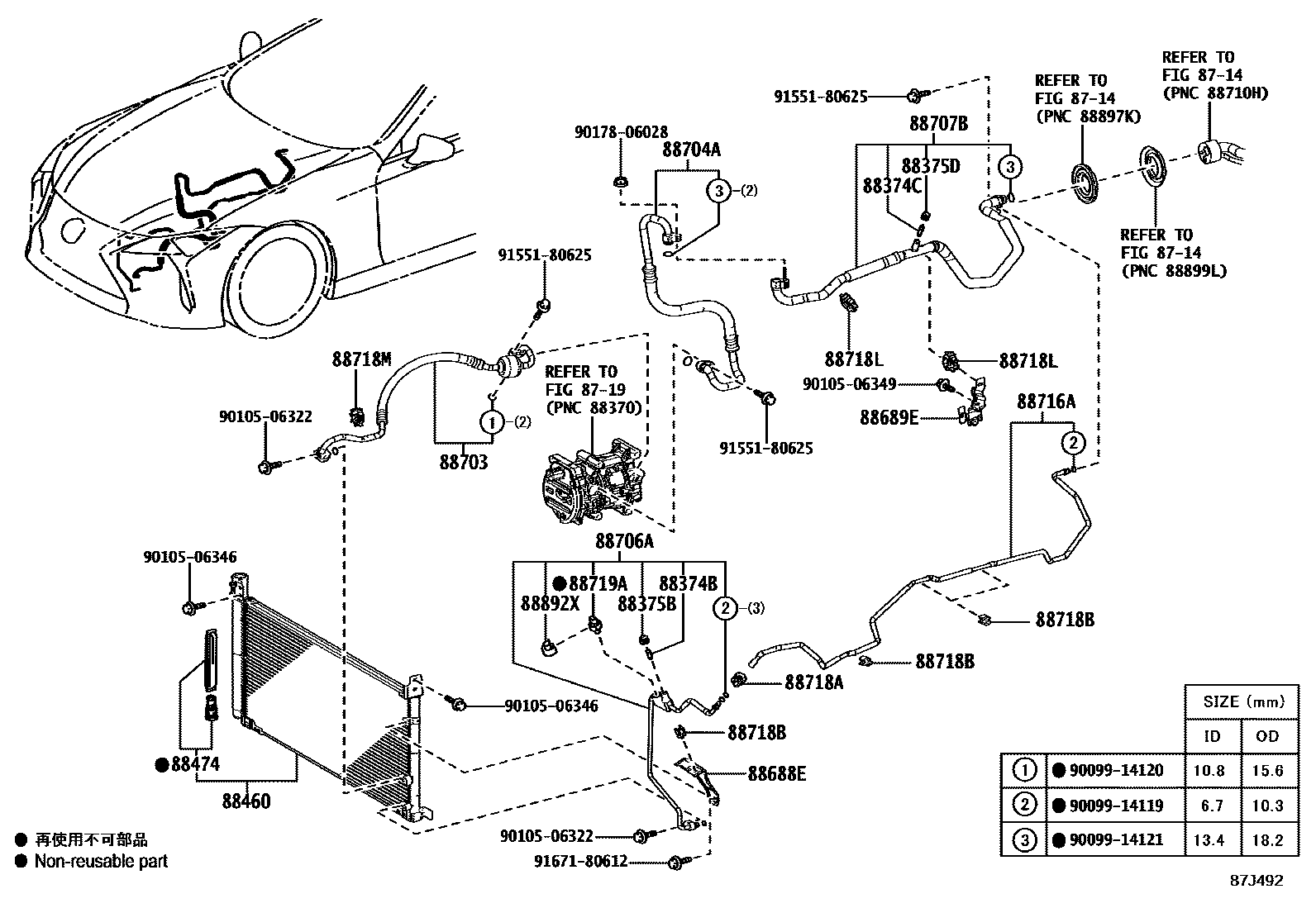

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iGWZ100,URZ100201701

88374CVALVE, SERVICE, NO.2

main88374-30010iGWZ100,URZ100201701

88375BCAP, SERVICE VALVE, NO.1

main88375-30280supersedes 88375-30320iGWZ100,URZ100201701

KOREA SPEC

88375DCAP, SERVICE VALVE, NO.2

main88375-30290supersedes 88375-30310iGWZ100,URZ100201701

KOREA SPEC

88460CONDENSER ASSY, COOLER

main884A0-11030iGWZ100201701

main884A0-11010supersedes 884A0-11020iURZ100201703

KOREA SPEC

88474DRYER, COOLER

main88474-47030iGWZ100,URZ100201701

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-11010iGWZ100,URZ100201701

88689EBRACKET, COOLER, NO.1

main88688-11030iURZ100201703

main88688-11040iGWZ100201701

88703HOSE SUB-ASSY, DISCHARGE

main88703-11010iURZ100201703-202004

main88703-11020iGWZ100201701

main88703-11030iURZ100202004

88704AHOSE SUB-ASSY, SUCTION, A

main88704-11010iURZ100201703-202004

main88704-11020iGWZ100201701

main88704-11030iURZ100202004

88706ATUBE SUB-ASSY, LIQUID, A

main88706-11010supersedes 88706-11030iGWZ100,URZ100201701

KOREA SPEC

88707BTUBE SUB-ASSY, SUCTION, B

main88707-11010supersedes 88707-11050iURZ100201703-202004

KOREA SPEC

main88707-11030supersedes 88707-11070iGWZ100201701

KOREA SPEC

main88707-11090supersedes 88707-11100iURZ100202004

KOREA SPEC

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-11010iURZ100201703

main88716-11030iGWZ100201701

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-2D150iGWZ100,URZ100201701

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-50390×4iGWZ100,URZ100201701

88718LCLAMP, PIPING

main88718-42110×2iGWZ100,URZ100201701

88718MCLAMP, PIPING

main88718-47090iGWZ100,URZ100201701

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iGWZ100,URZ100201701

88892XCOVER, COOLER, NO.2

main88892-50120iGWZ100,URZ100201701

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506322

main90105-06322

9010506346

main90105-06346

9010506349

main90105-06349

9017806028

main90178-06028

9155180625

main91551-80625

9167180612

main91671-80612

30 parts on this diagram · 4 diagrams in section
