HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

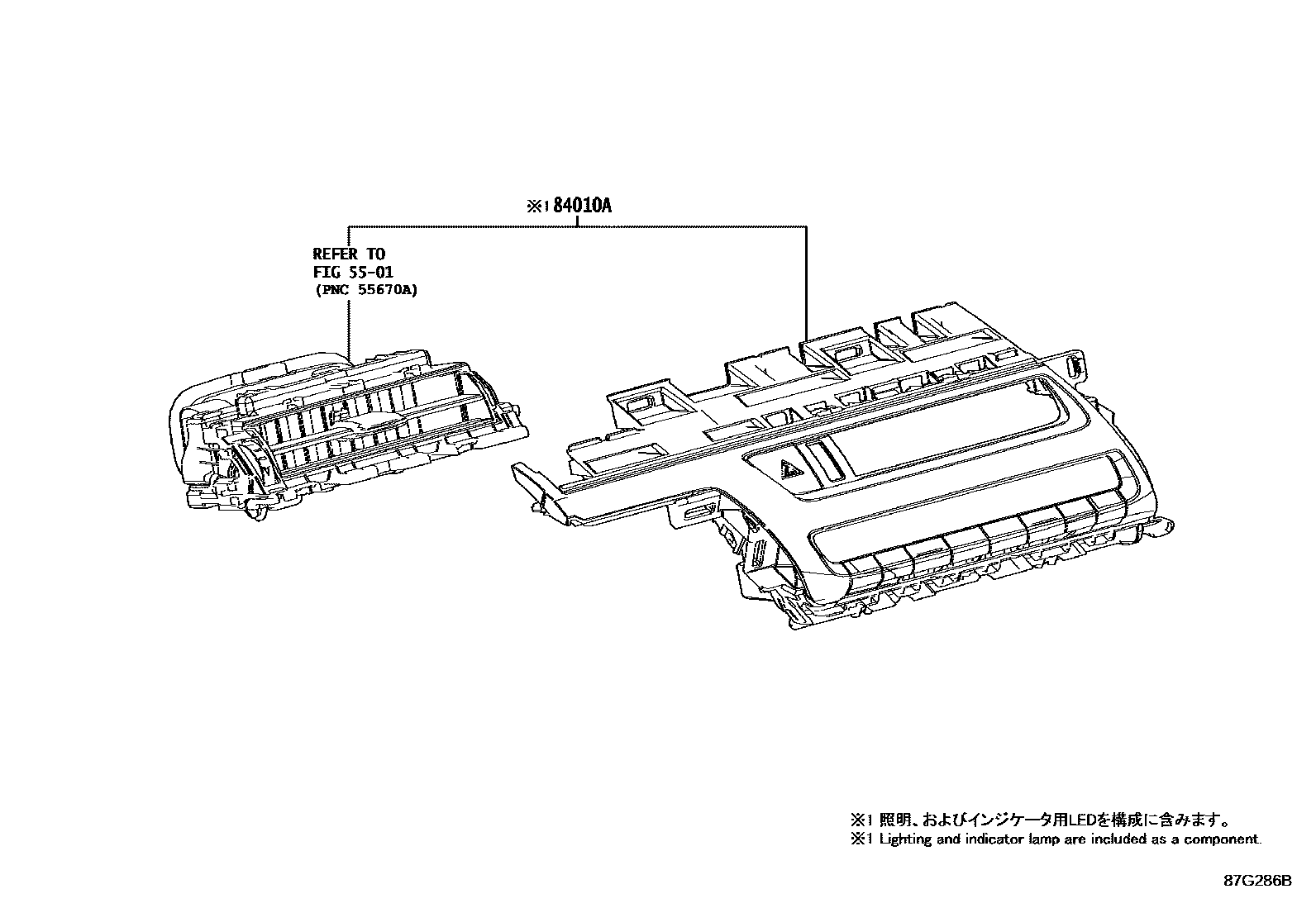

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-11060iGWZ100,URZ100201701

main84010-11050iGWZ100,URZ100201701-202111

KOREA SPEC&LANE CHANGE ASSIST-*BSM(LANE CHANGE ASSIST & *RCTA)

main84010-11090iGWZ100,URZ100202111

KOREA SPEC

2 parts on this diagram · 3 diagrams in section
