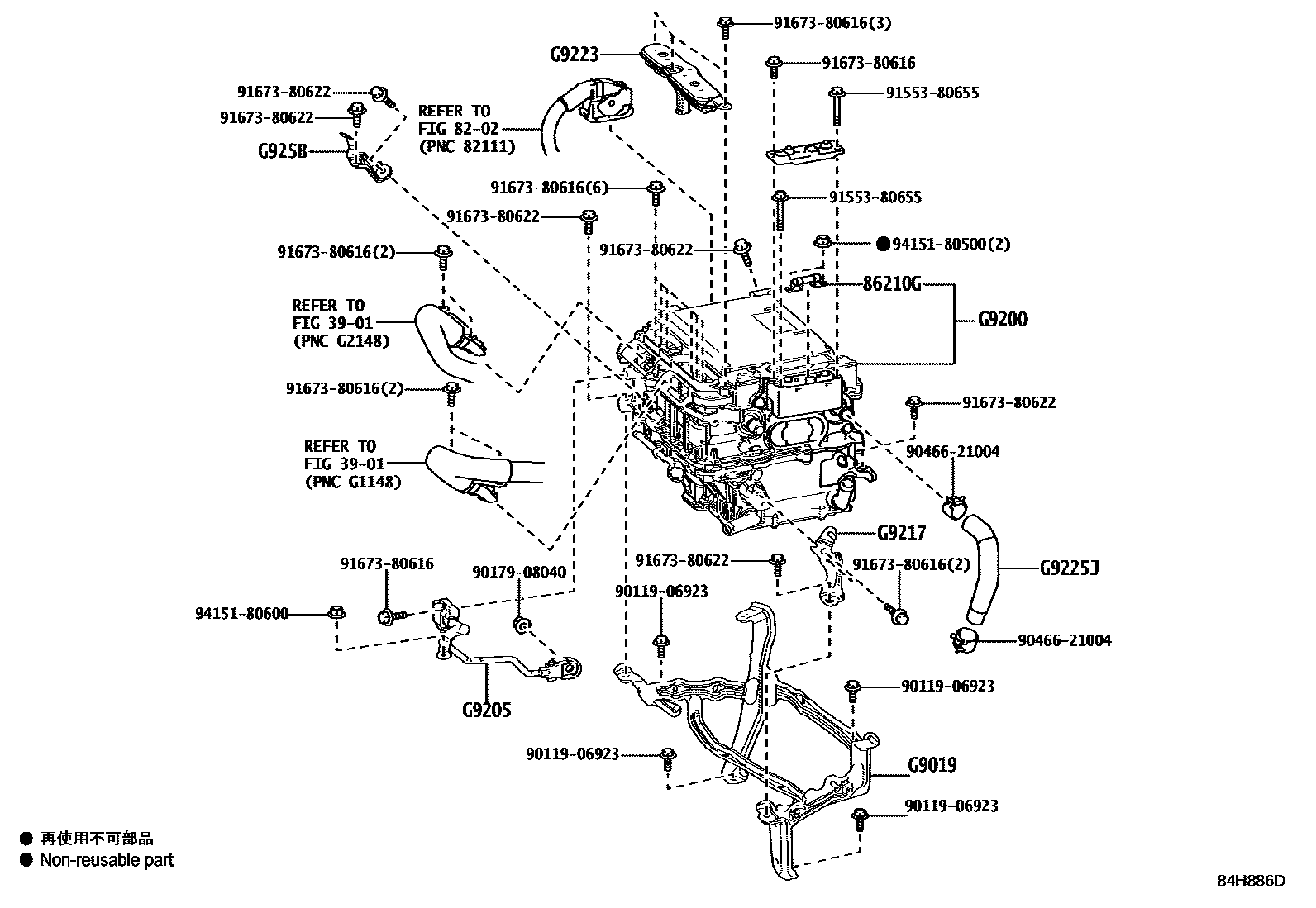

HEV INVERTER

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

86210GFUSE, HIGH VOLTAGE

main90982-11050iGWZ100201701

G9019BRACKET SUB-ASSY, INVERTER TRAY

mainG901911020iGWZ100201701-201709

mainG901911040iGWZ100201710

G9200INVERTER ASSY, W/CONVERTER

mainG92A011010iGWZ100201701-201704

mainG92A050010iGWZ100201705-202202

mainG92A050011iGWZ100202203-202211

mainG92A050012iGWZ100202212

G9205PLATE SUB-ASSY, INVERTER BUS-BAR

mainG920511010iGWZ100201701

G9217BRACKET, INVERTER, NO.4

mainG921730040iGWZ100201701

G9223COVER, INVERTER TERMINAL

mainG922311010iGWZ100201701

G9225JHOSE, INVERTER COOLING, NO.1

mainG922530210iGWZ100201701

G925BBRACKET, INVERTER, NO.6

mainG925B11020iGWZ100201701

9011906923

main90119-06923

9017908040

main90179-08040

9046621004

main90466-21004

9155380655

main91553-80655

9167380616

main91673-80616

9167380622

main91673-80622

9415180500

main94151-80500

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
