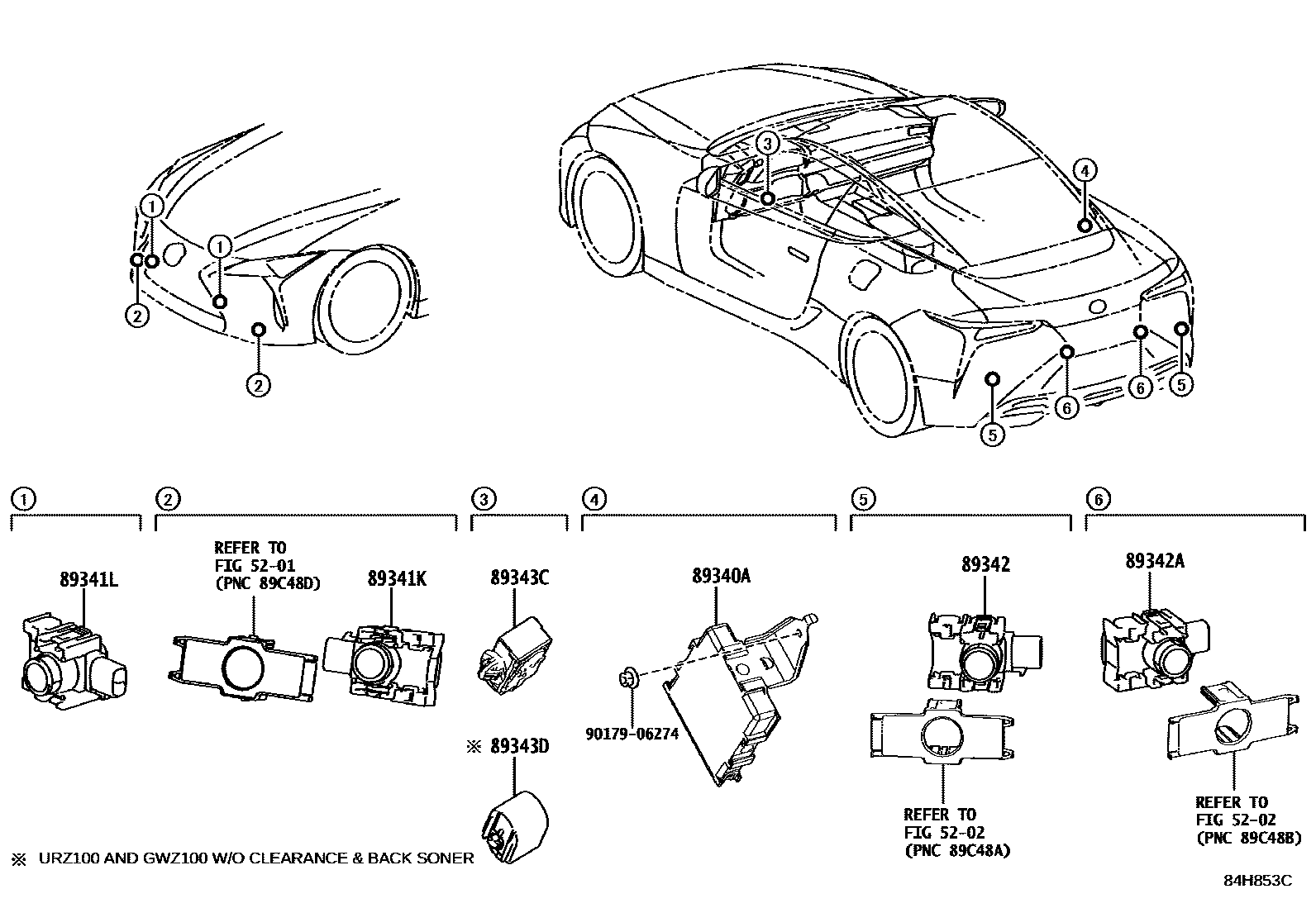

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341KSENSOR, ULTRASONIC, FRONT CORNER

89341LSENSOR, ULTRASONIC, FRONT CENTER

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-11010

89342ASENSOR, ULTRASONIC, REAR CENTER

89343CBUZZER, CLEARANCE WARNING, NO.1

89343DBUZZER, CLEARANCE WARNING, NO.2

main89343-50060iGWZ100201701-202111

9017906274

main90179-06274

10 parts on this diagram · 1 diagram in section
