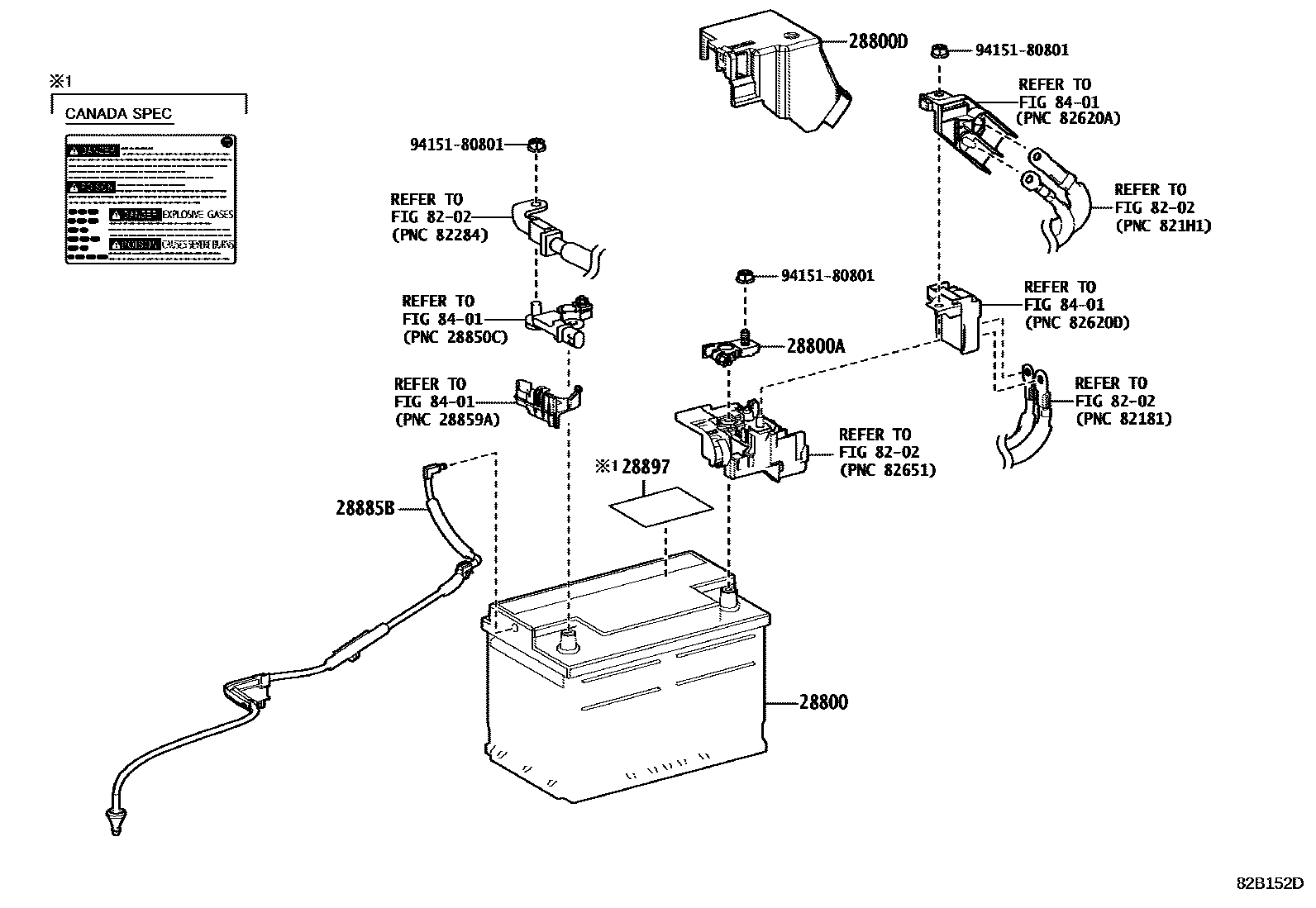

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31450i201701-202207

LN3

main28800-31451i202208-202302

LN3

LN3

main28800-38190i201703-202207

LN4,CANADA SPEC; LN4,CANADA SPEC&COLD AREA SPEC; LN4,COLD AREA SPEC; LN4,KOREA SPEC; LN4,KOREA SPEC&COLD AREA SPEC

main28800-38191i202208-202302

LN4,CANADA SPEC; LN4,CANADA SPEC&COLD AREA SPEC; LN4,COLD AREA SPEC; LN4,KOREA SPEC; LN4,KOREA SPEC&COLD AREA SPEC

LN4,CANADA SPEC; LN4,CANADA SPEC&COLD AREA SPEC; LN4,COLD AREA SPEC; LN4,KOREA SPEC; LN4,KOREA SPEC&COLD AREA SPEC

28800ATERMINAL, BATTERY POSITIVE

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

28885BHOSE, BATTERY

28897PLATE, BATTERY CAUTION

CANADA SPEC

8202WIRING & CLAMP

8401SWITCH & RELAY & COMPUTER

9415180801

8 parts on this diagram · 6 diagrams in section
